Overview

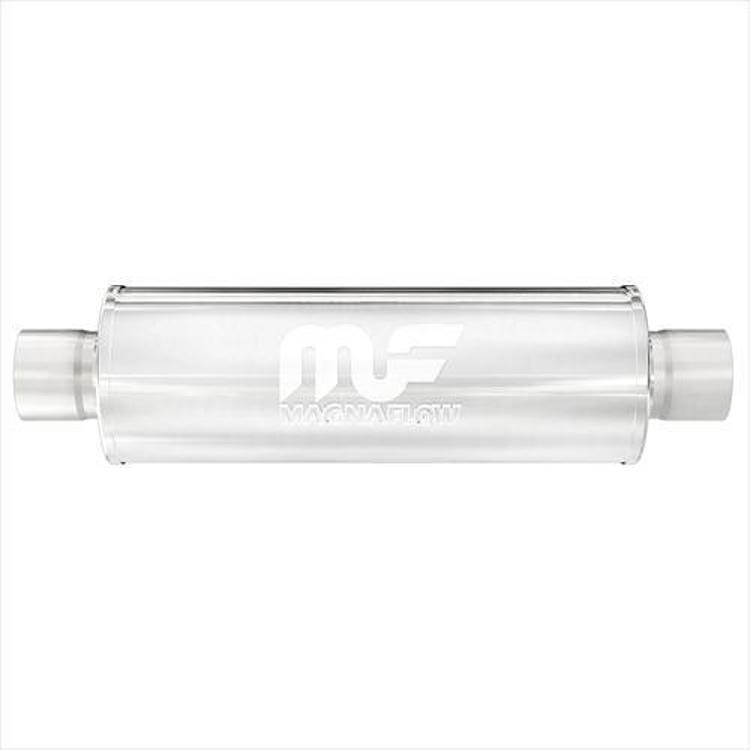

The MagnaFlow 12646 is a satin stainless steel muffler with 2.5-inch tubes and centered inlet and outlet locations. It is a straight-through design sold as universal fit.
The body is 100% stainless steel and lap-joint welded for solid construction. A perforated straight-through core, wrapped in stainless mesh and filled with acoustical fiber fill, is meant to keep the tone smooth and deep. MagnaFlow backs it with a Lifetime Warranty. No vehicle is named for this muffler, so the tube size and port layout must be compared against your exhaust.
Key features
- Centered inlet and outlet locations
- 2.5-inch inlet and outlet tubes
- Lap-joint welded, 100% stainless steel body
- Perforated straight-through core
- Acoustical fiber fill and stainless mesh wrap
Fitting a stainless muffler
Fitting a stainless muffler goes smoothly when the pipes are measured and supported first. Dry-fit the body and outlet before tightening clamps, and make sure the centered inlet and outlet sit without strain. Stainless resists rust, but dirt trapped between clamps and tubing can hold moisture against the metal, so clean those contact points before assembly.
Once the muffler is in place, check clearance around the frame, fuel lines and heat-sensitive parts. Tighten fasteners in an even sequence and recheck them after the first drives. A muffler that touches the body or frame can rattle or wear through its finish over time, so adjust the hangers if needed.
- Dry-fit before tightening
- Clean clamp contact points
- Recheck fasteners after the first drives
Specifications
| Brand | MagnaFlow Exhaust |
|---|---|
| Part number | 12646 |
| UPC | 841380001351 |
| Finish | Satin |
| Material | 100% stainless steel |
| Muffler type | Straight through |
| Inlet location | Centered |
| Outlet location | Centered |
| Tube size (inlet/outlet) | 2.5 inches / 2.5 inches |
| Fitment listing | Universal fit |
| Warranty | Lifetime |
Vehicle fitment
The 12646 is not matched to any year, make or model. Universal fit places the burden of matching on the 2.5-inch tubes and centered ports, which should be checked against the exhaust before it is installed.
Match your year, model and trim before you commit to the purchase.
What’s included
Look over the box for clamps, hangers and gaskets before starting the job.
