Overview

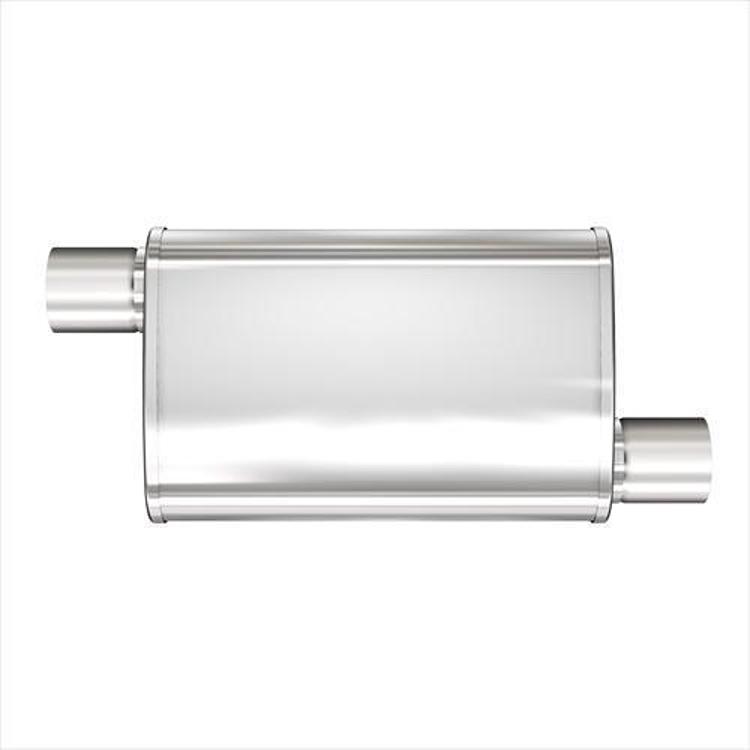

The MagnaFlow 13236 is a chambered XL 3 Chamber muffler with a 2.5-inch offset inlet and a 2.5-inch offset outlet. Its sound baffles and large diameter perforated core are built to reduce unwanted resonance. It is universal fit, so it is not tied to a specific vehicle.
Offset ports on both ends mean the layout depends on your pipe routing. The calibrated tuning gate openings let portions of the sound waves pass through, which shapes the tone, and the core avoids the flow restriction of a louvered design.
Key features
- Offset inlet and offset outlet
- 2.5-inch tube size on both ports
- Chambered design with internal sound baffles
- Large diameter perforated core
- Stainless steel body
Planning for offset ports
Offset ports change how a muffler sits in the exhaust run. When both the inlet and outlet are offset, the body has to be angled to meet the pipes on each side, so routing matters more than it would with centered ports. Test fit the pipes loosely before tightening, and confirm the muffler clears the floor pan, crossmember and any heat shields.
A chambered XL 3 Chamber design with a large perforated core is generally used to keep sound in a controlled range. Pairing it with a well-routed pipe run helps the tone stay consistent, so consider the full system rather than just the can. Stainless steel resists rust well, but the hangers and clamps should still be checked at regular intervals.
- Dry-fit the pipes before tightening clamps
- Check clearance to the floor pan and crossmember
- Inspect rubber hangers for cracks at each service
Specifications
| Brand | MagnaFlow Exhaust |
|---|---|
| Part number | 13236 |
| UPC | 841380001511 |
| Series | XL 3 Chamber |
| Muffler type | Chambered |
| Material | Stainless steel |
| Tube size, inlet and outlet | 2.5 inches and 2.5 inches |
| Inlet location | Offset |
| Outlet location | Offset |
Vehicle fitment
It is universal fit with no year, make, model or trim attached, so it is not vehicle-specific.
Both ports are offset, so check your pipe routing against the muffler before you install it.
What’s included
Check the package contents against your installation before starting.
Not included: Pipe and connecting parts are needed to complete the install, so have them ready before starting.
