LRG Rims Burst Series 117, 22x10 Wheel with 8x170 Bolt Pattern – Satin Black Machined – 11722070324N

Lrg Rims

Shop Lrg Rims Wheels 22x10 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • LRG Rims Burst Series 117 22×10, 8 on 170 bolt pattern
  • -24 offset, 4.5 inch backspacing, satin black machined
  • Aluminum, part number LRG11722070324N

Description

Overview

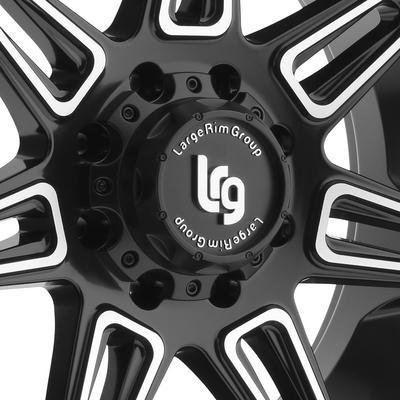

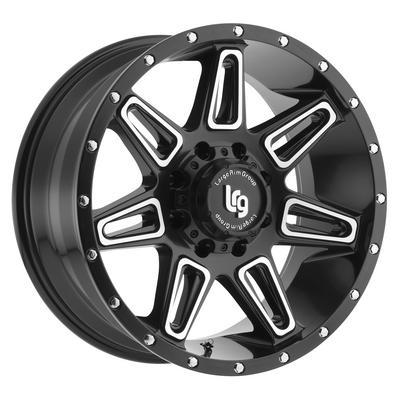

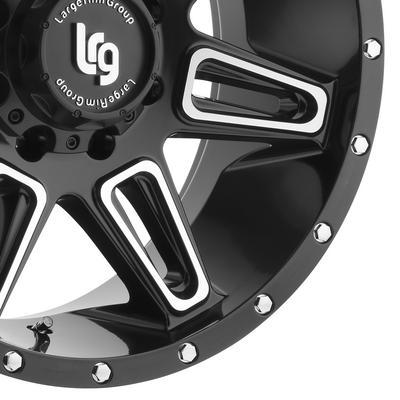

The LRG Rims Burst Series 117 in 22×10 is an aluminum wheel with an 8 on 170 bolt pattern, a -24 offset, 4.5 inch backspacing and a satin black machined finish, part number LRG11722070324N. The wheel measures 10 inches wide and 22 inches in diameter. LRG Rims markets the Burst line as a quality wheel with cutting edge styling.

The 8 on 170 bolt pattern is the one that separates this version from the 6 on 135 and 8 on 6.5 versions in the same series, so the bolt pattern is the first figure to check against the hub.

Truck and SUV hubs with an 8 on 170 pattern are a different fitting from the 6 on 135 or 8 on 6.5 versions, so the wheel should be matched to the hub before the offset is considered. The -24 offset and 4.5 inch backspacing then set the position of the wheel in the fender.

Key features

  • 8 on 170 bolt pattern.
  • 22 inch diameter and 10 inch width.
  • -24 offset with 4.5 inch backspacing.
  • Satin black machined finish.
  • Aluminum construction.

Matching hub and offset

An 8 on 170 wheel is designed for truck and SUV hubs that use that pattern, so the pattern is the first check before any other measurement. Offset and backspacing come next, because they set how far the wheel sits in the fender and how much room is left for brake parts. Wheel width and tire size should be chosen with those figures in mind.

Hub-centric fit matters on heavier vehicles, so confirm the center bore and mounting face suit the hub before fitting. Lug nuts should match the seat type of the wheel, and torque should be checked after the first drive. Tire pressure and load rating should also be checked against what the vehicle carries.

  • Confirm the 8 on 170 pattern against the hub
  • Check brake caliper clearance behind the wheel
  • Recheck lug torque after the first short drive

Specifications

Brand LRG Rims
Part number LRG11722070324N
Series 117 Series Burst
Diameter 22 inches
Width 10 inches
Offset -24
Backspacing 4.5 inches
Bolt pattern 8 on 170
Finish Satin black machined
Construction Aluminum

Vehicle fitment

No vehicle is named for this wheel. Check that the 8 on 170 bolt pattern and 22 inch diameter match your vehicle’s hub before ordering.

Confirm your vehicle’s year, model and trim before ordering, and check tire and fender clearance for a 22 inch wheel.

What’s included

One wheel. Check lug hardware and center caps for fit before mounting.

SKU: LRG11722070324N Categories: ,

Questions & Answers

Does the Burst 117 22x10 fit an 8 on 170 truck?

It is an 8 on 170 wheel, so it suits only hubs with that pattern. Confirm the hub on your truck matches before ordering, and check fit against your vehicle's year, model and trim.

What offset is this wheel?

It has a -24 offset and 4.5 inch backspacing, which together set how far the wheel sits in the fender and how much clearance it has behind the face.

What material is it?

It is aluminum with a satin black machined finish, part number LRG11722070324N. Check the hub bore and lug seat against your vehicle before fitting, since those decide whether it mounts properly.

Do wheel spacers change the fit?

Spacers move the wheel outward, which changes clearance at the fender and brake parts. They also add load to the wheel studs, so check the required length and fit carefully before using them with this wheel.
