Overview

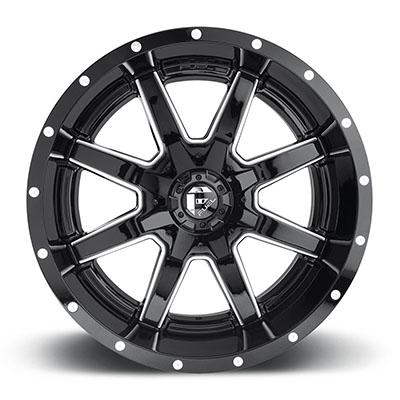

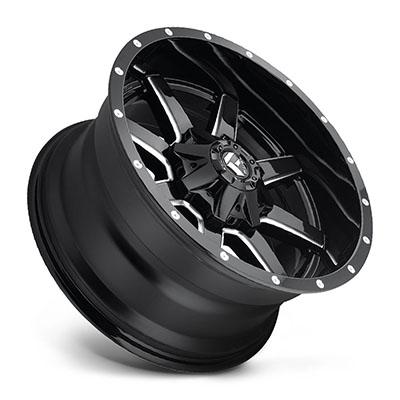

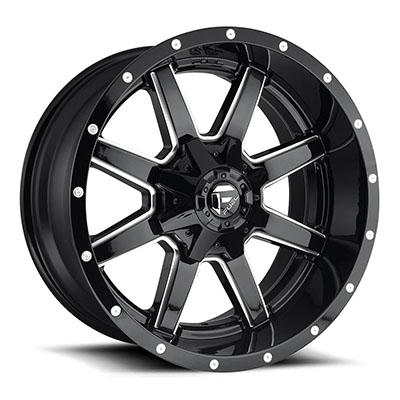

The FUEL Off-Road Maverick D610 is a 20×9 aluminum spoke wheel with a black milled finish, part number MHTD61020907057. It has two bolt patterns, 5 on 5.5 and 5 on 150, a 20 offset and 5.8 backspacing.
Its 9-inch width and 110 center bore should be compared with your hub and planned tire size before mounting. It is built for trucks and SUVs.
Key features
- Black milled finish on the face
- 20-inch diameter and 9-inch width
- Two listed bolt patterns: 5 on 5.5 and 5 on 150
- Offset of 20 and backspacing of 5.8
- 110 center bore
- Spoke style in aluminum
Choosing a wheel for a build
Spoke wheels leave gaps that can trap mud, salt and grit, so rinse the spokes after trail or road use. The face and the spaces behind the spokes both need attention when cleaning. Look for cracks at the spoke joins and around the center section after heavy impacts, since those areas carry the load of the tire.
Changing tire size or wheel width can alter rubbing at full steering lock and over bumps. Before buying, measure the space between the brake caliper and the inner face, and confirm the tire will clear the fenders when the suspension is compressed. Clean the hub face and seats before mounting, since debris can throw off the wheel’s position.
- Check brake caliper clearance behind the spokes
- Test tire rub at full steering lock
- Clean the hub face before mounting
- Recheck lug torque after the first drives
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD61020907057 |
| Model | Maverick D610 |
| Diameter | 20 inches |
| Width | 9 inches |
| Bolt pattern | 5 on 5.5 and 5 on 150 |
| Center bore | 110 |
| Offset | 20 |
| Backspacing | 5.8 |
| Style | Spoke |
| Finish | Black milled |
| Construction | Aluminum |
Vehicle fitment
The wheel is a universal fit design, so it is not matched to a specific vehicle. Match the 5 on 5.5 or 5 on 150 bolt pattern, the 20 offset and the 110 center bore to your hub before mounting.
Hubs with a different bolt pattern cannot use this wheel. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the 5.8 backspacing leaves room for your brake calipers and suspension at your ride height, since a wheel that clears one vehicle may not clear another.
What’s included
The wheel is the only item in this package. Plan to buy tires, lug nuts and center caps separately.
Not included: tires, lug nuts and center caps.
