Overview
The KC HiLites Gravity G4 LED Fog Light System (Clear), part number 506, is a street legal 4-inch LED fog light pair. It fits the 2020-2026 Jeep Gladiator Overland and Rubicon, and the pair comes with factory wire connectors and a bracket for mounting.
KC’s Gravity Reflective Diode technology aims the LEDs into precision reflectors. The lights deliver 150 lux at 10 meters while drawing less than one amp per light. The low, wide fog beam is designed to improve short range visibility in dust, fog, snow and rain.
Key features
- 4-inch Gravity LED fog lights with CREE LEDs
- Patented Gravity Reflective Diode technology with precision reflectors
- Low, wide fog beam for short range visibility
- Adjustable mount for horizontal aiming
- IP69 rated magnesium housing with a polycarbonate lens
- Factory wire connectors and bracket included
Choosing a fog light mount
Fog lights with an adjustable mount let you set the horizontal aim independently of the bumper angle, which is useful when the bumper sits off level or the vehicle carries a load. Set both lights to the same height and angle so the beams overlap in a matched pattern rather than pointing in different directions.
Adjustable mounts also need periodic checks. Vibration on rough trails can loosen the pivot, so inspect the lock nuts and the bracket welds after each trip. Pairing a clear lens with a protective cover can help on rocky terrain, and keeping the lens clean preserves the fog beam’s spread.
- Tighten pivot locks after rough trail use
- Inspect the bracket welds for cracks
- Keep a spare lens cover for rocky trails
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | 506 |
| Size | 4-inch |
| Light type | LED |
| Beam pattern | Fog |
| Output | 150 lux at 10 meters |
| Current | Less than one amp per light |
| Housing | Magnesium with polycarbonate lens |
| Rating | IP69 |
| Included | Pair, factory wire connectors and bracket |
Vehicle fitment
It fits the 2020-2026 Jeep Gladiator Overland and Rubicon only. Confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering, especially if you have a Wrangler JL, which is not in the fit list.
Installation notes

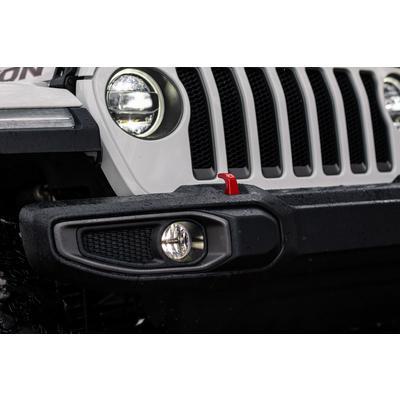

The bracket bolts to the bumper and fog light harness, and the adjustable mount lets you aim each light horizontally. Check the aim after tightening the bracket and before a night drive.
What’s included

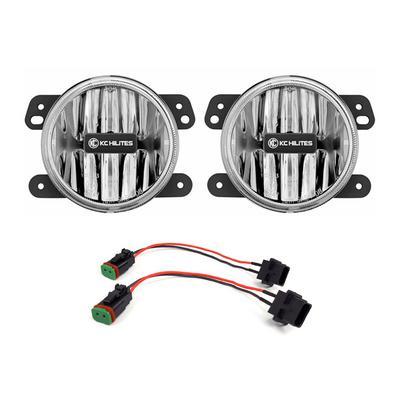

A pair of Gravity G4 fog lights with factory wire connectors and mounting bracket.
