Overview

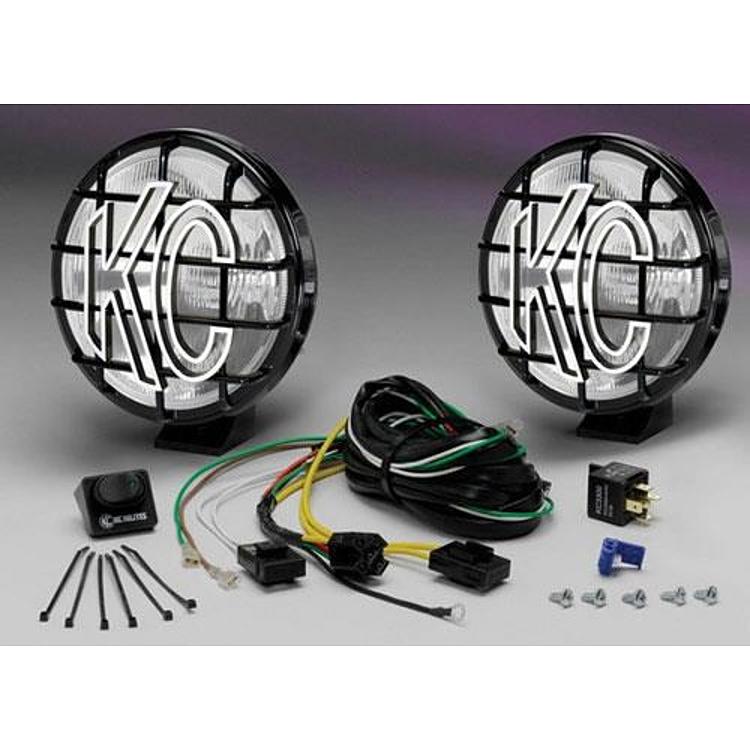

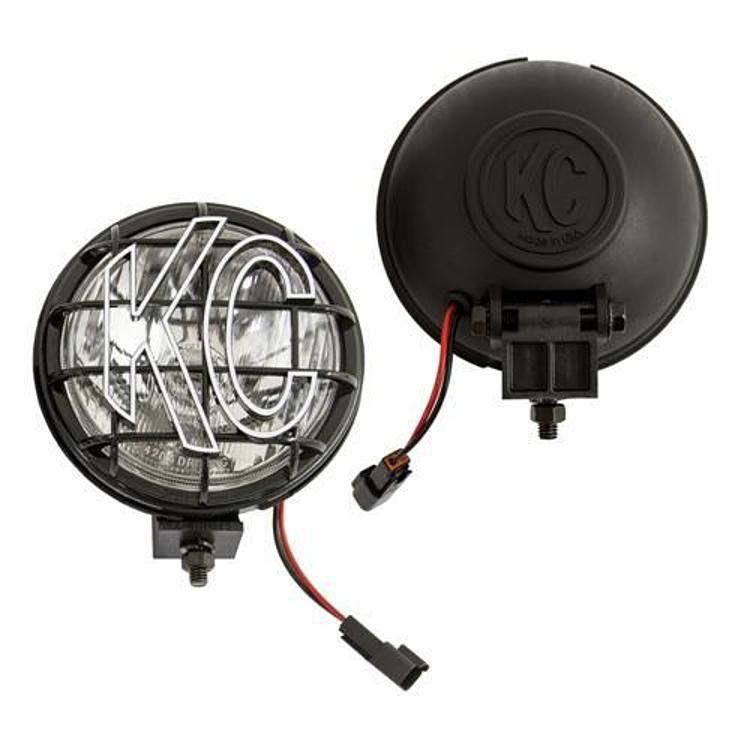

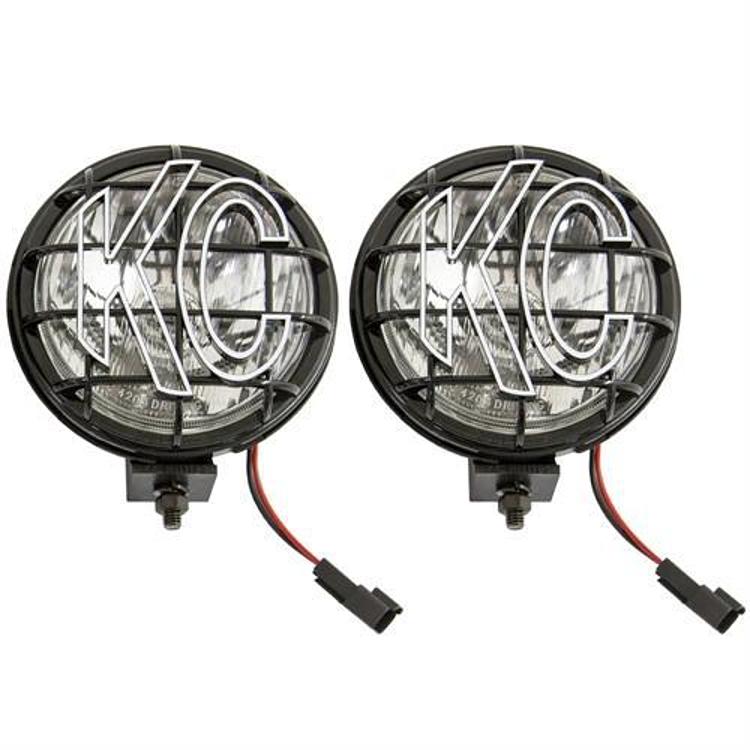

The KC HiLites 6 Inch Apollo Pro Series Driving Light Kit, part number 151, is a pair of 6-inch round driving lights with a clear glass lens. The Apollo Pro is a driving-beam light built around an optical-quality glass lens, polished reflectors and a replaceable halogen bulb.

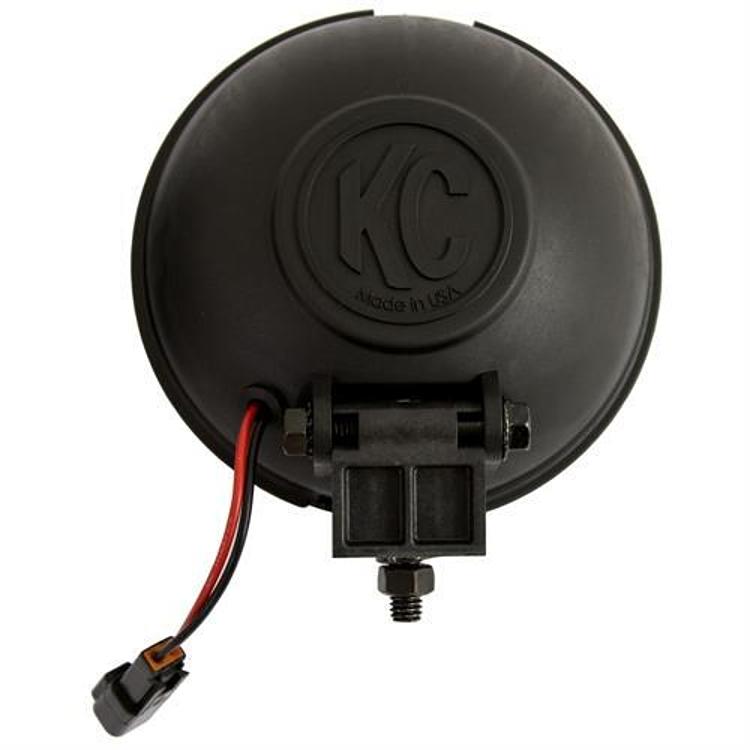

The Apollo housing is a black Polymax design with a flat profile, made in the USA. The two-axis mount makes aiming easy, and the kit carries a 100 watt rating. The Apollo is offered in 6-inch or 5-inch round sizes, with Long Range, Driving, Fog or Flood beam patterns.
Key features

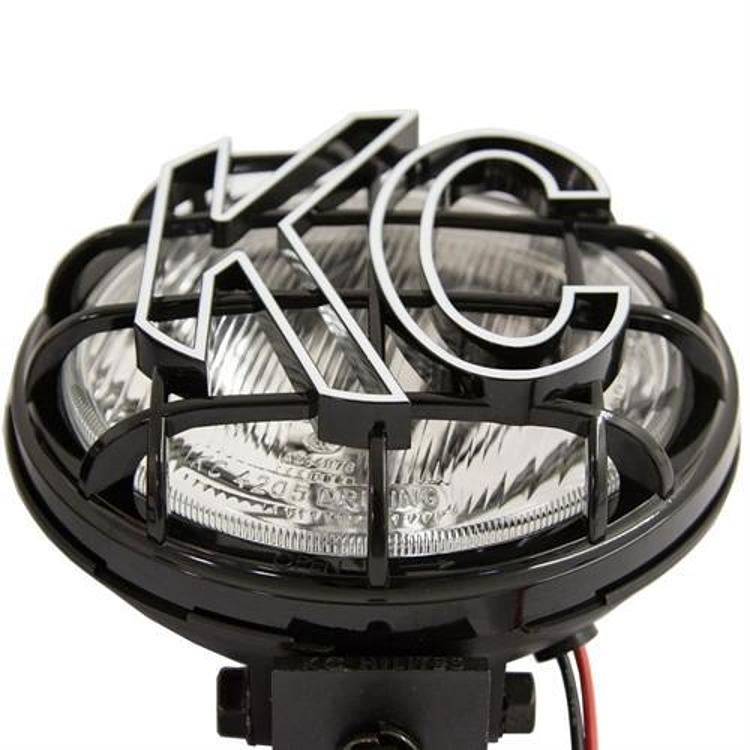

- 6-inch round housing with a flat profile
- Optical-quality glass lens
- Replaceable 55 W halogen bulb
- Polished reflectors for a focused beam
- Black Polymax housing, made in the USA

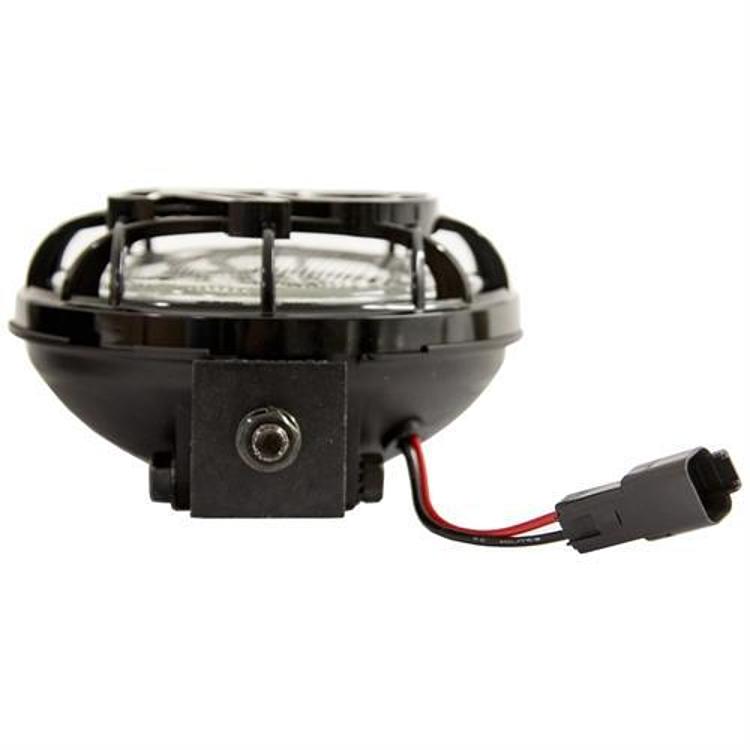

- Two-axis mount for aiming

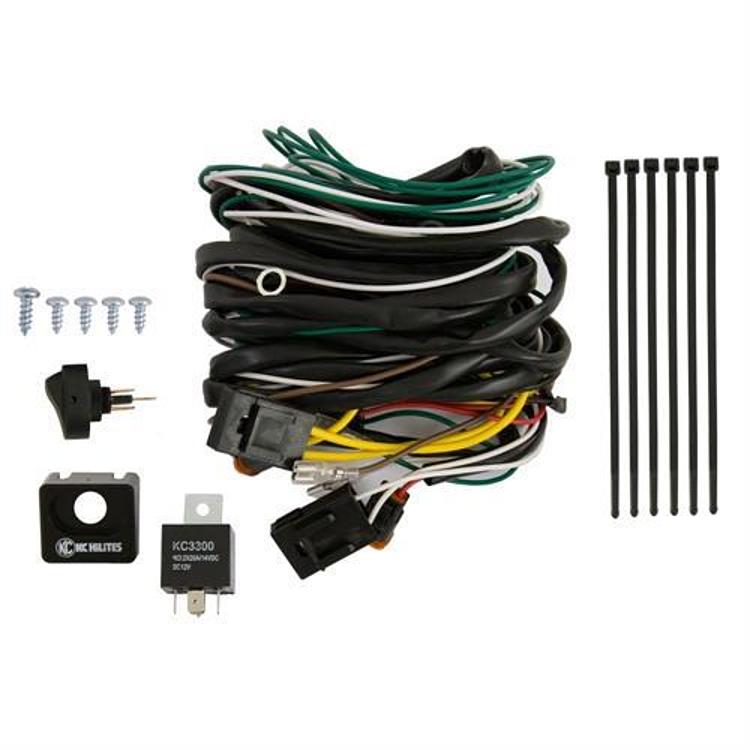

Halogen wiring and relays
Halogen lamps draw considerably more current than LED lights, so the wiring has to be sized for that load. A relay placed close to the battery takes the strain off the switch, and a fuse at the power source protects the run if a wire is pinched. Keep the connections dry and tight, since a loose terminal under load will heat up quickly.
The replaceable bulb is one of the parts that will wear over time. Handle the glass envelope only by its base, because skin oil on the quartz can shorten the bulb life. Keep spare bulbs on hand for trips where a failed lamp would leave the vehicle without a second light.
- Use a relay close to the battery
- Handle halogen bulbs by the base only
- Keep a spare bulb for long trips
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | 151 |
| UPC | 84709001513 |
| Series | Apollo Pro |
| Light type | Halogen driving light, sold as a pair |
| Light shape | Round, 6 inch |
| Lens | Clear, optical-quality glass |
| Housing | Black Polymax |
| Bulb | Replaceable 55 W halogen |
| Kit wattage | 100 W |
| Beam pattern | Driving |
| Mounting | Two-axis stem mount |
Vehicle fitment
The kit is a universal design rather than one built for a single model. The two-axis mount lets you aim each lamp, and placement depends on the bar, bumper or roof the lights are fitted to. Confirm fit for your vehicle’s year, model and trim before mounting.
Installation notes
Set the aim with the two-axis mount once the lights are fixed in place. Wire the pair through a fused circuit and relay, since halogen lamps draw more current than LED lights. Check local rules on driving lights before using them on a road vehicle.
What’s included
The kit is sold as a pair of 6-inch driving lights with their mounts. The wiring harness and switch are not part of the kit, so plan the wiring before starting.
