Overview
The KC HiLites 5 Inch Apollo Pro Series Driving Light Kit, part number 451, is a pair of 5-inch round driving lights with a clear glass lens. The Apollo housing is a black Polymax body with a sleek, flat profile.
The Apollo uses an optical-quality glass lens, a replaceable 55w halogen bulb and polished reflectors that combine to produce a bright, focused beam. The two-axis mount allows easy aiming. The Apollo Pro also comes in a 6-inch round size with Long Range, Driving, Fog or Flood patterns.
Key features
- 5-inch round housing
- Optical-quality glass lens
- Replaceable 55w halogen bulb
- Polished reflectors
- Black Polymax housing, made in the USA.
- Two-axis mount for easy aiming
Aiming and wiring the pair
Aiming a pair of driving lights makes a large difference in how far the beam reaches. Set both lights level and matched, then adjust the two-axis mounts so the hotspot lands ahead of the vehicle rather than in the sky. Recheck the aim after the first few trips, since bumps can move the mounts.
Halogen bulbs draw more current than LED lights, so a relay and a fused circuit are a sensible part of the setup. Route the cables away from heat and moving parts, and use grommets where they pass through sheet metal.
The Apollo housing resists dust and rock strikes, but the lens still needs care. Clean it with mild soap and water and check the bracket fittings after rough trails. A loose bracket is a common cause of a beam that drifts out of aim.
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | 451 |
| UPC | 84709004514 |
| Series | Apollo Pro |
| Light type | Halogen driving light, sold as a pair |
| Light shape | Round, 5 inch |
| Lens | Clear, optical-quality glass |
| Housing | Black Polymax |
| Bulb | Replaceable 55w halogen |
| Beam pattern | Driving |
| Mounting | Bracket kit |
Vehicle fitment
It is a universal fit, so it is not built for one vehicle. The two-axis mount lets the owner set the aim, and the placement on the bar, bumper or roof is up to the owner.
Installation notes
Fit the bracket to a solid surface and set the aim with the two-axis mount. Halogen bulbs draw more current than LED lights, so wire the pair through a relay and a fused circuit. Check local rules on driving lights before using them on a road vehicle.
What’s included

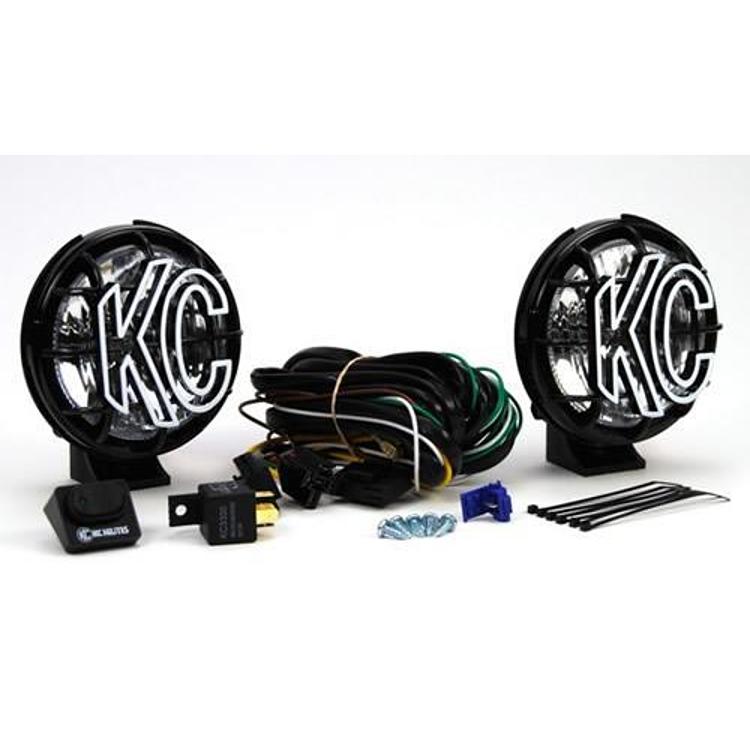

The kit is a pair of 5-inch driving lights with their bracket kit. Check the wiring requirements against your installation before starting.
