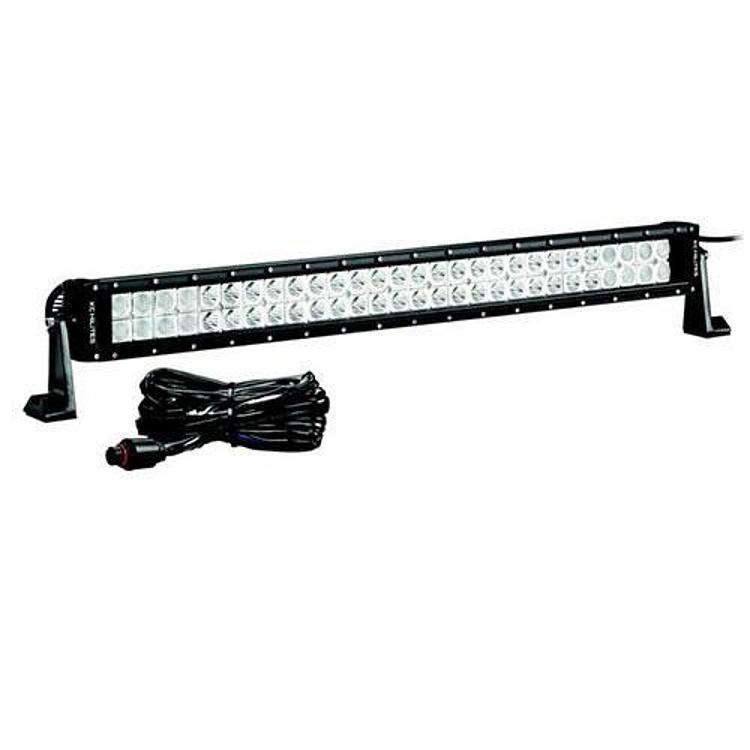

KC HiLites 30 Inch LED Spot Light Bar – 336

KC HiLites

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 30-inch rectangular LED spot light bar
  • 168 watts with a C30 LED array
  • Clear lens in a black housing
  • Harness included and sold as a single light

Description

Overview

The KC HiLites 30 Inch LED Spot Light Bar, part number 336, is a 30-inch rectangular light bar with a clear lens and a black housing. It is a single light that includes a harness and runs at 168 watts through its C30 LED array.

The bar belongs to KC’s LED Series, which is built around a C30 LED array. It is rated for up to 50,000 hours of life and has a sealed design intended to resist dust, water, shock and vibration. The light distribution is designed to be even across the beam.

Key features

  • 30-inch rectangular housing
  • Spot light bar with a clear lens
  • 168 watts
  • Black housing
  • C30 LED array
  • Harness included

Wiring a high-draw bar

A 168-watt bar draws far more current than small auxiliary lights, so the wiring decides how reliable it is. Use a relay close to the power source, and size the fuse to the load so the cable is protected if the bar is shorted or the harness is pinched.

Mounting location affects both the beam and the stress on the bracket. A bar on a bull bar or roof rack sees more vibration than one on a stable bumper plate, so use all the fixing bolts and check them after the first few drives.

Look for cracked lenses, loose brackets and chafed cables after off-road use. Clean the lens with mild soap and water, since mud film cuts the output of a spot bar.

Specifications

Brand KC HiLites
Part number 336
UPC 84709003364
Series LED Series, C30
Light type LED spot light bar, sold as a single light
Size 30 inch
Light shape Rectangular
Power 168 watts
Lens color Clear
Housing Black
Mounting Bracket
Rated life Up to 50,000 hours

Vehicle fitment

It is a universal fit, so it is not built for one vehicle. A bar this length needs a bracket spot with room on the bumper, bar or roof, and the owner chooses that spot for each vehicle.

Installation notes

Because the bar draws 168 watts, wire it with a relay and a fused circuit sized for that load. Use the included harness, keep the cable clear of heat and moving parts, and check local rules on driving lights before using the bar on a road vehicle.

What’s included

The package holds one 30-inch light bar and its harness.

SKU: K/C336 Category:

Specification

Shipping weight 15.00 lbs
Package dimensions 32.00 × 6.50 × 6.50 in
brands

Questions & Answers

Is the KC HiLites 30-inch bar 336 a spot or flood light?

It is a spot light bar with a clear lens and a 30-inch rectangular housing. It is sold as a single light.

How much power does the KC 30-inch LED spot bar use?

KC lists 168 watts for the bar, so it should be wired through a relay and a fused circuit sized for that load before it is used.

Does the KC 30-inch bar come with a harness?

Yes. The bar includes a harness, so it can be connected to the vehicle's power without a separate harness. Confirm the harness fits your wiring plan before starting.

What should I check before the first trail run?

Confirm the relay and fuse are installed, the cable is routed away from moving parts and heat, and the bracket bolts are tight. A quick check at the start of a trip catches most loose or pinched connections.

Can the bar be run with other lights on the same switch?

It can, but add the bar's full draw to the other lights before choosing a switch or relay. Running everything through one relay keeps the switch from overheating and keeps the bar's load protected.
