Overview

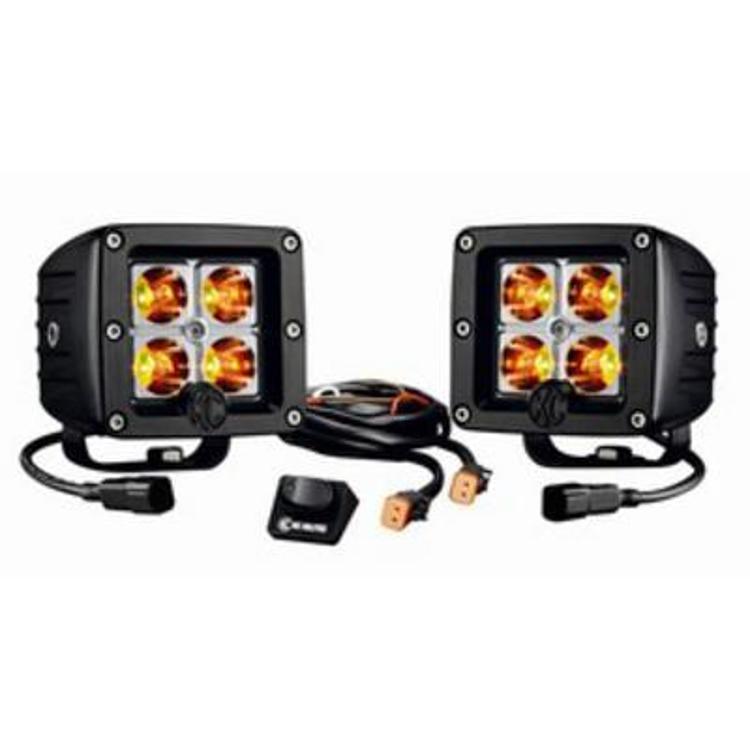

The KC HiLites 3 Inch C-Series C3 LED System, model 315, is a pair of 3 inch square 12 W LED lights with an amber lens and a 12 degree spot beam, universal fit. Each light uses bright CREE LEDs inside a die-cast aluminum housing with a Lexan lens, and the system comes with the brackets and wiring harness needed to mount them. It suits spot lighting where a focused beam is needed.
Key features
- 12 degree spot optics
- 1,080 raw lumens per light
- On-board thermal management for light efficiency
- Impact resistant die-cast aluminum housing
- Durable Lexan lens in amber
- Complete wiring harness and die-cast mounting brackets
Amber lenses and spot work
An amber lens filters the output toward a warmer color, which many drivers choose for a distinct look or for certain work. It is a choice of color rather than a change in throw, so the 12-degree spot pattern stays the same. It suits spot work where a focused beam is needed and the color should stand out. Check local rules on colored auxiliary lights before mounting.
Spot optics reward careful aiming. Set the pair on level ground, then aim the lights down the trail so the hotspot lands where the track bends. Test the spot at dusk on the actual mounting position before fixing the brackets, since the hotspot can land higher than expected.
Small LED housings rarely fail from the LEDs themselves. Water past the lens seal or a corroded connector is more common, so check the seal and harness plugs at the start of each season.
Specifications
| Brand | KC HiLites |
|---|---|
| Light series | C-Series C3, 3 inch |
| Light shape | Square |
| Lens color | Amber |
| Bulb type | LED, 12 W per light (CREE) |
| Raw lumens | 1,080 lm per light |
| Beam pattern | Spot, 12 degree optics |
| Housing | Die-cast aluminum |
| Lens | Lexan |
| Mounting | Bracket kit with hardware |
| Included | Pair of C3 lights, deluxe wiring harness, brackets |
Vehicle fitment
It is a universal fit, so it is not made for one vehicle. The die-cast brackets allow you to choose the mount location, so confirm placement and clearance on your vehicle before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The wiring harness and brackets are included, so this is a bolt-on system. Run the harness through a fused relay, and check local rules on amber and auxiliary lights before using them on public roads.
What’s included
A pair of 3 inch C3 LED lights with amber lenses, a deluxe wiring harness and die-cast mounting brackets with hardware.
