Overview
The KC HiLites 234 is a pair of 6-inch Daylighter halogen driving lights with a spread beam pattern, supplied with a relay wiring harness and switch.
KC HiLites describes its classic 6-inch Daylighter Halogen lights as having 100W bulbs in a spread pattern, a shock-mounted black steel housing, parabolic reflectors and a tempered glass lens. A spread beam gives a balanced, wider beam that increases peripheral visibility along with improved forward range.
The system includes a complete relay wiring harness, a switch kit and light covers. Output is up to 1,717 lx at 10 meters, with a beam distance of 829 meters.
Confirm the mounting dimensions and wire gauge against your bumper or brush guard before installing.
Key features
- Pair of 100W 6-inch round halogen lights
- Spread beam pattern for wider peripheral visibility

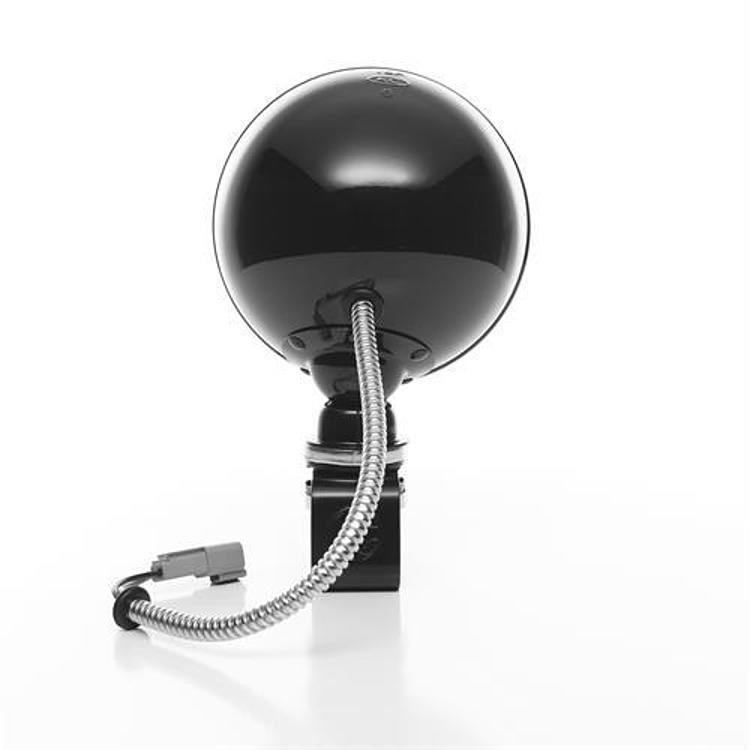

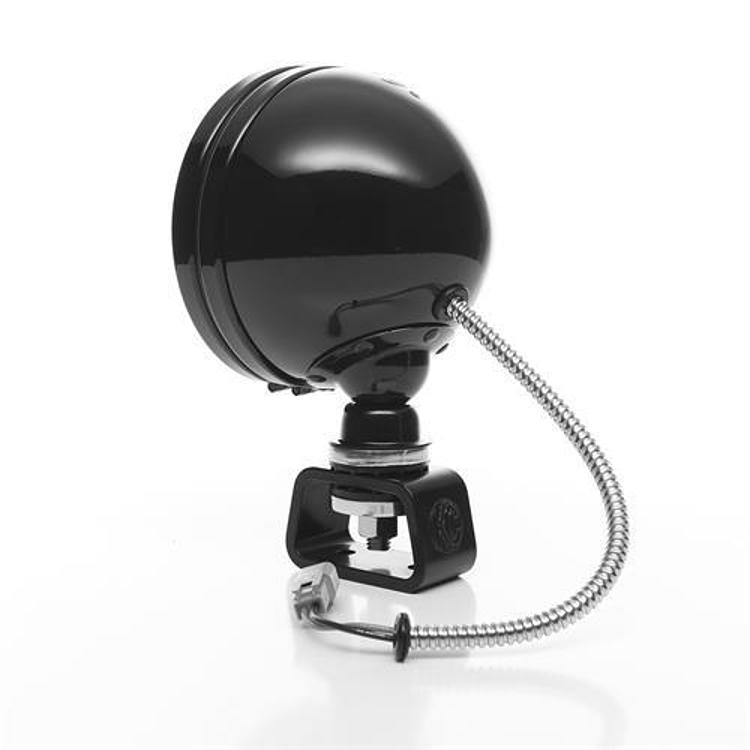

- Black steel housing with shock-mount system

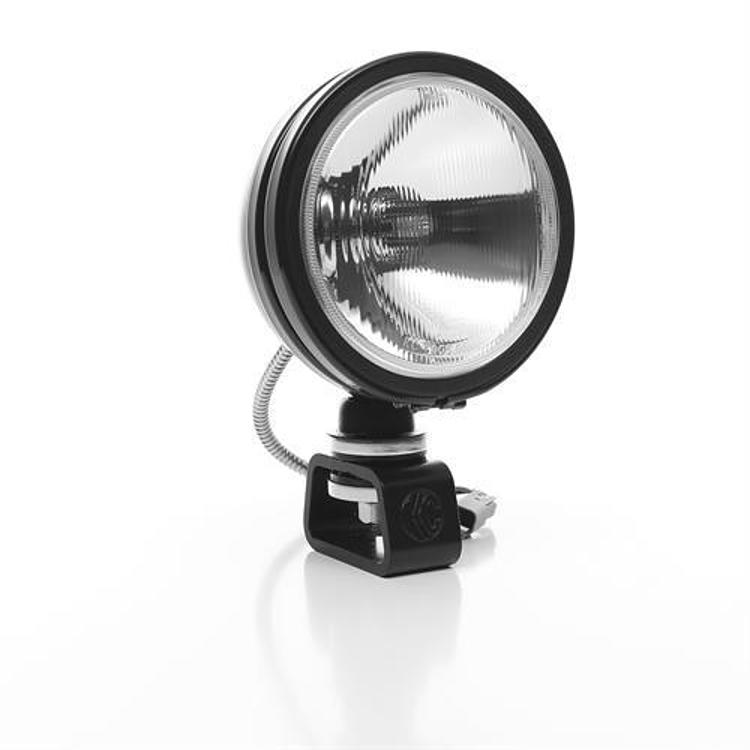

- Tempered glass lens with parabolic reflectors
- H3 halogen bulbs
- Plug-n-play wiring harness with 30 amp LED switch
- Pair of protective light covers
Planning the wiring run
Auxiliary lights draw a lot of current, so the path from battery to switch matters. A relay keeps that load away from the switch and the factory circuit, and a fuse protects the wiring if something shorts. Route the harness away from moving parts, hot exhaust components and sharp edges, and secure it with clips.
Aim matters as much as wiring. Lights set too high throw glare toward oncoming drivers, while lights set too low waste range on open trail. Level the lights, mark the aim on the bracket once it looks right, and recheck after the first few drives since bumps can knock them out of position.
- Fit the switch somewhere easy to reach from the driver’s seat
- Ground each light to clean bare metal
- Check the lights after every long washboard stretch
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | 234 |
| UPC | 84709002343 |
| Product type | Driving light system |
| Bulb type | Halogen (H3) |
| Power | 100W per light |
| Size | 6 inch |
| Beam pattern | Spread |
| Lens | Tempered glass, clear |
| Housing | Black steel, round |
| Mounting | Bracket kit |
| Raw lumens | 2,452 lm |
| Lux at 10 meters (spread) | 1,717 lx |
| Candela (spread) | 171,675 cd |
| Beam distance (spread) | 829 m |
| Switch | 30 amp LED switch |
Vehicle fitment
The KC HiLites 234 is an auxiliary lighting kit that is not vehicle-specific. Check the available mounting space and bracket compatibility for your vehicle before ordering.
Mounting location and bracket compatibility vary by vehicle. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
- Mount the lights securely and aim them so the beam is set for your use.
- Wire and fuse the lights as the manufacturer directs, and disconnect the battery before connecting wiring.
- Check local regulations on auxiliary and fog lighting before use on public roads.

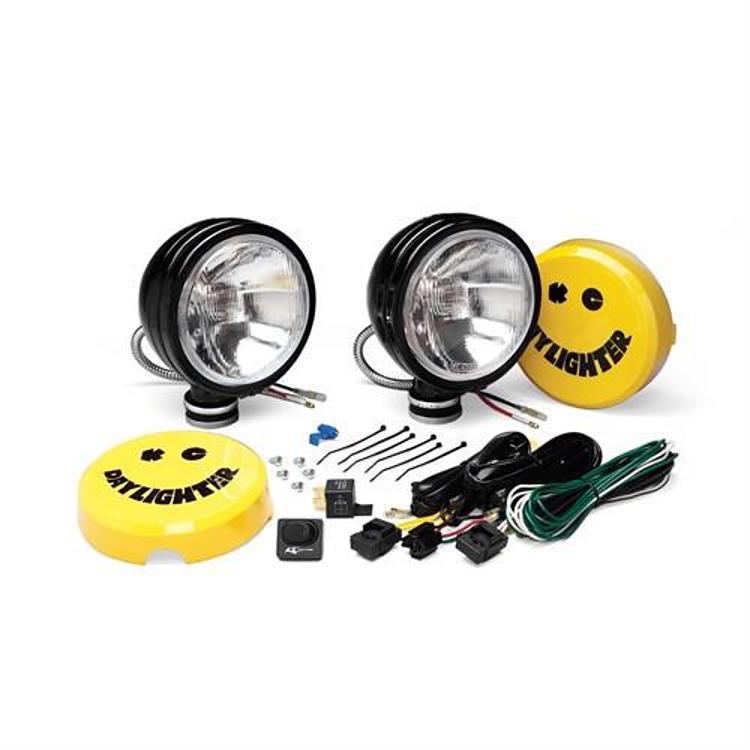

What’s included
- Pair of 100W 6-inch Daylighter halogen lights
- Complete relay wiring harness
- Switch kit with 30 amp LED switch
- Pair of protective light covers
- Mounting bracket kit
