Overview

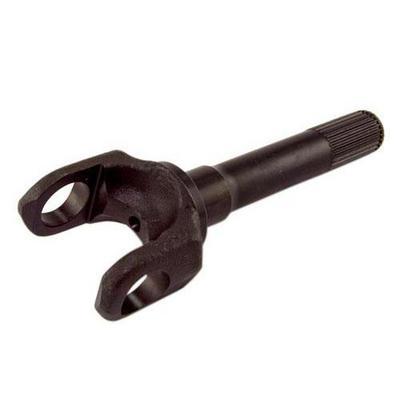

The Jeep axle stub shaft, part JEP68017181AB, is a factory replacement outer stub shaft for the front Dana 44 JK axle. It has 27 splines and is a direct fit for the 2007–2018 Jeep Wrangler (JK).
It is a factory replacement part, so it takes the place of the original stub shaft rather than adding an upgrade.
Key features
- Factory replacement part from Jeep
- Outer stub shaft on the front axle
- 27 splines
- Direct fit for the listed Wrangler JK models
Stub shaft wear and replacement
An outer stub shaft carries drive torque from the axle to the hub, so it works under load every time the vehicle moves. Its splines must mesh cleanly with the hub and the axle gear, and wear at the splines can cause a clunk when the drivetrain changes load.
Replacing the stub shaft is a good time to inspect the axle seal, the hub bearing and the nearby boot or gasket. A new shaft cannot fix a leaking seal, and a seal left damaged can let grease and dirt reach the bearing.
- Inspect the spline teeth for rounding or cracks
- Check the axle seal for leaks before reassembly
- Use new fasteners and the correct axle nut torque
- Test drive slowly to check for noise after install
Specifications
| Brand | Jeep |
|---|---|
| Part number | JEP68017181AB |
| Axle type | Dana 44 JK |
| Axle location | Front |
| Shaft position | Outer stub |
| Spline count | 27 splines |
| Axle manufacturer | Dana |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK) in both 2-door and Unlimited 4-door bodies.
The Wrangler JL, TJ and LJ are not on this list. Confirm your vehicle’s year, model and trim before ordering.
