Overview

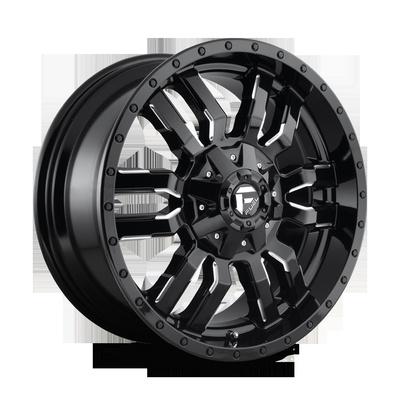

The FUEL Off-Road Sledge D595 18 Inches by 9 Inches wheel, part number MHTD59518909850, uses a gloss black milled finish, split spoke face and aluminum construction. It lists two six-bolt patterns, 6 on 135 and 6 on 139.7, and is intended for pickups and SUVs.
Offset 1, backspacing 5 and center bore 106 shape how the wheel sits against the brake and fender, so check clearance once you know your hub’s pattern. Because two patterns are shown, confirm which one matches your vehicle before going further.
Key features
- Gloss black milled split spoke face
- Aluminum build at 18 Inches diameter and 9 Inches width
- Two bolt patterns: 6 on 135 and 6 on 139.7
- Offset 1 with backspacing 5
- Center bore of 106
Choosing between bolt patterns
Bolt pattern is the number of studs and the diameter of the circle they sit on. Two patterns can look alike by eye, yet they differ in spacing, so a wheel will not seat correctly on the wrong hub. Measure across the studs or compare against the hub before choosing a wheel, rather than judging fit by eye.
Pattern adapters and spacers exist, but they change where the wheel sits and add load to the studs. Any spacer or adapter should be rated for the vehicle and checked for clearance at the brakes and suspension. For most owners, selecting the correct wheel for the hub is the simpler and safer route.
- Count the studs on the hub
- Measure the stud-to-stud span
- Check the lug nut seat style
- Confirm center bore against the hub
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD59518909850 |
| Model | Sledge D595 |
| Wheel diameter | 18 Inches |
| Wheel width | 9 Inches |
| Bolt pattern | 6 on 135/6 on 139.7 |
| Offset | 1 |
| Center bore | 106 |
| Backspacing | 5 |
| Style | Split Spoke |
| Finish | Gloss Black Milled |
| Construction | Aluminum |
Vehicle fitment
The wheel carries universal fit wording with no vehicle named. The two bolt patterns mean the hub’s pattern should be confirmed before any other measurement is compared.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure your hub’s bolt pattern first, since a wheel with the wrong pattern will not seat. Confirm offset and backspacing clearance over the brakes before final torque.
What’s included
Only one wheel is described here. No tire, valve stem or lug nut is named.
Not included: A tire and lug nuts are not part of this wheel and must be obtained separately.
