Overview

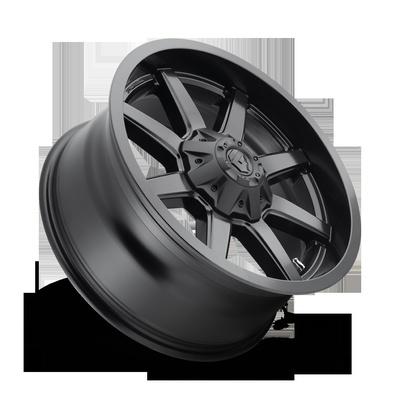

The FUEL Off-Road Maverick D436 is a 20×10 aluminum spoke wheel in satin black, part number MHTD43620009845, with a 6 on 135/6 on 139.7 bolt pattern and an offset of -24. It is a wheel-only product for trucks and SUVs, and FUEL Off-Road labels it universal fit rather than matching it to specific vehicles.
The Maverick D436 comes in many bolt pattern and offset combinations, so the specifications table is the reference point for checking your hub. The spoke design and satin black finish are the visible styling choices, while the 106 center bore and 4.8 backspacing matter for mounting.
Key features
- Maverick D436 spoke design
- 20-inch diameter and 10-inch width
- Aluminum construction with a satin black finish
- 6 on 135 / 6 on 139.7 bolt pattern
- Offset -24 and backspacing 4.8
- Center bore listed at 106
Spoke wheel upkeep
Spoke wheels have more surfaces than a flat face, and road grime tends to settle in the gaps between spokes and around the lug holes. Regular washing keeps the finish looking even and makes it easier to spot cracks or corrosion early. Use a soft brush for the crevices rather than a pressure washer aimed at the seats.
Inspect the wheel after any curb strike, looking at the spoke joints and the lip for bends or hairline cracks. Check that the lug holes are clean and that the seats are not chipped. A small scuff can be cleaned and monitored, but bent or cracked metal should not be returned to service.
- Clean between spokes after mud runs
- Check lug seats for chips
- Stop using a wheel with cracks
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD43620009845 |
| Model | Maverick D436 |
| Wheel diameter | 20 inches |
| Wheel width | 10 inches |
| Offset | -24 |
| Backspacing | 4.8 |
| Center bore | 106 |
| Bolt pattern | 6 on 135/6 on 139.7 |
| Style | Spoke |
| Finish | Satin Black |
| Construction | Aluminum |
| Fitment label | Universal Fit |
Vehicle fitment
No vehicle years, makes or models apply to this wheel. It is a universal fit wheel, so match the bolt pattern, offset, center bore, diameter and width to your hub before choosing it.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the 6 on 135/6 on 139.7 bolt pattern and the 106 center bore against your hub before mounting, since both must match the vehicle for the wheel to mount.
What’s included
One wheel is described here.
Not included: A tire, lug nuts and center cap are not included with this wheel.
