Overview

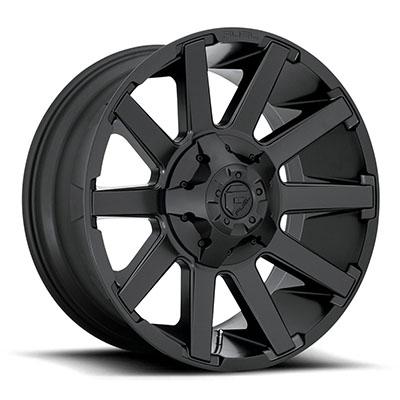

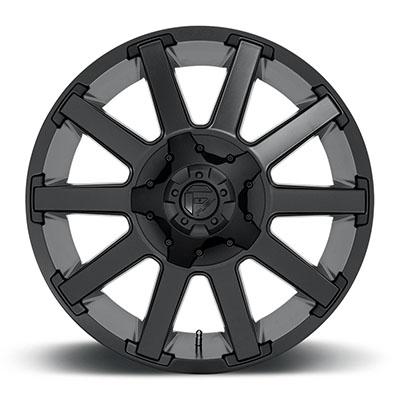

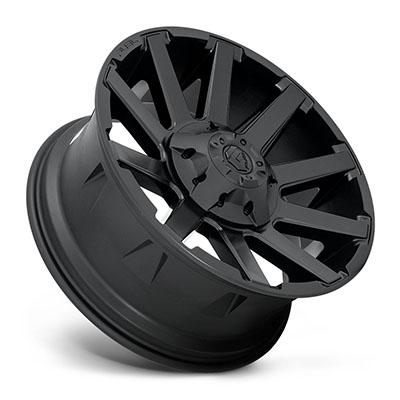

The FUEL Off-Road Contra D437 is a 20 x 9 inch aluminum wheel in satin black, part number MHTD43720909849, with a 6 on 135/6 on 5.5 bolt pattern. Contra is the style name for this design. It is built for trucks and SUVs that run a six-lug hub, and it carries a 2 offset, 106 center bore and 5.08 backspacing.
FUEL Off-Road describes its wheels as available in a wide range of bolt pattern and offset combinations. This D437 version also has a second bolt pattern entry of 6 on 135, so check which hub your vehicle uses before mounting.
Key features
- Aluminum construction with a satin black finish
- Two bolt pattern entries: 6 on 135/6 on 5.5 and 6 on 135
- 20 inch diameter and 9 inch width in the Contra style
- Offset 2, center bore 106 and backspacing 5.08.
Two bolt patterns explained
Six-lug hubs come in several spacings, and two close patterns can look similar at a glance. The difference shows up in the lug hole position across the hub, not in the number of holes. A wheel that fits one pattern may not seat on the other, so measuring lug center to center is the reliable check.
Adapters are one way some owners bridge a pattern difference, but each adapter adds a part to the load path and a second mounting surface. Choose a wheel that matches the hub outright where possible, and only use an adapter with a rating that suits the vehicle and load.
- Measure lug center to center
- Match the hub before buying the wheel
- Check adapter rating if one is used
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD43720909849 |
| Style | Contra (D437) |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 135/6 on 5.5 |
| Bolt pattern (second entry) | 6 on 135 |
| Offset | 2 |
| Center bore | 106 |
| Backspacing | 5.08 |
| Finish | Satin black |
| Construction | Aluminum |
Vehicle fitment
No vehicle is named for this wheel, and the manufacturer fitment list has no entries for it, so fitment is not confirmed. Compare the bolt pattern, offset, center bore and backspacing with your vehicle’s manufacturer specifications; a mismatch in any of these can stop the wheel from mounting or clear the brakes and fenders.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm your hub is 6 on 135 or 6 on 5.5 before mounting. Match the lug nut seat type to this wheel before fitting.
What’s included
The product name describes one wheel. No lug nuts, center caps or tire are stated.
