Overview

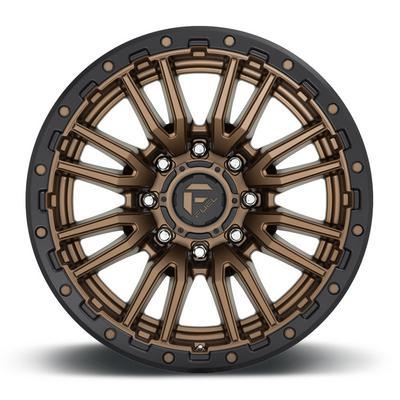

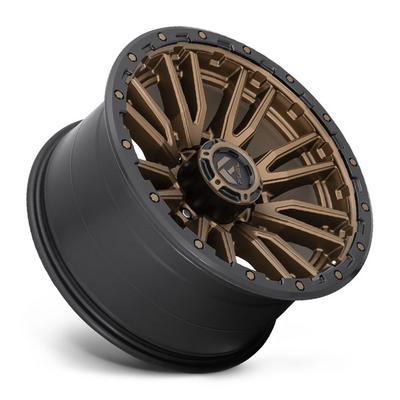

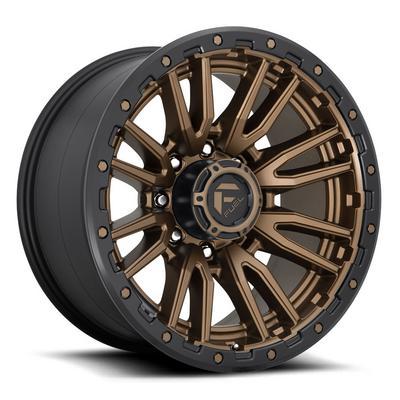

The FUEL Off-Road Rebel 8 D681 in 20 by 10 inches is a bronze and black aluminum split spoke wheel, part number MHTD68120008247, built for an 8 on 6.5 bolt pattern. It carries an offset of -18, a backspacing of 4.8 and a center bore of 125.
Bronze/black is the finish. Verify the 125 center bore against the hub, and the -18 offset against brake and fender clearance, before you choose this wheel for a set.
Key features
- Bronze/Black finish
- Split spoke design
- Aluminum construction
- 20 by 10 inch size
- 8 on 6.5 bolt pattern
- Offset -18 with center bore 125
Before you buy a set
Buying four matching wheels for a 20-inch 8 on 6.5 setup means checking every hub the same way, since one mismatched bore can cause vibration. Bronze and black finishes can look different in sunlight and shade, so compare a wheel in person when possible before ordering the full set. Split spoke faces also show brake dust and dirt more than solid faces, so plan on regular cleaning.
Once the wheels are fitted, recheck the lug nuts after the first few drives as the wheel seats. Tire pressure and tread wear change how a 10-inch wide wheel carries load over time, so inspect the tread edges regularly for uneven wear.
- Check each hub bore before mounting
- Inspect the mounting face for dents
- Rotate tires at regular intervals
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD68120008247 |
| Model code | D681 |
| Wheel diameter | 20 inches |
| Wheel width | 10 inches |
| Bolt pattern | 8 on 6.5 |
| Offset | -18 |
| Center bore | 125 |
| Backspacing | 4.8 |
| Style | Split spoke |
| Finish | Bronze/Black |
| Construction | Aluminum |
Vehicle fitment
It is a universal fit wheel, so confirm the 8 on 6.5 bolt pattern and center bore against your hub before choosing a set.
The wheel is 10 inches wide, so tire fit and rubbing should be checked against your tire’s width. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Once the wheel is on, snug the lug nuts in a star pattern and tighten them evenly. Recheck them after the first drive, since no torque value is given for the nuts.
What’s included
Check the package contents against your installation before starting, including lug nuts and caps.
Not included: Tire.
