Overview

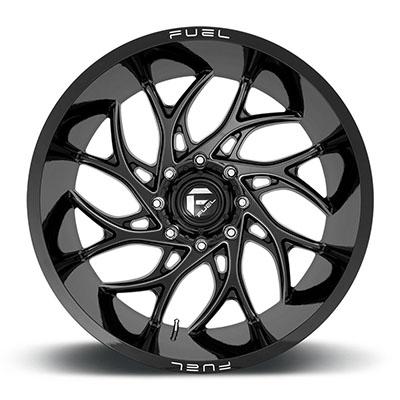

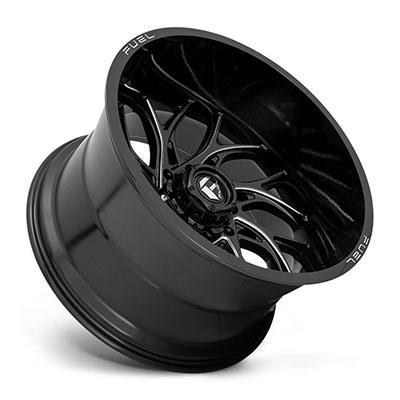

The FUEL Off-Road Runner D741 is a 20×8.25 aluminum dually wheel with an 8 on 200 bolt pattern, part number MHTD741208292, in gloss black milled. It is intended for trucks with an 8 on 200 hub, and its 105 offset tucks the wheel further inboard toward the vehicle, with 8.76 backspacing.
The Runner line sits within the D741 series, and the milled gloss black finish highlights the spoke detailing. Confirm the dually style and 142 center bore are the right match for your hub before mounting.
Key features
- 20-inch diameter with an 8.25-inch wide rim
- Dually style
- 8 on 200 bolt pattern
- Gloss black milled finish
- Offset 105, backspacing 8.76 and center bore 142
- Aluminum construction in the D741 Runner series
Dually setups and spacing
A dually setup places two tires on each rear hub, so the inner and outer wheels have to be sized and positioned to clear each other. Valve stem placement, inner wheel offset and spacing all affect whether the tires can rotate freely. When mounting duals, check that the inner wheel does not rub the outer tire’s sidewall and that the stud length is sufficient for both wheels.
Dually wheels carry heavy loads, so every fastener and seat face deserves attention. Clean the contact surfaces of the hub, spacers and wheels before installing, and tighten nuts in a star pattern. Heavy loads also make early inspection valuable, so look for stud wear, flattened lug holes or cracks at the spoke base after the first trips with a load in the bed.
- Check inner and outer tire clearance
- Confirm stud length for both wheels
- Inspect spoke bases after loaded trips
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD741208292 |
| Wheel diameter | 20 inches |
| Wheel width | 8.25 inches |
| Offset | 105 |
| Backspacing | 8.76 |
| Center bore | 142 |
| Bolt pattern | 8 on 200 |
| Style | Dually |
| Series | D741 Runner |
| Finish | Gloss Black Milled |
| Construction | Aluminum |
Vehicle fitment
No vehicles are named for the Runner D741, and the Universal Fit label does not identify a truck or SUV. Confirm the 8 on 200 bolt pattern, 142 center bore and dually style against your hub specifications.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Verify the 8 on 200 bolt pattern and 142 center bore before fitting. Because the offset is 105 and backspacing is 8.76, confirm clearance against the hub, brake components and inner fender, and recheck it after the first drive.
What’s included
The wheel comes alone, without tires, lug nuts, dually spacers or adapters.
Not included: tires, lug nuts, and any dually spacers or adapters.
