FUEL Off-Road D695 Covert Wheel, 18x9 with 6 on 135 Bolt Pattern – Red / Black – D69518908957

FUEL Off-Road

Shop FUEL Off-Road Wheels 18x9 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road D695 Covert 18×9 inch wheel, red and black finish, part number MHTD69518908957
  • 6 on 135 bolt pattern, offset 20, center bore 87, backspacing 5.79
  • Mesh style, aluminum construction
  • Universal fitment, so confirm hub match before mounting

Description

Overview

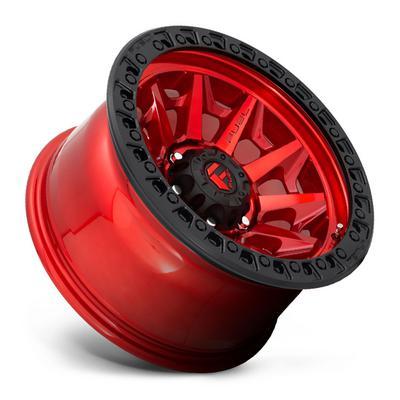

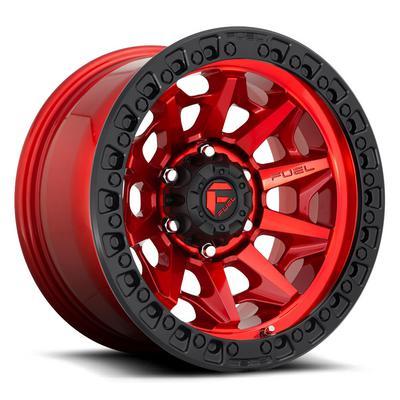

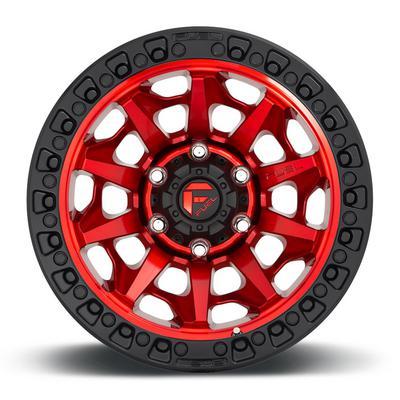

The FUEL Off-Road D695 Covert is an 18×9-inch aluminum mesh wheel with a 6 on 135 bolt pattern, a red and black finish and part number MHTD69518908957. It belongs to FUEL Off-Road’s off-road wheel range, which the brand offers across a wide selection of bolt patterns and offsets.

The 20 offset, 87 center bore and 5.79 backspacing set how the wheel sits relative to the hub and suspension. Compare those three figures with your vehicle before mounting, because they decide whether the wheel clears brakes, fenders and steering components. It is a universal fit wheel, so no particular year, make or model applies.

Key features

  • Mesh spoke style in a red and black finish
  • 18-inch diameter with a 9-inch width
  • Six-lug 6 on 135 bolt pattern
  • 87 center bore for hub matching
  • Aluminum construction
  • Offset of 20 and backspacing of 5.79

Offset and backspacing in practice

Offset sets how far the mounting face sits from the wheel centerline, and backspacing shows how much room the inner barrel has before it reaches brake parts and suspension. Two wheels with the same diameter and width can sit very differently under the same vehicle, so these measurements matter as much as bolt pattern. Mesh spokes leave the backside open to view, which makes it easy to check caliper clearance by eye once the wheel is on the hub.

When fitting a wheel of this type, many owners pair it with a tire of matching overall diameter and a fresh set of seat-matched lug nuts. Loosening and retorquing after the first few drives is a sensible habit for any aftermarket wheel, and inspecting the bead and valve area during tire service catches small problems early.

Specifications

Brand FUEL Off-Road
Part number MHTD69518908957
Wheel diameter 18 inches
Wheel width 9 inches
Offset 20
Center bore 87
Backspacing 5.79
Bolt pattern 6 on 135
Style Mesh
Finish Red / Black
Construction Aluminum
Fitment Universal fit

Vehicle fitment

No vehicle list is attached to this wheel. Fit depends on matching the 6 on 135 bolt pattern, the 87 center bore and the 20 offset to your hub, and on enough clearance around the 5.79 backspacing.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Use lug nuts whose seat type matches this wheel, and check whether the 87 center bore needs a hub-centric ring for your hub. Measure brake and suspension clearance at full lock and full travel before driving on the wheel.

What’s included

This is a single wheel.

Not included: tires, lug nuts and center caps.

SKU: MHTD69518908957 Categories: ,

Questions & Answers

What is the FUEL Off-Road D695 Covert wheel?

It is an 18x9-inch aluminum mesh wheel in red and black with part number MHTD69518908957. The listed specs include a 6 on 135 bolt pattern, offset 20, center bore 87 and backspacing 5.79.

Does the D695 Covert use a 6 on 135 bolt pattern?

Yes. The bolt pattern is 6 on 135, so the wheel needs a six-lug hub with that pattern. Center bore 87 and offset 20 should also be checked against your hub before mounting.

Are tires or lug nuts included with this wheel?

Tires, lug nuts and center caps are not included with this wheel. Plan to source those parts separately, and confirm the lug nut seat type and any hub-centric ring your hub needs before mounting.

Is the D695 Covert vehicle-specific?

No. It is a universal fit wheel with no year, make or model assigned. Compare the 6 on 135 bolt pattern, 87 center bore, 20 offset and 5.79 backspacing with your vehicle first.

How often should aftermarket wheel lug nuts be checked?

Check them after the first few drives and then at regular service intervals. Retighten to the torque value for your lug nut type, and recheck any time the wheel has been removed.
