Overview

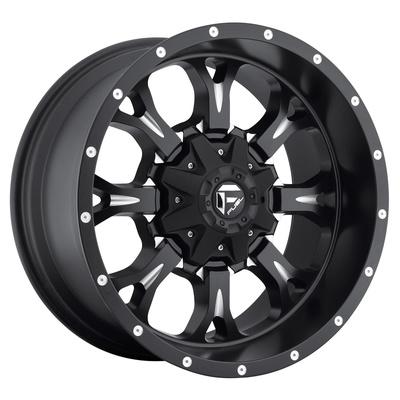

The FUEL Off-Road D517 Krank 17×9 is an aluminum wheel with a matte black milled finish, part number MHTD51717909850, and a dual 6-lug bolt pattern of 6 on 5.5 and 6 on 135. At 17 inches in diameter and 9 inches wide, it is meant for trucks and SUVs whose hubs match one of those two patterns.
The Krank style pairs a black milled face with an aluminum body. Offset is 1 and backspacing is 5, the two dimensions that decide how far the wheel sits inside the fender and how close its back comes to the brake and suspension parts. Check those figures against your own hub and clearance rather than relying on diameter and width alone.
Tire sizes are not part of this wheel. Choose a tire rated for the 9-inch rim width and check that its overall diameter suits the vehicle.
Key features
- Dual 6-lug pattern, 6 on 5.5 and 6 on 135, so the wheel can be matched to either hub layout.
- 17-inch diameter paired with a 9-inch width.
- Krank style with a matte black milled finish.
- Aluminum construction.
- Center bore 106, offset 1 and backspacing 5 as recorded for this model.
Mounting a tire on this wheel
A tire on a 9-inch rim seats differently than on a narrower wheel, so the tire must be chosen to suit that rim width. Bead seating and balancing are best done by a tire shop, which can confirm the tire’s load rating and overall diameter against the vehicle. Wheel weight affects how the tire wears and how the suspension responds, so balance the assembly after mounting and recheck it after the first few drives.
Clearance depends on the full assembly, not the wheel alone. Offset 1 and backspacing 5 place the wheel in a fixed spot, and a taller or wider tire can change how close it sits to the fender and suspension. Check the lug nut seat type and hub bore before mounting, and inspect the bead area for cracks or corrosion whenever a tire is removed. Torque lug nuts in a star pattern and recheck them after the first drive.
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD51717909850 |
| Style | Krank |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 5.5 / 6 on 135 |
| Center bore | 106 |
| Offset | 1 |
| Backspacing | 5 |
| Finish | Matte black milled |
| Construction | Aluminum |
Vehicle fitment
This wheel is not tied to a specific year, make, model or trim. It is a universal fit wheel, so the bolt pattern, center bore and offset must suit the hub and clearance of the truck or SUV.
Compare the 6 on 5.5 and 6 on 135 patterns with your hub, and check offset and backspacing against your clearance. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because two 6-lug patterns are covered, the hub must be one of them; a hub of any other layout will not take this wheel. Seat the wheel flat on the hub face, hand-start the lugs and tighten them in a star sequence with a torque wrench. Tire mounting and balancing fall outside this product and are best left to a tire shop.
What’s included
This product is one wheel.
Not included: Tire, lug hardware and center caps are not included, so budget for them separately.
