Overview

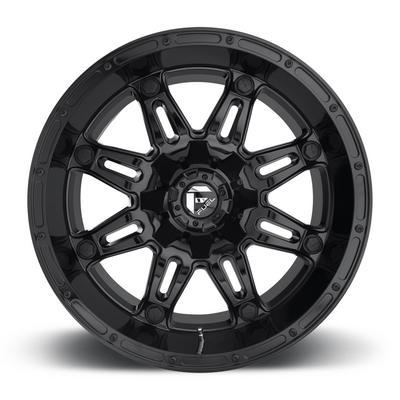

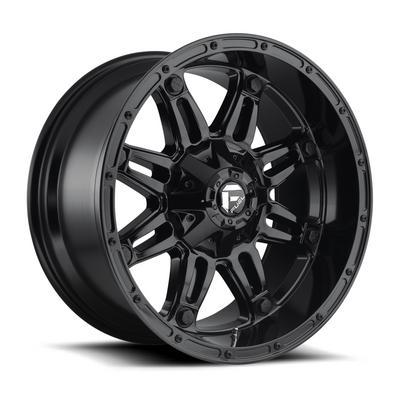

The FUEL Off-Road Hostage D625 in 20×9 is a gloss black aluminum split-spoke wheel, part number MHTD62520909845, with one 6 on 135 bolt pattern and a negative offset of -12.
The wheel is 20 Inches across and 9 Inches wide, with a 106 center bore and backspacing 4.5. An offset of -12 places the mounting face further outboard than a zero-offset wheel, which changes clearance.
Key features
- Negative offset of -12
- Gloss black finish on aluminum
- 6 on 135 bolt pattern
- 106 center bore
- Backspacing 4.5
Negative offset tradeoffs
A negative offset pushes the wheel and tire outward, which widens the track and can improve stability on uneven ground. The tradeoff is that the outer edge of the tire moves closer to the fender lip and to any flares, so tire rub becomes a concern at full compression. Steering geometry can also change slightly, so check for any change in steering feel after the first drive.
Before choosing a negative offset, look at the tire width and sidewall height the setup will use. A wider tire on a negatively offset wheel reaches farther out, and a bump stop or shock travel limit may need to be checked. Recheck clearance after any suspension lift, since lift height changes how far the tire sits beyond the body.
- Measure fender clearance at full compression
- Check steering lock for rubbing
- Recheck clearance after any suspension change
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD62520909845 |
| Style | Split Spoke |
| Finish | Gloss Black |
| Construction | Aluminum |
| Wheel diameter | 20 Inches |
| Wheel width | 9 Inches |
| Center bore | 106 |
| Offset | -12 |
| Backspacing | 4.5 |
| Bolt pattern | 6 on 135 |
Vehicle fitment
No vehicle is tied to this wheel. Confirm fit for your vehicle’s year, model and trim before ordering, and check the 6 on 135 pattern and -12 offset against your truck.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A negative offset moves the wheel outboard, so check fender and suspension clearance with the -12 offset in mind before mounting. Confirm torque values for your hub before tightening.
What’s included
This item is the wheel only.
Not included: A tire must be obtained separately before the wheel can be used on a vehicle.
