Overview

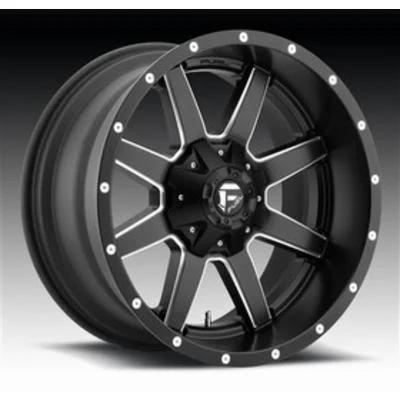

FUEL Off-Road’s Maverick 20×9 (part number MHTD53820901750) is an aluminum spoke wheel with a black milled finish and an 8 on 170 bolt pattern. No vehicle is named for it, so the hub bore, bolt pattern and offset determine whether a given truck or SUV can use it.
At 20 inches in diameter and 9 inches wide, with a center bore of 125, an offset of 1 and a backspacing of 5, the milled spoke face gives a look distinct from machined finishes. Compare these dimensions with your vehicle’s hub specifications before choosing this wheel.
Key features
- Black milled finish on a spoke face
- Aluminum construction
- 20-inch diameter, 9-inch width
- 8 on 170 bolt pattern
- Center bore 125 with offset 1
- Backspacing 5
Before you mount
A milled spoke face shows bright cut edges against the dark finish, and those edges are where road grit and brake dust collect first. A soft brush with a mild, pH-neutral wheel cleaner keeps them clean without dulling the surface. Avoid harsh acid cleaners on the milled edges, since repeated use can cloud the bright areas over time. Dust and grime pooled in the spoke pockets can also hide small cracks, so a regular close look is worthwhile.
Fit starts at the hub. Clean the mounting face and hub surface, make sure the wheel sits flat against them, and tighten the lug nuts in a star pattern. Wheels can settle during the first drives, so check torque again after that short break-in period.
- Keep the mounting face free of rust and paint
- Use a torque wrench for the final tightening
- Inspect the spokes after rough trail runs
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD53820901750 |
| Model | Maverick |
| Style | Spoke |
| Finish | Black, milled |
| Construction | Aluminum |
| Wheel diameter | 20 Inches |
| Wheel width | 9 Inches |
| Bolt pattern | 8 on 170 |
| Center bore | 125 |
| Offset | 1 |
| Backspacing | 5 |
Vehicle fitment
FUEL Off-Road marks this wheel as universal fit, so it carries no particular year, make, model or trim. Use the 8 on 170 bolt pattern, 125 center bore and offset of 1 to judge whether it suits your hub.
A universal-fit wheel can clear some vehicles and rub on others, so verify clearance on your own truck. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the lug seat style of the lug nuts you plan to use matches this wheel, since none are named with it. Check the hub bore and bolt pattern before tightening, and re-check lug torque after the first few miles of driving.
What’s included
Tires and lug nuts are not included with the wheel.
Not included: tires and lug nuts, which must be sourced separately.
