Overview

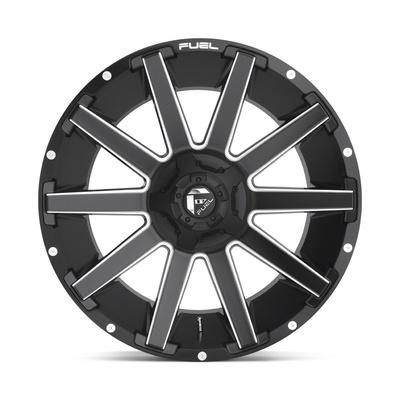

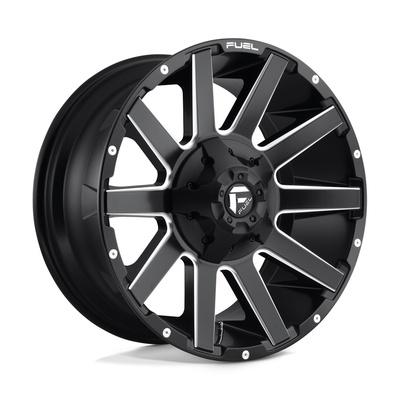

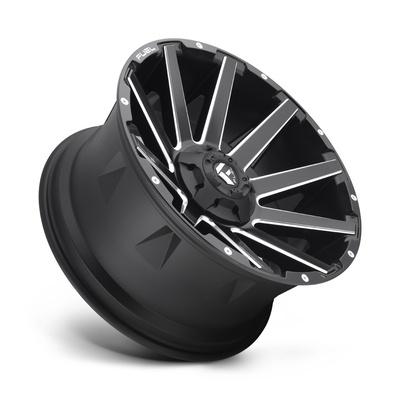

The FUEL Off-Road Contra D616 is a 20-inch by 10-inch aluminum spoke wheel with a matte black milled finish, part number MHTD61620002647. It is made for trucks and SUVs that use a 5 on 4.5 or 5 on 5 bolt pattern, and the specifications describe it as Universal Fit.
The dimensions that decide whether the wheel clears your hub and brakes are the -18 offset, the 78 center bore and the 4.8 backspacing. Check each one against your current wheels before mounting a tire.
Key features
- Spoke design in a 20-inch diameter and 10-inch width
- Matte black milled finish
- Aluminum construction
- Bolt patterns 5 on 4.5 and 5 on 5
- Offset -18, center bore 78 and backspacing 4.8
Choosing the right setup
Wheel offset and backspacing decide where the tire sits relative to the fender, the brake caliper and the suspension. A wheel that matches the bolt pattern can still rub if its offset pushes the tire outward past the body. Compare the mounting face position with your current wheels, and keep it close unless you plan to change the tire or suspension at the same time.
If the center bore is larger than the hub, a hub-centric ring keeps the vehicle’s weight on the hub instead of the lug nuts. Lug nuts should match the seat type of the wheel. Recheck torque after the first few drives, since new wheels can settle slightly against the hub face.
- Measure the hub before ordering
- Match the lug seat type
- Dry-fit with a tire mounted
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD61620002647 |
| Wheel diameter | 20 Inches |
| Wheel width | 10 Inches |
| Offset | -18 |
| Center bore | 78 |
| Backspacing | 4.8 |
| Bolt pattern | 5 on 4.5 / 5 on 5 |
| Style | Spoke |
| Finish | Black/Milled |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
No vehicle-by-vehicle list is attached to this wheel. The Universal Fit label means the bolt pattern, center bore and offset must be matched to the hub and clearance of your own truck or SUV.
Wheels with a different bolt pattern, such as 6 on 135, are not covered by the 5 on 4.5 and 5 on 5 layout. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Dry-fit the wheel on the hub and check brake caliper and fender clearance first, since the -18 offset pushes the wheel outward. Confirm the lug seat type matches your lug nuts before torquing.
What’s included
The wheel is the only item described here.
Not included: Tires, lug nuts and center caps: confirm what you need before installation.
