Overview

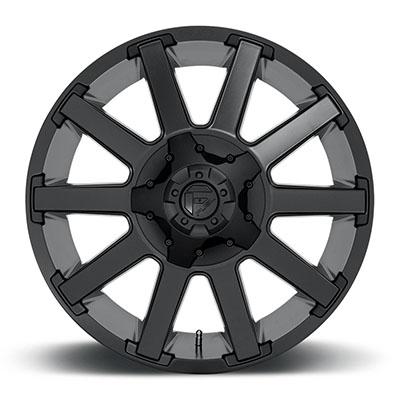

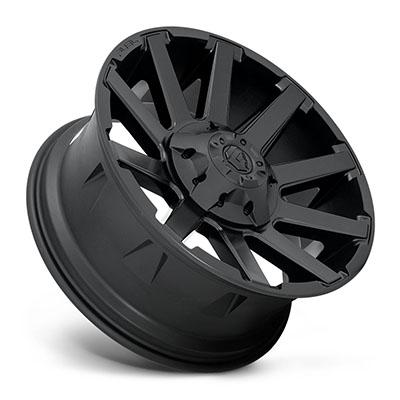

The FUEL Off-Road Contra D437 is a 20 by 9 inch aluminum wheel in satin black, with an 8 on 6.5 bolt pattern and part number MHTD43720908250. It is aimed at off-road and truck builds that need this bolt pattern and wheel size.
Offset, the distance from the wheel’s mounting face to its centerline, and backspacing, the distance from the mounting face to the inner lip, decide how far the wheel sits in the fender. This model has an offset of 1, a center bore of 125 and backspacing of 5.04, so compare those figures with your hub before mounting.
Key features
- Contra style wheel from FUEL Off-Road
- Aluminum construction with a satin black finish
- 20 inch diameter and 9 inch width
- 8 on 6.5 bolt pattern with a 125 center bore
- Offset 1 and backspacing 5.04 for clearance planning
Off-road wheel care and damage
Off-road wheels take impacts from rocks, roots and ruts, and the most common damage is a bent lip or bead seat. A bent wheel often shows up as a vibration at certain speeds or a tire that loses air slowly. After hard trail use, inspect the lip and bead seat with the tire off, looking for dents or flat spots.
Tire pressure also affects how a wheel takes impacts. Running too low a pressure on rough ground makes the tire more likely to roll off the bead or strike the rim, while too high a pressure transmits more shock. Adjust pressure to terrain and load, and check it before each trip.
- Inspect the lip and bead seat after trail use
- Look for flat spots and dents
- Check tire pressure before each trip
- Re-balance after any bend repair
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD43720908250 |
| Style | Contra |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Offset | 1 |
| Center bore | 125 |
| Backspacing | 5.04 |
| Bolt pattern | 8 on 6.5 |
| Finish | Satin Black |
| Construction | Aluminum |
Vehicle fitment
No vehicle years, makes or models are named for this wheel. FUEL Off-Road labels it Universal Fit, which means the brand does not tie it to one vehicle, so the bolt pattern, offset and backspacing carry the fitment decision.
No vehicle is confirmed for this wheel, so the bolt pattern, offset and backspacing decide fit. Compare them with your vehicle’s specifications before ordering.
Installation notes
Tire size, load rating and clearance to brakes and suspension are not known for this wheel, so have a tire shop check fit with the tire you plan to run. Wheels that fit poorly can rub or loosen, so test before driving far.
What’s included
This is a wheel only.
Not included: tires, lug nuts and center caps.
