Overview

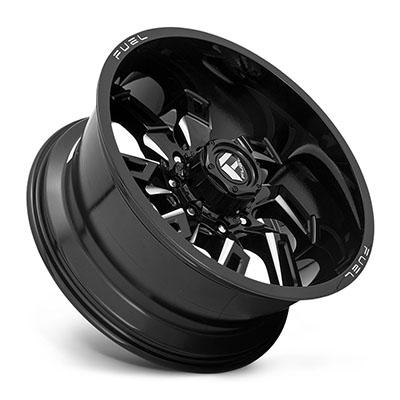

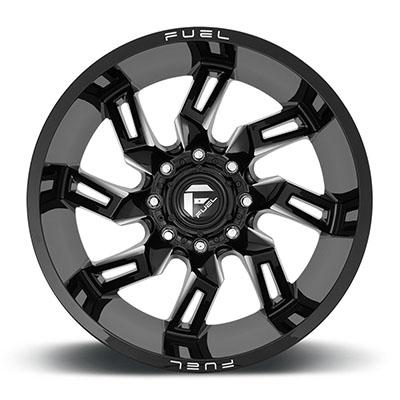

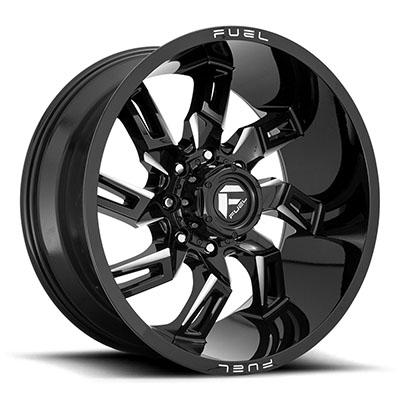

Part MHTD74720908950 is the FUEL Off-Road D747 Lockdown in a 20×9 size, a gloss black milled aluminum wheel with a 6 on 135 bolt pattern. Its center bore is 87, its offset is 1 and its backspacing is 5.04.
FUEL Off-Road marks this wheel Universal Fit, so no make, model or year is named. The hub’s bolt pattern and center bore should be matched first, then the offset.
Key features
- 9-inch width and 20-inch diameter
- 6 on 135 bolt pattern
- Offset of 1 with backspacing of 5.04
- Gloss black milled face in a directional style
- Lockdown series with aluminum construction
Before you mount
Milled aluminum faces look best when the wheel seats cleanly and runs true from the first drive. Begin by testing whether the center bore fits the hub snugly, so the wheel is centered by the hub rather than by the lug studs alone. Hub-centric fit cuts vibration at highway speed and keeps the studs from carrying the load of centering. Hold the wheel against the hub, look at the back face for contact with brake calipers, rotors and suspension arms, and only then start the lug nuts.
After the wheel is on, torque the lugs in a star pattern and check them again after the first few drives. New wheels can settle slightly against the hub face, so a second check prevents loose fasteners. Dirt and road grime collect in milled cuts, so clean them with a soft brush and mild soap. Look at the edges of the cuts after rough trail use, since chips there can be the first sign of a problem.
- Confirm hub-centric fit before torquing the lugs
- Re-torque after the first few drives
- Inspect milled edges for chips after rough trails
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD74720908950 |
| Series | D747 Lockdown |
| Style | Directional |
| Finish | Gloss Black Milled |
| Construction | Aluminum |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 135 |
| Center bore | 87 |
| Offset | 1 |
| Backspacing | 5.04 |
Vehicle fitment
It fits no single vehicle by name. Universal Fit means the bolt pattern, center bore and offset decide whether it suits a given hub.
Confirm the 6 on 135 pattern and 87 center bore first. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
With an offset of 1, the wheel sits close to the hub centerline, so confirm caliper and suspension clearance after mounting. Make sure the center bore seats squarely on the hub.
What’s included
One gloss black milled wheel is included in this item.
