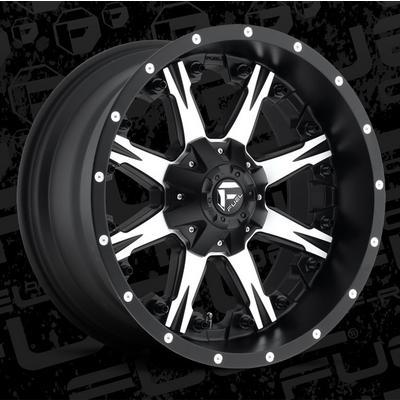

FUEL Off-Road Nutz, 20x10 Wheel with 5 on 150 and 5 on 5.5 Bolt Pattern – Black Machined – D54120007050

FUEL Off-Road

Shop FUEL Off-Road Wheels 20x10 5x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road Nutz 20×10 wheel, part number MHTD54120007050
  • Two bolt patterns listed: 5 on 5.5 and 5 on 150
  • 110 center bore with offset of -12 and backspacing of 5
  • Black machined spoke design in aluminum
  • 10 Inches width on a 20 Inches diameter

Description

Overview

A FUEL Off-Road Nutz wheel in 20×10 size with a black machined finish, catalogued as part number MHTD54120007050. It measures 20 Inches in diameter and 10 Inches in width, built as an aluminum spoke.

The spec sheet lists two bolt patterns, 5 on 5.5 and 5 on 150, so the pattern on your hub decides which one applies. The 110 center bore, offset of -12 and backspacing of 5 are the other figures to compare with your current wheels.

Key features

  • Spoke design with a black machined finish
  • Aluminum construction
  • Two bolt patterns listed: 5 on 5.5 and 5 on 150
  • 110 center bore
  • Offset of -12 and backspacing of 5
  • 10 Inches width on 20 Inches diameter

Measuring your hub

Before buying a 20-inch wheel, measure the hub instead of relying on the vehicle name. Count the lugs, then measure from the center of one stud to the center of the stud across from it. Compare that reading with the patterns this wheel is made for, and keep in mind that a near match is not a match.

Offset and backspacing decide where the rim sits relative to the brakes and suspension. A negative offset pushes the mounting face outward, so inner clearance and steering lock become more important. Check both before driving, particularly after any change in tire width or ride height.

  • Measure stud-to-stud distance across the hub
  • Compare offset with the brake and suspension clearance
  • Use hub-centric rings when the hub bore is larger

Specifications

Brand FUEL Off-Road
Part number MHTD54120007050
Style Spoke
Finish Black Machined
Construction Aluminum
Wheel diameter 20 Inches
Wheel width 10 Inches
Bolt pattern 5 on 5.5 and 5 on 150
Center bore 110
Offset -12
Backspacing 5

Vehicle fitment

FUEL Off-Road says universal fit, which means no particular vehicle is named. The two bolt patterns mean one of them must match your hub.

No year, make or model is tied to this wheel, so measure your hub before choosing this size. Check year, model and trim against your vehicle before ordering.

Installation notes

Pick the bolt pattern that matches your hub first, then check the 110 center bore against the hub face.

What’s included

The wheel itself is the only item; tires and lug nuts are bought separately.

SKU: MHTD54120007050 Categories: ,

Questions & Answers

Is the Nutz 20x10 wheel vehicle-specific?

No. It is a universal-fit wheel, so no year, make or model is tied to it. Match one of the two bolt patterns, 5 on 5.5 or 5 on 150, to your hub before mounting.

What offset and center bore does it have?

The offset is -12, backspacing is 5 and the center bore is 110. These figures are listed in the specifications table for comparison with your current wheels.

What is the part number for this wheel?

The part number is MHTD54120007050 from FUEL Off-Road. No UPC is shown, so use the part number when you compare or confirm details.

How do I measure a bolt pattern?

Measure from the center of one stud to the center of the stud on the opposite side. Odd lug counts are measured differently, so compare the result with the patterns this wheel is made for.

Should I use wheel spacers with this wheel?

Spacers change the offset and add stress to the studs and bearings. A wheel with negative offset already sits outward, so a spacer can make clearance problems worse. Recheck clearance after any change.
