Overview

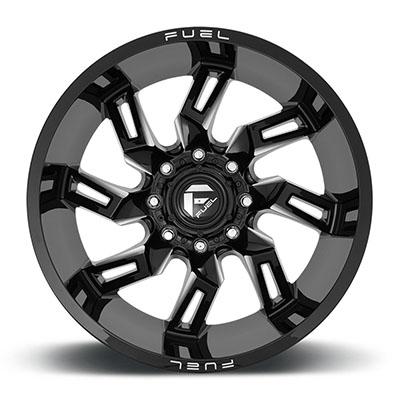

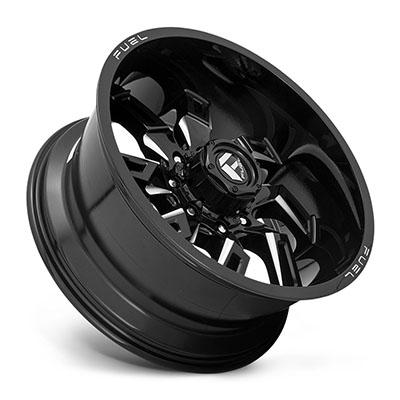

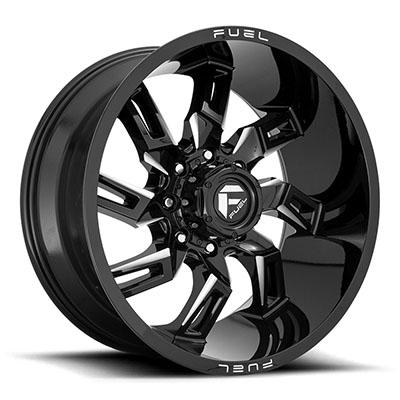

The FUEL Off-Road D747 Lockdown 20×9, part number MHTD74720908450, is a gloss black milled aluminum wheel built on a 6 on 5.5 bolt pattern. Its center bore is 106, its offset is 1 and its backspacing is 5.04.
Fitment is given only as Universal Fit, so the wheel is not tied to a vehicle name. Measure the 6 on 5.5 pattern on the hub first; the other figures follow from that.
Key features
- 6 on 5.5 bolt pattern
- Center bore of 106
- 9-inch width and 20-inch diameter
- Offset 1 with backspacing 5.04
- Directional gloss black milled face
Choosing hub-centric parts
A wheel that centers on the hub is only part of the picture. When the center bore is larger than the hub, hub-centric rings are often used to fill the gap so the wheel carries its load through the hub rather than the studs. Rings should be the correct size for the bore and hub, and they should be installed flush so the wheel face sits true. Ask a parts counter to confirm the ring size against your hub before buying, and keep the rings with the wheels when rotating tires.
Bolt pattern matching is a separate check. A 6 on 5.5 pattern must match the hub exactly, and adapters that change pattern add stress and need careful selection. Lug nuts should seat fully against the wheel’s seat type, so confirm the correct seat before torquing. Spacers and adapters change offset and can shift the wheel toward suspension parts, so keep any added spacing small and check clearance after each change.
- Measure the center bore against the hub
- Match lug seat type to the wheel
- Recheck clearance after any spacer change
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD74720908450 |
| Series | D747 Lockdown |
| Style | Directional |
| Finish | Gloss Black Milled |
| Construction | Aluminum |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | 1 |
| Backspacing | 5.04 |
Vehicle fitment
Universal Fit is stated, and no years, makes or models are given. Fit should be judged by the hub’s own measurements.
The 6 on 5.5 pattern and 106 center bore are the numbers to confirm first. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the 106 center bore against the hub so the wheel centers correctly, then confirm clearance at the brake caliper and fender once it is mounted.
What’s included
One wheel is included. Review the package contents against your installation plan, and confirm tires, lug nuts and center caps separately.
