Overview

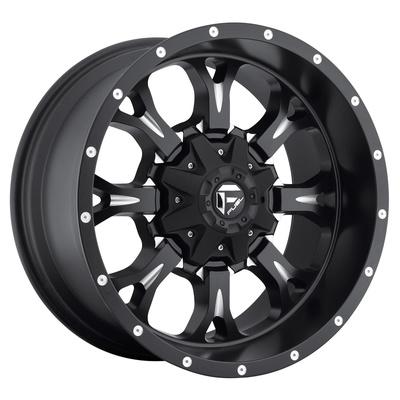

FUEL Off-Road’s D517 Krank in 17×9 is an aluminum wheel with a matte black milled finish, part number MHTD51717909845. The bolt pattern is given as 6 on 5.5 / 6 on 135, with 6 on 135 repeated as a second bolt pattern entry.
The center bore is 106, the offset is -12 and the backspacing is 4.5. A negative offset moves the mounting face outward, so brake and fender clearance should be checked before installation.
Key features
- 17-inch diameter and 9-inch width.
- Krank style with a matte black milled face.
- Bolt patterns 6 on 5.5 and 6 on 135.
- Center bore of 106.
- Offset of -12 and backspacing of 4.5.
- Brand classification: universal fit.
Checking clearance before mounting
Clearance checks start with the offset and backspacing, because those two figures decide where the wheel sits relative to the brakes, fenders and steering components. A negative offset moves the mounting face outward, which can bring the tire closer to the fender edge and change how the steering geometry feels. Before mounting, set the wheel on the hub and turn it to full lock to see whether the tire contacts any part of the chassis.
Other items deserve attention as well. The bolt pattern, center bore and seat style all need to match, and mismatched hardware can loosen over time. Brake caliper size, rotor diameter and spoke spacing can all affect whether the wheel clears. Inspect the wheel after the first drive for rubbing marks on the inner barrel or the fender lip, because small contacts often show up before a larger problem develops.
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD51717909845 |
| Wheel diameter | 17 inches |
| Wheel width | 9 inches |
| Style | Krank |
| Finish | Matte Black Milled |
| Construction | Aluminum |
| Bolt pattern | 6 on 5.5 / 6 on 135 |
| Bolt pattern #2 | 6 on 135 |
| Center bore | 106 |
| Offset | -12 |
| Backspacing | 4.5 |
| Fitment | Universal Fit |
Vehicle fitment
No year, make or model is tied to this wheel. The bolt pattern, center bore and offset determine whether it can be used on a given hub.
Universal fit does not replace a bolt pattern and clearance check for your truck or SUV. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Center bore and offset are the two items to verify before this wheel is mounted. Lug hardware should be selected to match the wheel’s seat type.
What’s included
Tire, lug hardware and center caps are not included, so obtain them separately.
Not included: tire, lug hardware and center caps (not listed).
