Select your vehicle

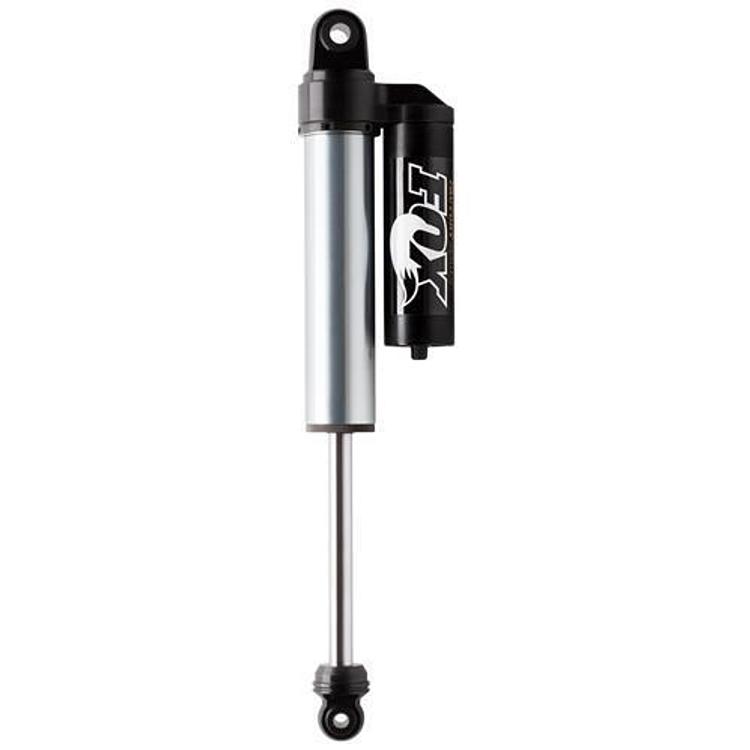

Fox Racing Shox Fox 2.5 Factory Series Reservoir Shock Set – 883-24-023

Fox Racing Shox

Shop Dodge Ram 2500 Shock Absorbers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front position, direct fit for the listed Dodge Ram 1500, 2500 and 3500 and Ram 2500 and 3500 models
  • Part number 883-24-023, Fox Racing Shox 2.5 Factory Series reservoir shock set
  • Extended 26.77 in., collapsed 16.600 in., stroke 10.17 in.
  • Gas charged, with a listed lift range of 2.5 to 3.5 in.

Description

Overview

The Fox Racing Shox 2.5 Factory Series reservoir shock set, part number 883-24-023, is a front shock for 2006–2008 Dodge Ram 1500, 1994–2010 Dodge Ram 2500 and 3500, 2011–2013 Ram 2500 and 2011–2012 Ram 3500 trucks. Reservoir shocks keep their gas and fluid in a separate canister, and Fox sells this unit as a direct replacement.

The measurements are 26.77 in. extended, 16.600 in. collapsed and 10.17 in. of stroke. The shock is gas charged with a listed lift range of 2.5 to 3.5 in., which suits the higher stroke this heavier-duty application calls for.

Key features

  • Direct-fit design for the front position
  • Gas-charged reservoir
  • 10.17 in. stroke
  • Lift range of 2.5 to 3.5 in.

Setting up a reservoir shock

A reservoir shock moves its gas and oil into a separate canister, which lets the damper run cooler and hold its feel over longer runs. The canister and hose need room to sit clear of tires, frame rails and the steering linkage through full compression and rebound. Mount it so the hose bends gently and does not rub against any edge.

Heavier trucks load the front shocks harder under towing and loaded hauling, so a reservoir design often suits that work. Check that the body is not bottoming against the bump stop at full compression, and confirm the stroke works with the ride height you run.

Keep an eye on the reservoir mount, since loose brackets let the canister swing and wear the hose. Wipe the body clean after washing, and look for seepage around the base fitting at each service.

  • Check hose routing through full travel
  • Inspect reservoir bracket bolts
  • Look for seepage at the base fitting

Specifications

Brand Fox Racing Shox
Part number 883-24-023
UPC 700007031111
Position Front
Shock series 2.5
Extended length 26.77 in.
Collapsed length 16.600 in.
Stroke 10.17 in.
Charge Gas charged
Lift height 2.5 to 3.5 in. lift

Vehicle fitment

Trucks it fits in the front position:

  • 2006–2008 Dodge Ram 1500 (Laramie, SLT, SXT)
  • 1994–2010 Dodge Ram 2500 (Base, Laramie, Power Wagon, SLT, ST, SXT, Sport, TRX, TRX4)
  • 1994–2010 Dodge Ram 3500 (Base, Laramie, SLT, ST, SXT, Sport, TRX4)
  • 2011–2013 Ram 2500 (Big Horn, Laramie, Laramie Longhorn, Lone Star, Outdoorsman, Power Wagon, SLT, ST, Tradesman)
  • 2011–2012 Ram 3500 (Laramie, Laramie Longhorn, SLT, ST)

Ram 1500 model years after 2008 and Ram 2500 and 3500 years after 2013 are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Have the shock installed by a qualified shop, and recheck the mounting hardware after the first drive. Heavy-duty trucks load their front shocks differently, so verify reservoir clearance at full compression.

What’s included

Only the shock itself is described. No mounting hardware appears in these details.

SKU: FOX883-24-023 Category:

Specification

Shipping weight 45.00 lbs
Package dimensions 31.50 × 17.50 × 8.50 in
brands

Fitment

VehicleYearsTrims
Dodge Ram 15002006–2008Laramie, SLT, SXT
Dodge Ram 25001994–2010Base, Laramie, Power Wagon, SLT, ST, SXT, Sport, TRX, TRX4
Dodge Ram 35001994–2010Base, Laramie, SLT, ST, SXT, Sport, TRX4
Ram 25002011–2013Big Horn, Laramie, Laramie Longhorn, Lone Star, Outdoorsman, Power Wagon, SLT, ST, Tradesman
Ram 35002011–2012Laramie, Laramie Longhorn, SLT, ST

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does part 883-24-023 fit a Dodge Ram 2500?

Yes, for the covered years. It fits 1994–2010 Dodge Ram 2500 and 2011–2013 Ram 2500 models in the trims covered here. Confirm your trim before ordering.

Does it fit a Ram 1500?

Only the 2006–2008 Dodge Ram 1500 fits, in the Laramie, SLT and SXT trims. Later Ram 1500 model years are not covered, so check your truck's year and trim before ordering.

What is the stroke of this shock?

The stroke is 10.17 in., between an extended length of 26.77 in. and a collapsed length of 16.600 in. The listed lift range is 2.5 to 3.5 in.

Do reservoir shocks need more maintenance than standard shocks?

They need the same basic checks, plus a look at the reservoir mount and hose routing. Keep the canister clear of tire contact and inspect for leaks at the base fitting, since a loss of gas pressure changes how the shock responds.
