Overview

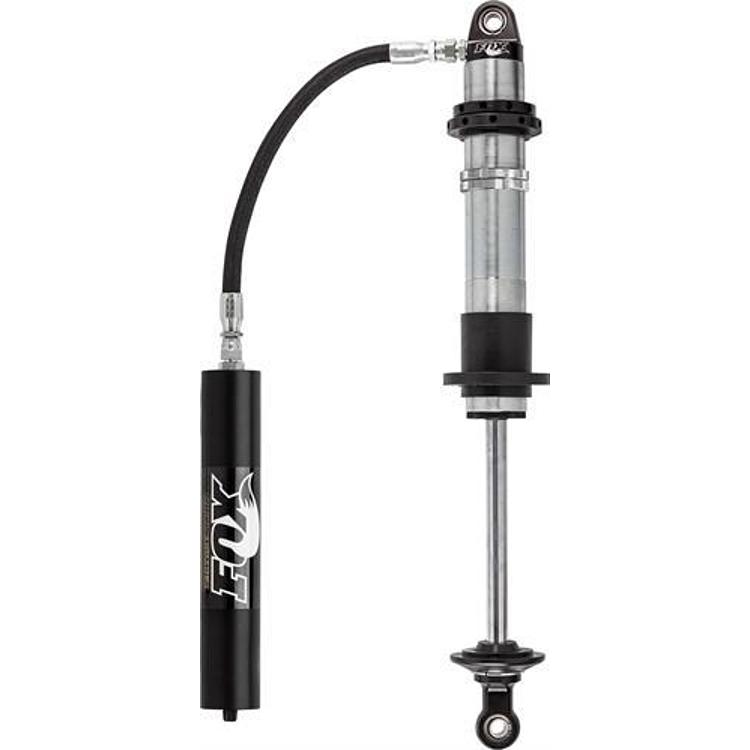

The Fox Racing Shox 2.5 Series Coilover with Remote Reservoir, part number 980-02-109, pairs a coil spring with a gas-charged shock body and a separate reservoir. It has 16.0 inch travel and a 2.5 inch body diameter, and Fox classifies it as universal fit.
A coilover places the spring around the shock body, so the two work together as one unit. Spring and shock are matched as a pair, which affects ride feel from daily driving to off-road and competition use. The design offers a range of tuning options across those conditions.
Key features
- Coilover design with a remote reservoir
- 16.0 inch travel
- 2.5 inch body diameter and 7/8 inch shaft diameter
- Black and zinc finish
- 1/2 inch bolt or heim mounting
- Gas charged, with a universal fit classification
Spring rate and preload
The spring on a coilover controls ride height and how much the vehicle sits under load, while the shock controls how quickly that spring moves. Changing spring rate, preload or ride height shifts both, so treat them as one setup. A heavier vehicle or larger tires usually need a firmer spring, and a stiffer spring can make the ride harsher on road.
Preload adjustments should be made with the vehicle supported, and the spring seat and lock ring should be checked after each change. Inspect coil ends and seats for cracks, rust or sagging. Heavy assemblies also need care during lifting, so use a helper and stands.
- Match spring rate to vehicle weight and tires
- Check the spring seat and lock ring after adjustments
- Look for cracked or sagging coils at service
- Keep the reservoir hose clear of the spring
Specifications
| Brand | Fox Racing Shox |
|---|---|
| Part number | 980-02-109 |
| UPC | 70000375583 |
| Shock series | 2.5 Series Coilover with Remote Reservoir |
| Charge type | Gas charged |
| Finish | Black and zinc |
| Body diameter | 2.5 inch |
| Shaft diameter | 7/8 inch |
| Travel | 16.0 inch |
| Reservoir dimensions | 2.50 inch x 14.00 inch |
| Extended length | 42.43 inch |
| Collapsed length | 26.50 inch |
| Mounting | 1/2 inch bolt or heim |
| Fitment | Universal fit |
Vehicle fitment
Fox classifies this coilover as Universal Fit, so it is not tied to a specific make, model or year. Compare the 42.43 inch extended and 26.50 inch collapsed lengths with your suspension geometry before ordering.
No vehicle is named for part 980-02-109, so no particular Jeep, truck or other model is confirmed. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 1/2 inch bolt or heim mounting must match your brackets, so check the hole size and joint type before fitting. Coilovers are heavy assemblies, so use jack stands and a helper when lifting the unit into place.
What’s included
Items packed with this coilover, such as a spring, hardware or reservoir hose, are not confirmed here. Check the package contents against your installation before starting.
