Overview
The Firestone Ride-Rite Coil-Rite Rear Air Helper Spring Kit 4174 is a rear in-coil air helper spring kit for the 2007–2017 Toyota RAV4. It is rated at 500 lbs per pair and fits the RAV4 trims Base, EV, Hybrid and Platinum, among others.
The air springs fit inside the existing coil springs to add a variable spring rate, which Firestone says levels the vehicle and supports braking and handling under heavy loading. The kit is not compatible with lift kits or a height sensor.
Key features
- Rear in-coil design that fits inside existing coil springs
- Rated 500 lbs per pair
- No drilling required
- Manual inflation; compressor and gauges optional
- Operating range of -40F (-40C) to 180F (82C)
- Fits the 2007–2017 Toyota RAV4
Coil Spring Interaction
An in-coil air helper works inside the coil spring, so the coil keeps carrying the basic weight while the bag adds support as the load grows. That makes the spring rate change with pressure, which is why the springs and bags need to be matched and kept in good condition. Worn coil springs, sagging rear bushings or tired shocks can all make a helper spring feel uneven, so inspect them when the bags go in.
On a compact crossover, the rear suspension often carries cargo, a roof load or a trailer tongue weight. Keep the bags at a pressure that suits the load, and recheck the level after loading or unloading gear. Shocks and bump stops are often replaced together with helper springs to keep the ride balanced.
- Inspect coil springs and rear bushings before fitting the bags
- Match the bag pressure to the cargo or tow load
- Consider new shocks when the rear sags or rides harshly
Specifications
| Brand | Firestone Ride-Rite |
|---|---|
| Part number | 4174 |
| UPC | 767555117248 |
| Position | Rear |
| Front or rear application | Rear |
| System type | In coil |
| Bag or spring type | Coil type bag |
| Type of system | Air bag |
| Load capacity | 500 lbs per pair |
| Installation type | No drilling required |
| Inflation method | Manual |
| Height sensor | Not compatible |
| Lift kit compatible | No |
| Operating temperature | -40F (-40C) to 180F (82C) |
Vehicle fitment
It fits these 2007–2017 Toyota RAV4 vehicles:
- 2007–2017 Toyota RAV4 (Base, EV, Hybrid Limited, Hybrid SE, Hybrid XLE, LE, Limited, Platinum, SE, Sport, XLE)
RAV4 model years outside 2007–2017 are not covered, and no other Toyota models are named. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The springs fit inside the rear coil springs, so the job reaches into the rear suspension and suits an installer comfortable with coil spring work. Match your exact trim name to the list, since Hybrid, EV and Platinum trims are named individually.
What’s included

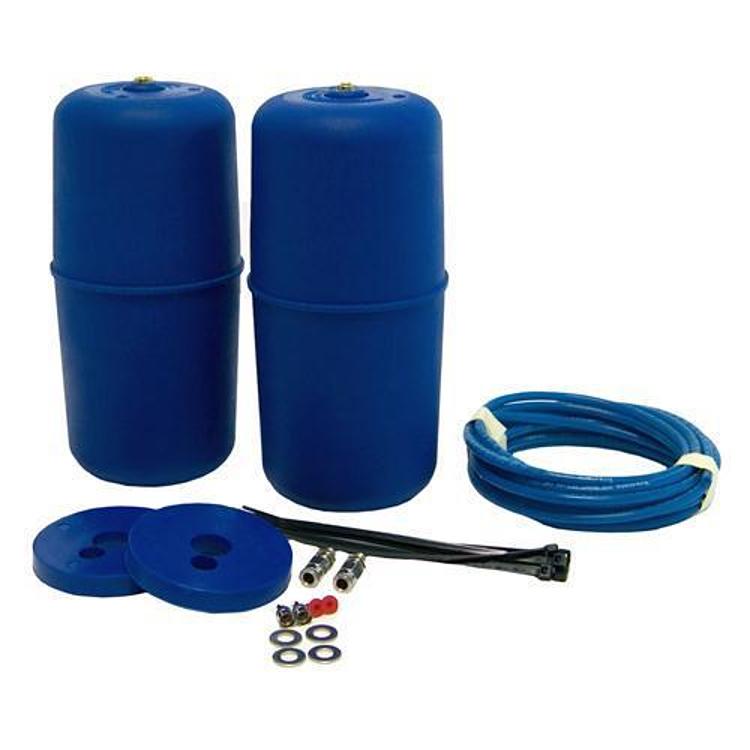

Rear in-coil air helper springs for the RAV4. Check the package contents against your installation before starting.
Not included: Compressor and gauges, which are optional.
