Overview

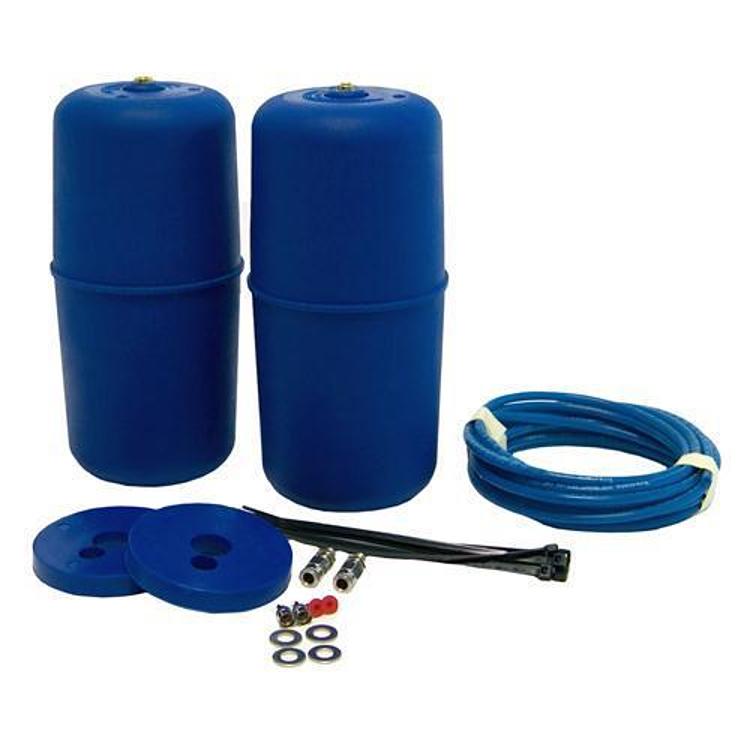

The Firestone Ride-Rite Coil-Rite rear air helper spring kit, model 4138, adds adjustable air support to coil-sprung rear suspensions. It is a medium duty kit built from polyurethane air springs that provides extra leveling for coil-sprung vehicles.
The kit is rated for 500 lbs per pair and installs without drilling. Make sure the year, make, model and trim match your vehicle before buying.
Key features
- Listed benefits include improved stability, steering and balance
- Listed to help prevent bottoming out and keep the vehicle level
- Listed to help keep headlights aimed at the road
- Listed to help reduce tire wear and improve braking effectiveness
- Medium duty, air adjustable polyurethane construction
- Manual inflation with no drilling required
Air helpers on coil suspensions
A coil spring carries load through its rate, and an air helper adds support on top of that rate. On a coil-sprung rear, the helper is useful when cargo or a trailer pushes the suspension down and the ride starts to feel harsh. Adjusting the air pressure can bring the rear height back toward the level the vehicle was built for.
Choosing a helper means matching the air spring to the coil setup and the load you expect. Heavier loads call for more careful pressure settings, and the coil springs and shocks should be in good shape before adding any air support. Worn shocks in particular can make a helper feel unstable, so inspect them when the kit goes in.
- Check shocks and coil springs before installation
- Set pressure by hand to suit the load
- Inspect air springs for rubbing against coil edges
Specifications
| Brand | Firestone Ride-Rite |
|---|---|
| Product number | 4138 |
| UPC | 767555098028 |
| System type | In-coil air helper |
| Load capacity | 500 lbs per pair |
| Bag/spring type | Coil-type bag |
| Installation type | No drilling required |
| Inflation method | Manual |
| Compressor and gauges | Optional, not included |
| Height sensor | Not compatible |
| Lift kit compatible | No |
Vehicle fitment
It is a direct fit rear air bag application for rear coil-sprung vehicles. Verify that your vehicle’s year, model and trim match the kit before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installation requires no drilling, and inflation is manual, so air pressure is set by hand. A compressor and gauges are optional add-ons and are not part of this kit. Support the rear of the vehicle on stands before working near the springs.
What’s included
Check the package contents against your installation before starting.
Not included: Compressor and gauges (optional).
