Overview

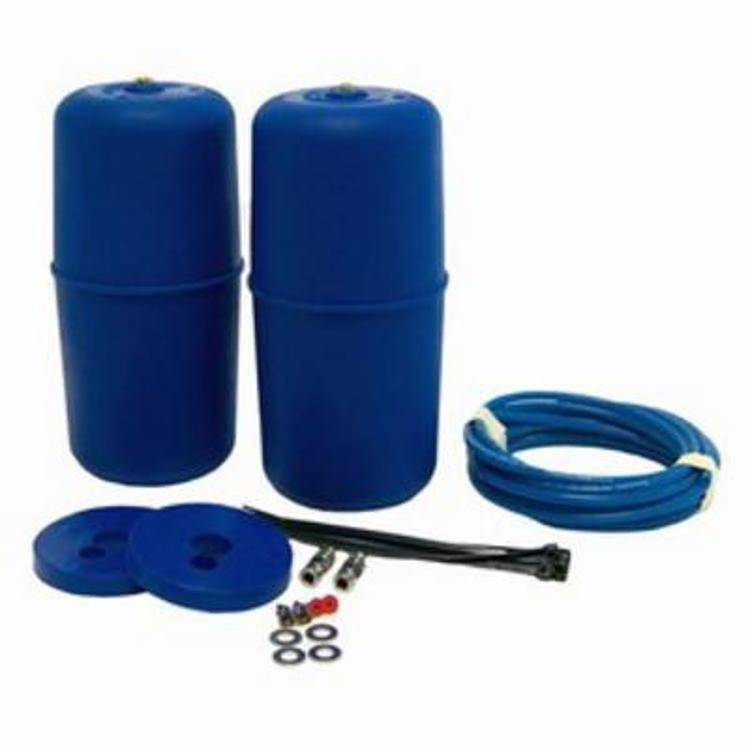

Firestone Ride-Rite’s Coil-Rite 4150 is a rear air helper spring kit for coil-sprung vehicles. Its polyurethane air springs add adjustable support and leveling for coil-sprung suspensions.
Rated 500 lbs per pair, the 4150 installs with no drilling and uses manual inflation. Confirm the rear coil setup of your vehicle before ordering.
Key features
- Listed to support stability, steering and balance
- Listed to help prevent bottoming out and keep the vehicle level
- Listed to help keep headlights aimed at the road
- Listed to help reduce tire wear and improve braking
- Medium duty polyurethane construction
- Adjustable air support through manual inflation
Rear coil suspension basics
Coil springs are sized for a set load, so added cargo or a heavier rear accessory can lower the back end and change the ride. An air helper adds support in the space the coil leaves, which can keep the rear closer to level. The effect depends on how the vehicle is loaded, so pressure is best adjusted to the load in use.
Before working on a coil-sprung rear, check the shocks, bushings and springs for wear. Polyurethane air springs hold up well when they are kept free of rubbing, but their mounts and any contact points should be inspected after rough use. Keeping the rear geometry in good order helps the helper do its job without extra strain.
- Inspect shocks and bushings before fitting
- Look for rubbing where the air spring meets the coil
- Adjust pressure when the load changes
Specifications
| Brand | Firestone Ride-Rite |
|---|---|
| Product number | 4150 |
| UPC | 767555108697 |
| System type | In-coil air helper |
| Load capacity | 500 lbs per pair |
| Bag/spring type | Coil-type bag |
| Installation type | No drilling required |
| Inflation method | Manual |
| Compressor and gauges | Optional, not included |
| Height sensor | Not compatible |
| Lift kit compatible | No |
Vehicle fitment
It is a rear direct fit air bag kit for coil-sprung suspensions. Make sure the year, model and trim match your vehicle before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Pressure is set by hand, and a compressor and gauges are optional add-ons. Mounting requires no drilling. Support the rear of the vehicle on stands before working near the springs.
What’s included
Check the package contents against your installation before starting.
Not included: Compressor and gauges (optional).
