Firestone Ride-Rite Coil-Rite Rear Air Helper Spring Kit – 4170

Firestone Ride-Rite

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear air helper spring kit for coil-sprung vehicles, model 4170
  • Rated 500 lbs per pair; medium duty polyurethane
  • No drilling required; manual inflation
  • No vehicle fitment listed; confirm before ordering

Description

Overview

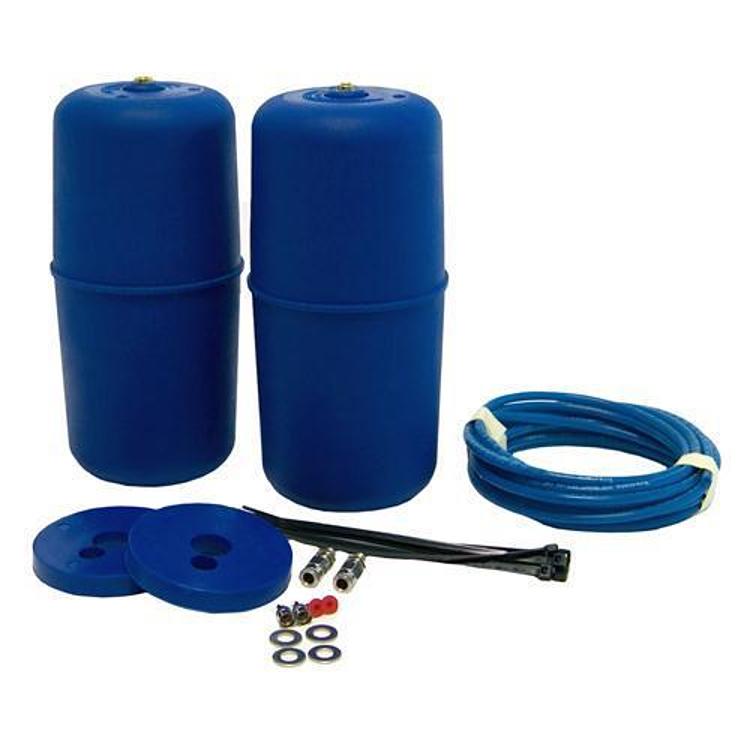

Firestone Ride-Rite’s Coil-Rite 4170 is a rear air helper spring kit that adds adjustable leveling to coil-sprung vehicles. The medium duty polyurethane design is rated at 500 lbs per pair.

The 4170 installs without drilling and is inflated manually. Confirm fitment for your vehicle’s year, model and trim before ordering.

Key features

  • Listed to aid stability, steering and balance
  • Listed to help prevent bottoming out and keep the ride level
  • Listed to help keep headlights aimed properly on the road
  • Listed to help reduce tire wear
  • Polyurethane air springs in medium duty construction
  • Adjustable support through manual inflation

Keeping a coil helper working

A coil helper works with the existing coil spring, so the condition of the coil and shock makes a noticeable difference. When the shock is worn, the rear can bounce after bumps even with the helper set correctly. Checking the shock and the coil seats before installation gives the helper a stable base to work from.

Manual inflation means the pressure is set by hand, so check it when the load changes and after long drives. Look at the polyurethane springs for surface cracks or rubbing, and make sure the mounts remain tight. Inspect the air fittings for slow leaks, since a small loss over time can change the rear height without warning.

  • Inspect shocks and coil seats before fitting
  • Recheck pressure after load changes
  • Look for rubbing where the spring meets the coil

Specifications

Brand Firestone Ride-Rite
Product number 4170
UPC 767555116692
System type In-coil air helper
Load capacity 500 lbs per pair
Bag/spring type Coil-type bag
Installation type No drilling required
Inflation method Manual
Compressor and gauges Optional, not included
Height sensor Not compatible
Lift kit compatible No

Vehicle fitment

It is a direct fit rear air bag kit for coil-sprung suspensions. Verify that your vehicle’s year, model and trim match the kit before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Mounting needs no drilling, and pressure is set by hand because inflation is manual. A compressor and gauges are optional and are not part of the kit. Put the vehicle on stands before working near the rear springs.

What’s included

The kit is rated at 500 lbs per pair. Check the package contents against your installation before starting.

Not included: Compressor and gauges (optional).

SKU: FIR4170 Category:

Specification

Shipping weight 2.00 lbs
Package dimensions 11.00 × 9.00 × 9.00 in
brands

Questions & Answers

Will the Coil-Rite 4170 fit my vehicle?

Confirm the year, model and trim of your vehicle before ordering. Model 4170 is a direct fit rear air bag kit for coil-sprung suspensions, so check your rear coil setup against that use.

What load does the 4170 kit support?

The kit is rated for 500 lbs per pair. It uses polyurethane air springs and manual inflation. Check the load on the rear axle against the pair rating before installation.

Does the 4170 require drilling?

No. The installation needs no drilling. A compressor and gauges are optional and are not included with the kit, so pressure is set manually during installation and use.

Why does my rear sit lower after a few days?

A slow air leak at a valve or fitting is a common cause. Check each connection with soapy water and tighten or replace any part that bubbles. Worn shocks can also lower the ride height over time.

Should coil springs be checked when adding a helper?

Yes. Look for cracks, sagging and wear on the coil and its seats. A weak coil can change how the helper loads the rear, so inspect the coil before setting the air pressure.
