Overview

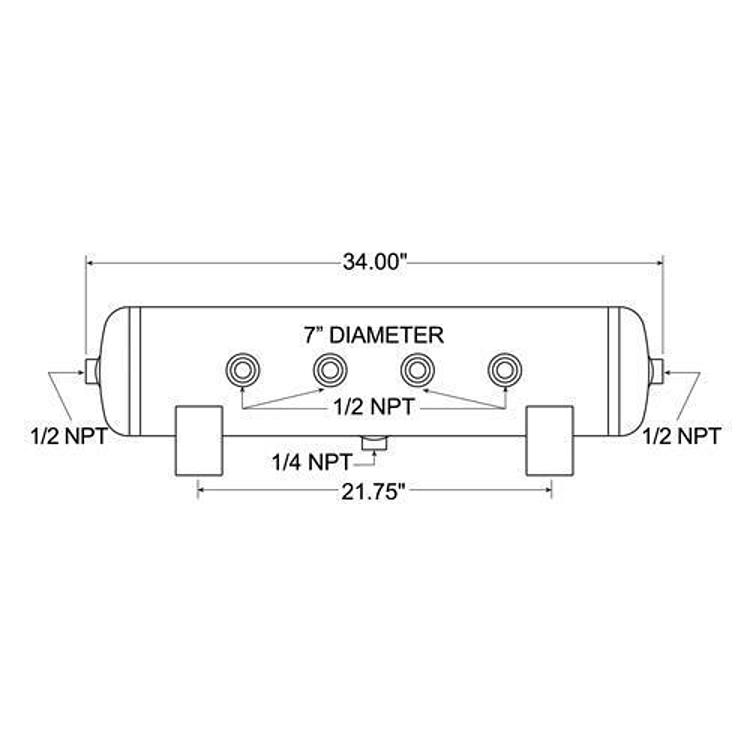

The Firestone Ride-Rite 9248 is a 5 gallon air tank and reservoir made of corrosion resistant steel, rated to 150 psi maximum. Firestone says its tanks are coated inside and outside to resist corrosion and are tested to SAEJ10 compliance. The tank is 7 inches in diameter and 34 inches long.

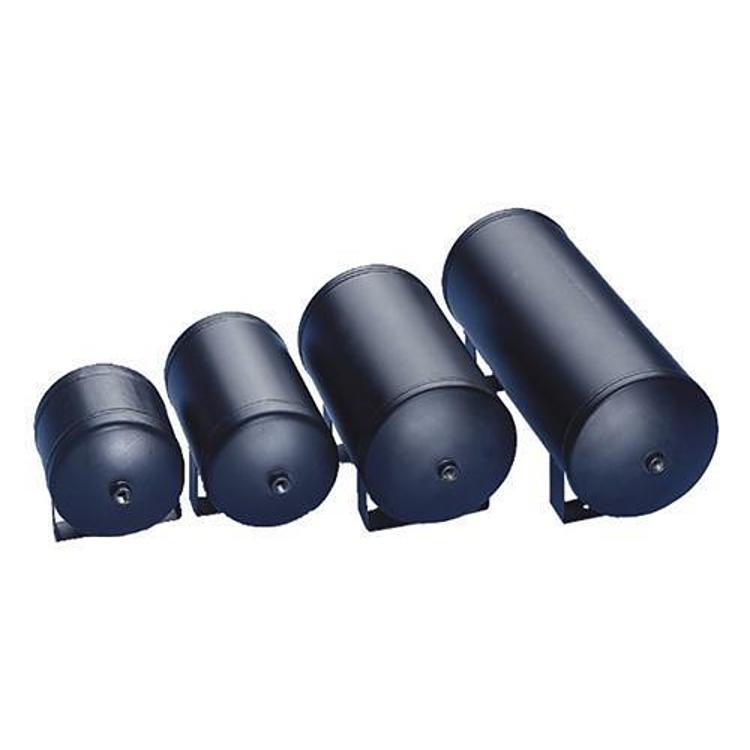

Firestone offers individual tanks from 1/4 gallon to 20 gallons, and the 9248 is the 5 gallon size in that range. It has six 1/2 NPT bungs and one 1/4 NPT bung for fittings.
Key features
- Corrosion resistant steel tank
- Coated inside and outside
- Tested to SAEJ10 compliance
- Rated to 150 psi maximum
- Six 1/2 NPT bungs and one 1/4 NPT bung
Sizing and moisture control
An air tank stores compressed air so a compressor does not have to run constantly. A larger reservoir holds more air for heavy use, while a smaller one responds faster. The tank also stabilizes pressure when several outlets are open at the same time, which helps tools and accessories perform more evenly.
Water is the main long-term concern. Compressed air releases moisture as it cools, and that water settles at the bottom of the tank. Draining regularly and checking the coating for chips keeps corrosion from spreading. Clear space around the tank also helps with heat release and inspection.
- Drain condensed water on a regular schedule
- Inspect the coating for chips or rust spots
- Keep system pressure at or below the tank rating
- Leave room for inspection and drain access
Specifications
| Brand | Firestone Ride-Rite |
|---|---|
| Part number | 9248 |
| UPC | 176092489 |
| Tank capacity | 5 gallon |
| Tank diameter | 7 inches |
| Tank length | 34 inches |
| Tank material | Corrosion resistant steel |
| Maximum air pressure | 150 psi |
| Fittings | Six 1/2 NPT bungs, one 1/4 NPT bung |
| Compliance | SAEJ10 |
Vehicle fitment
The tank is Universal Fit and is not tied to a specific vehicle. Check the mounting location and port threads against your system before installing it.
Installation notes
Use fittings matched to the 1/2 NPT and 1/4 NPT bungs, and keep system pressure at or below the 150 psi rating for this tank.
What’s included
This package is the tank only.
