Overview

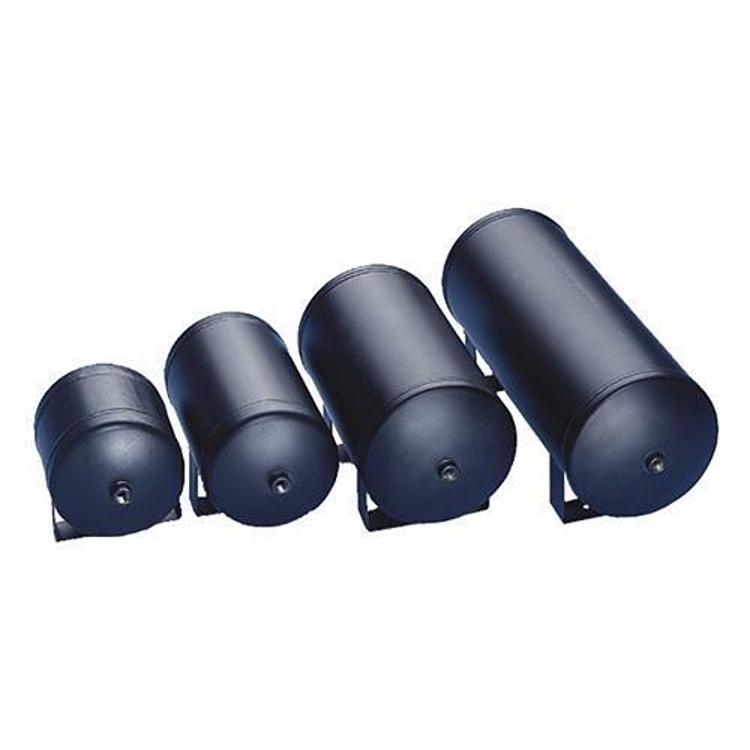

The Firestone Ride-Rite 9243 is a 5 gallon steel air tank with six ports, rated to 150 psi maximum. The tank is coated internally and externally to resist corrosion and is tested to SAEJ10 compliance. It is one of the individual tanks Firestone offers in sizes from 1/4 gallon to 20 gallons.
Key features
- 5 gallon steel tank
- Six ports for fittings
- Maximum air pressure 150 psi
- Coated internally and externally to resist corrosion
- Tested to SAEJ10 compliance
Tank placement and corrosion
A steel air tank stores compressed air for the system, so its location should balance access, airflow and protection from road debris. Mount it on a secure surface, keep it off hot exhaust components, and leave room to reach the ports and any drain. Use brackets that hold it firmly without pinching the shell.
Coatings help resist corrosion, but they are scratched by stone strikes and rubbing straps. Check the coating after each season of use, and touch up any chips before rust starts. Look for moisture inside the tank and drain it when the system allows, since water speeds corrosion. Replace damaged fittings and seal any leaking ports promptly. Keep the mounting hardware tight after the first trail runs.
Specifications
| Brand | Firestone Ride-Rite |
|---|---|
| Part number | 9243 |
| UPC | PWR17609243 |
| Tank volume | 5 gallon |
| Tank material | Steel |
| Number of ports | 6 |
| Maximum air pressure | 150 psi |
| Coating | Internal and external |
| Compliance | SAEJ10 |
Vehicle fitment
It is universal fit and is not tied to a specific vehicle. Confirm the mounting location and port threads against your system before installing it.
Installation notes
Match each port’s fitting to your plumbing and keep system pressure at or below the 150 psi maximum for this tank.
What’s included
The tank has six ports for fittings. Fittings, brackets and mounting hardware need to be sourced for your installation.
