Overview

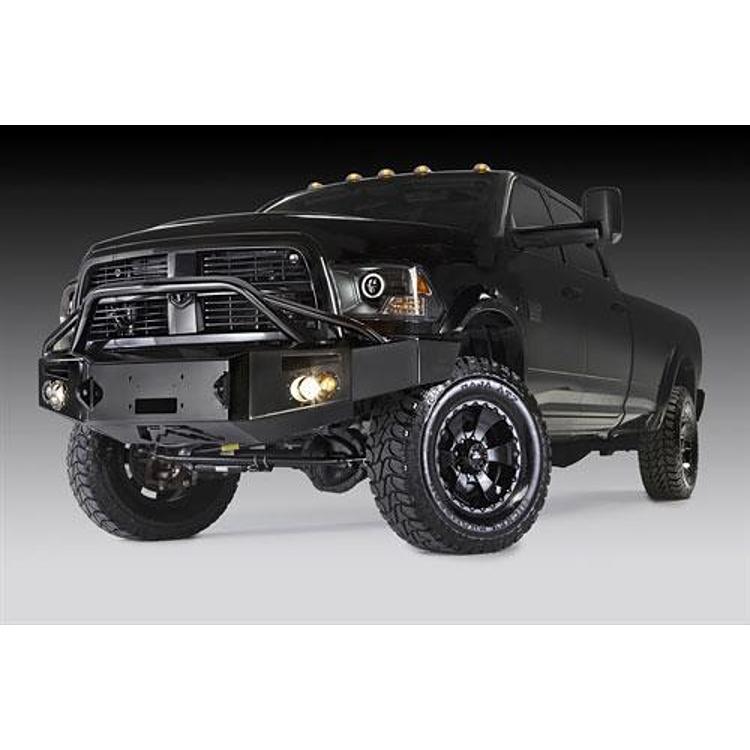

The Fab Fours DR10-A2952-1 is a heavy duty winch front bumper with a pre-runner guard, made for 2010 to 2018 Ram 2500 and 3500 trucks and finished in black powder coat.
The pre-runner guard version adds a guard across the front compared with the no-guard bumper, while keeping the same winch-ready body, air ducts and integrated lighting. The shape is designed to provide more room for tires, which can reduce rubbing on trucks running larger rubber. Integrated fog and turn lights, air ducts and D-ring mounts are part of the design.
Key features
- Winch ready for winches up to 16,500 lb or smaller
- 3/4-inch D-ring mounts
- 1/4-inch boxed mounting system with adjustability
- 90mm fog and 60mm turn indicator lights included
- Integrated air ducts
- 1/4-inch and 3/16-inch steel construction
- Two-stage matte black powder coat; bare steel uses -B instead of -1
- Extra tire clearance
Guard and winch considerations
A pre-runner guard changes how a winch line leaves the bumper, so think about the path before pulling. Keep the fairlead and hook clear of the guard edges, and route the line through the open area that gives the straightest pull. Guard edges can chafe rope or cable, so use a sleeve or protective strap where the line passes over a sharp corner.
The guard also adds surface area that catches mud and brush, so clean the guard and the winch mount after each trip. Check the guard tabs and welds for cracks after hard contact, especially on steep ledges. Winch wiring should run away from hot exhaust and moving suspension parts.
- Protect rope or cable at sharp guard edges
- Clean mud from the guard and mount
- Inspect guard welds after hard contact
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | DR10-A2952-1 |
| UPC | 5810107567 |
| Type | Heavy duty winch front bumper, pre-runner guard |
| Position | Front |
| Width | Full |
| Material | Steel |
| Steel thickness | 1/4-inch and 3/16-inch |
| Finish | Two-stage matte black powder coat |
| Fit type | Direct fit |
| Winch mount | Included (up to 16,500 lb winches) |
| D-ring mounts | Included (3/4-inch) |
| Lights | 90mm fog and 60mm turn indicator lights included |
Vehicle fitment
Fab Fours lists DR10-A2952-1 for the 2010 Dodge Ram 2500 and 3500, plus the 2011 to 2018 Ram 2500 and 3500.
The list does not cover the Ram 1500 or the 2019 and newer Ram heavy-duty trucks. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Plan the winch wiring and a fused power feed when adding a winch. The bumper itself carries the mount, so no separate winch plate is needed.
What’s included
- Heavy duty winch front bumper with pre-runner guard
- Built-in winch mount
- 3/4-inch D-ring mounts
- 90mm fog and 60mm turn indicator lights
Not included: A winch and its wiring.
