Overview

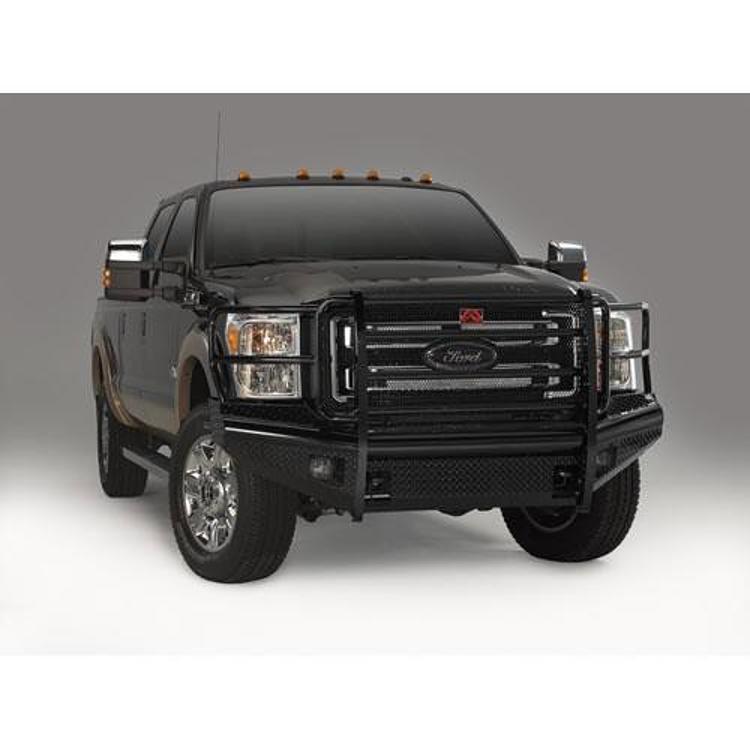

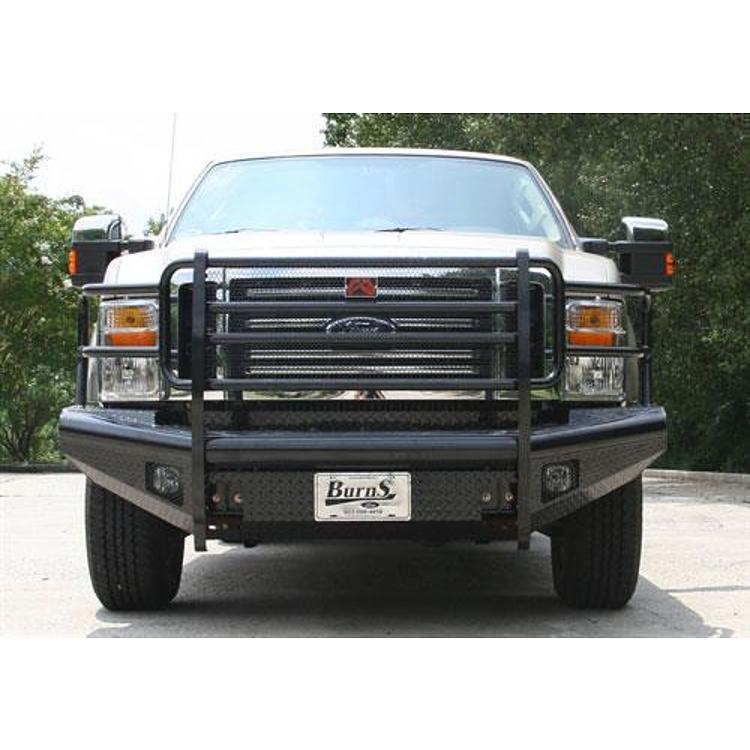

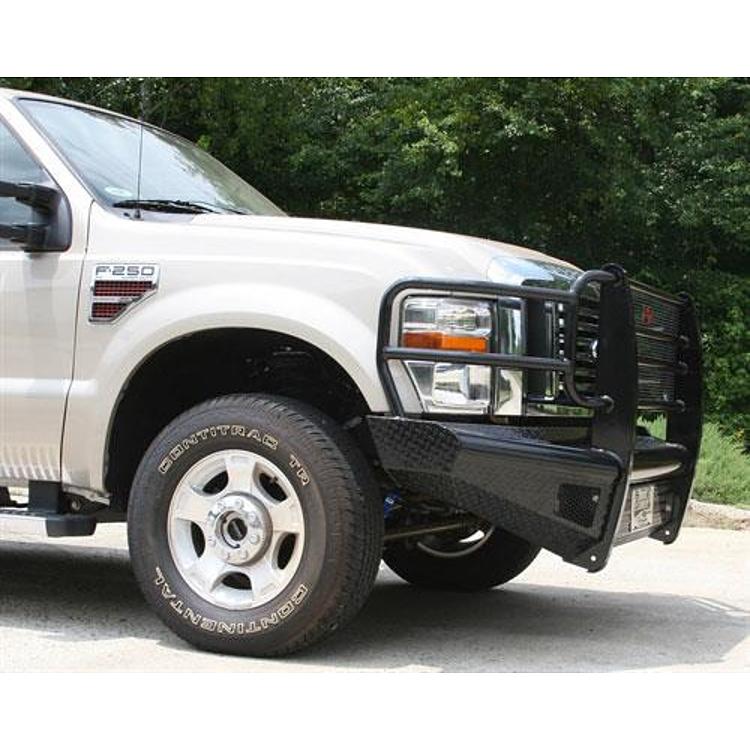

The Fab Fours FS11-S2560-1 is a full grille guard front ranch bumper with tow hooks for the 2011 to 2016 Ford F-250 Super Duty and F-350 Super Duty. It combines pipe and tread plate construction and has a gloss black powder coat.
The ranch bumper design carries the styling the brand is known for in its heavy duty plate bumpers. Each bumper is matched to the body lines of its model truck, with no vertical flanges and tapered edges.
Bolt-on tow hooks are now included, and the bumper has light mounts for the factory fog lights. A bolt-on winch mount is optional for winches of up to 16,500 lb.
Key features
- Full grille guard ranch bumper for 2011 to 2016 Ford F-250 and F-350 Super Duty
- Combination pipe and tread plate construction
- Gloss black powder coat; a -B suffix means bare steel
- Bolt-on tow hooks included
- Light mounts for the factory fog lights
- No vertical flanges and tapered edges
- Optional bolt-on winch mount for winches up to 16,500 lb
- Made in the USA
Tread plate and pipe construction
A bumper that mixes tread plate with pipe gives the lower face of the bumper solid coverage while keeping open sections for weight and visual balance. Plate adds protection where rock and brush strike the front, but it also adds weight at the front axle and can trap mud. The pipe sections are easier to clean and give a lighter look that suits trails with heavy brush.
Joints between plate and pipe are the spots to watch. Welds carry stress from impacts, so check them after each trail trip. The tapered edges help the bumper shed brush, but edges can still scrape the finish and expose bare steel.
- Check plate and pipe welds regularly
- Clean mud from plate seams
- Touch up edge scrapes promptly
- Weigh added front weight against your needs
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | FS11-S2560-1 |
| UPC | 5810102593 |
| Product type | Front ranch bumper with full grille guard |
| Position | Front |
| Width | Full |
| Material | Steel |
| Finish | Gloss black powder coat |
| Construction | Pipe and tread plate |
| Tow hooks | Bolt-on, included |
| Light mounts | Included, for factory fog lights |
| Winch mount | Optional, not included |
| D-ring mounts | Not included |
Vehicle fitment
The FS11-S2560-1 is listed by Fab Fours for the 2011 to 2016 Ford F-250 Super Duty and 2011 to 2016 Ford F-350 Super Duty, as a direct-fit part.
It is not made for earlier or later Super Duty generations. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Tow hooks bolt on. If a winch is planned, the optional bolt-on winch mount is the part that carries a winch up to 16,500 lb.
What’s included
- Front bumper with full grille guard
- Bolt-on tow hooks
- Light mounts for the factory fog lights
Not included: The optional winch mount and the winch.
