Overview

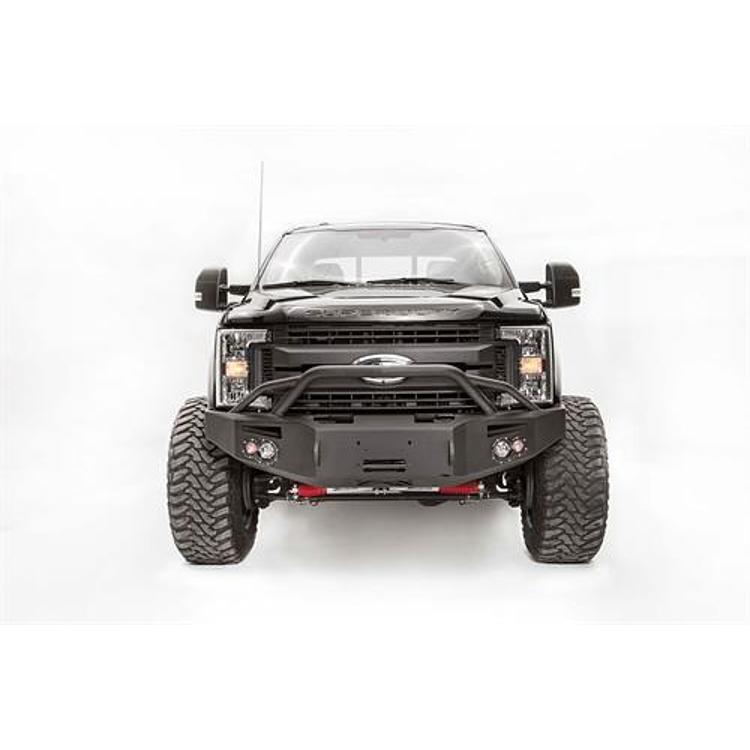

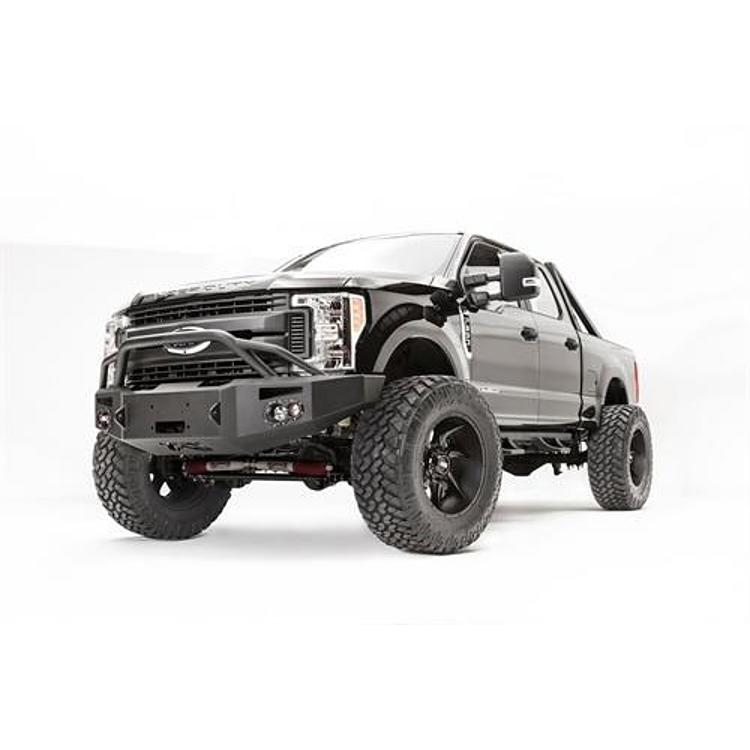

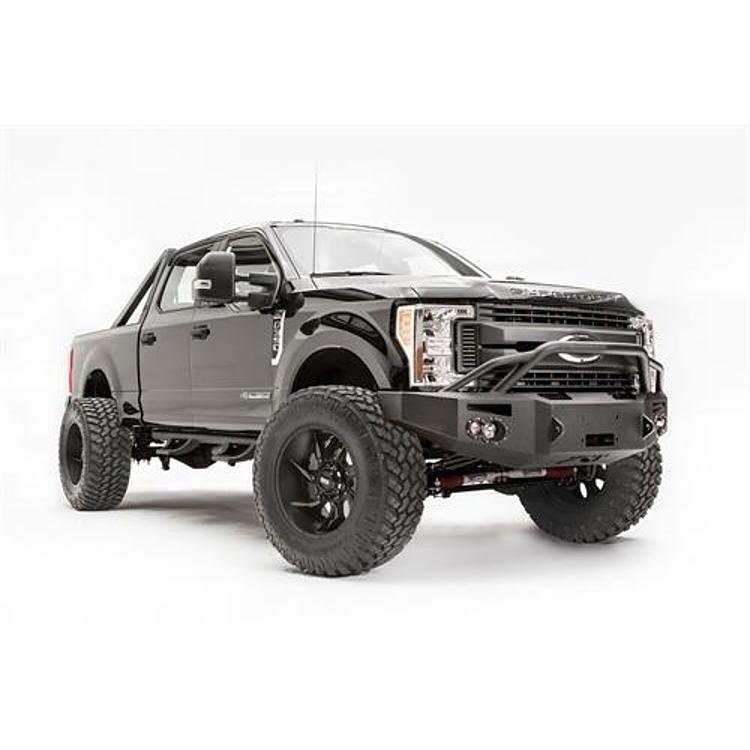

The Fab Fours Premium Winch Front Bumper with Pre-Runner Guard in black, part number FS17-A4152-1, is a winch-ready front bumper that Fab Fours says retains the front parking sensors. It accepts winches up to 16,500 lb.
The bumper provides far more tire clearance. Its 3/4 inch thick D-ring mounts hold up to a 7/8 inch shackle, and 90mm fog and 60mm turn indicator lights are included. It weighs 230-270 lbs.
Key features
- Winch ready for up to a 16,500 lb winch
- Retains front parking sensors
- Pre-Runner guard
- 3/4 inch thick D-ring mounts that hold up to a 7/8 inch shackle
- 2-piece mounting system with adjustability for a custom fit
- 90mm fog and 60mm turn indicator lights included
- 3/16 inch steel with 2 stage black powder coat
- Made in the USA
Shackles and recovery points
Recovery shackles connect the rope or cable to the vehicle, so their rating matters as much as the winch. Choose a shackle sized for the mount’s pin and rated above the load you expect. Bow and D style shackles both work, but the pin should be fully seated and secured against loosening during a pull.
Front bumpers with sensors and light housings need some care in a recovery. Use a soft shackle or strap when the angle could pinch the sensor area, and avoid pulling at odd angles. After recovery, check the sensor readings, light connections and the bumper mounts for signs of movement.
- Pick shackles rated above the expected load
- Seat and secure the shackle pin
- Avoid side loads that twist the mount
- Test the parking sensors after a recovery
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | FS17-A4152-1 |
| UPC | 5810112271 |
| Part type | Premium winch front bumper with Pre-Runner guard |
| Material | 3/16 inch steel |
| Finish | 2 stage black powder coat |
| Winch capacity | Up to 16,500 lb |
| D-ring mounts | 3/4 inch thick, for up to 7/8 inch shackles |
| Lights included | 90mm fog lights and 60mm turn indicator lights |
| Weight | 230-270 lbs |
| Winch mount | Included |
| Origin | Made in the USA |
Vehicle fitment
Check fit against your vehicle’s year, model and trim before buying. This bumper is also made in full guard or no guard versions, so make sure you are getting the Pre-Runner guard style.
This bumper is also offered by Fab Fours in a full guard or no guard version, so confirm the guard style you want. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 2-piece mounting system is adjustable for a custom fit. The bumper retains the front parking sensors.
What’s included
- Premium winch front bumper with Pre-Runner guard
- 90mm fog lights
- 60mm turn indicator lights
Not included: a winch and shackles.
