Overview

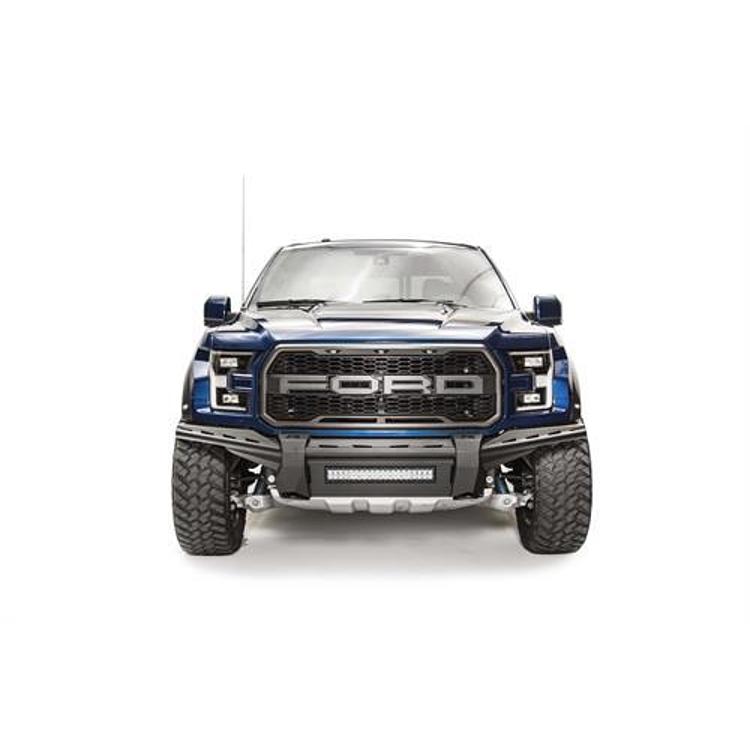

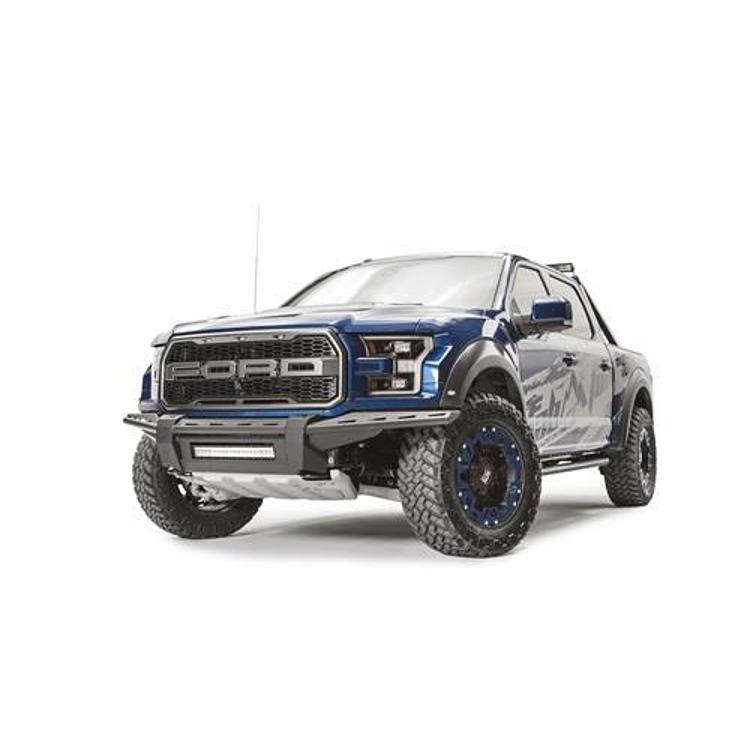

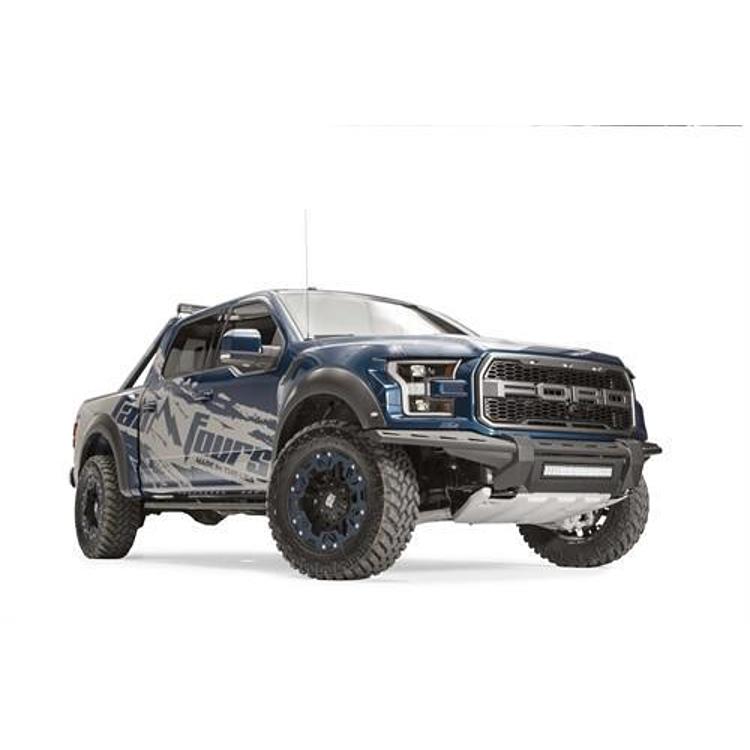

The Fab Fours FF15-D3271-1 is an Aero Series front bumper without a guard for 2015 to 2017 Ford F-150 trucks, an ultra light hybrid of tube and plate steel with a black powder coat.
The Aero Series is an ultra light hybrid bumper. It combines tube and plate steel to keep the weight down, and the fluted castle design gives it an aerodynamic look along with greater tire clearance. The bumper keeps the factory skid plate and has a center mount for a Rigid Industries 20-inch LED light bar. The no guard version weighs 45 lb.
The fit is high and tight and follows the vehicle’s body lines closely. The fluted castles give the bumper its aerodynamic character, and it is available as a no guard or pre-runner guard option.
Key features
- Hybrid of 11 ga. U.S. steel plate and 1.75-inch diameter tubing with .120 wall
- Lightweight: 45 lb with no guard, 55 lb with the pre-runner guard
- Retains the factory skid plate
- Greater tire clearance
- Center mount for a Rigid Industries 20-inch LED light bar (not included)
- High and tight fit following the body lines
- Fab Fours two-stage black powder coat
- Made in the USA
Choosing an ultra light bumper
Ultra light bumpers trade some of the mass of a heavy steel bumper for a lighter build, which can make lifting and handling easier during installation. A tube and plate design puts material where the bumper needs strength while keeping the front end from carrying extra weight. A lighter bumper still needs solid frame brackets to carry the forces of a collision or a recovery.
Driver assist features such as adaptive cruise control and park assist rely on sensors and their mounting positions. If a bumper changes where those sensors sit, the system may need its sensor placement checked or a relocation bracket fitted. Before installation, confirm which features the truck has and plan for any recalibration a qualified shop will need to perform.
Lighting is the other common addition. A center light bar mount needs a clear path for the wiring, and the harness should be routed away from hot or moving parts. Check the bolt-on brackets and frame attachments after the first drives, and look over the powder coat for chips where the bumper meets the brackets.
Specifications
| Brand | Fab Fours |
|---|---|
| Part number | FF15-D3271-1 |
| UPC | 5810115159 |
| Type | Aero Series front bumper, no guard |
| Position | Front |
| Width | Full |
| Material | 11 ga. U.S. steel and tubing, 1.75-inch diameter, .120 wall |
| Finish | Two-stage black powder coat |
| Weight, no guard | 45 lb with no guard |
| Dimensions | Length 84 in, height 30 in, width 26 in |
| Fit type | Direct fit |
| Light mounts | Included |
| Winch mount | Not included |
Vehicle fitment
Fab Fours lists FF15-D3271-1 for the 2015 to 2017 Ford F-150.
The 2018 F-150 and the 2009 to 2014 trucks are not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bumper bolts on with provided brackets that tie into the frame. Fab Fours offers an optional relocation bracket, part M3850-1, to retain factory technology features such as Adaptive Cruise Control and Park Assist.
What’s included
- Aero Series front bumper without guard in black powder coat
- Frame brackets for bolt-on installation
Not included: The LED light bar and the optional M3850-1 relocation bracket.
