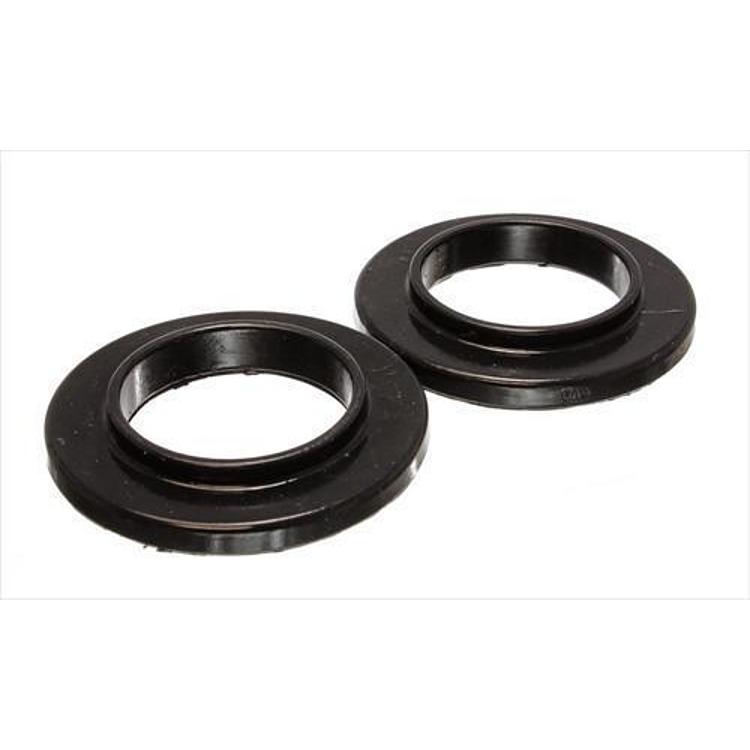

Energy Suspension Rear Coil Spring Isolator Set – 9.6104G

Energy Suspension

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Black rear coil spring isolator set in HYPER-FLEX polyurethane
  • Rear lower position per position field
  • Covers the 1995–2000 Tacoma, 1996–2002 4Runner and 1995 Pickup
  • Part number 9.6104G, UPC 703639708773

Description

Overview

The Energy Suspension 9.6104G is a black rear coil spring isolator set for Toyota trucks. Its fitment data covers the 1996–2002 Toyota 4Runner, the 1995 Toyota Pickup and the 1995–2000 Toyota Tacoma, in the trims named for each model.

Energy Suspension describes these HYPER-FLEX isolators as a simple, inexpensive way to gain a chassis lift of .75 in. to 2.5 in., depending on the application. The position field reads rear lower.

Key features

  • Black finish
  • Rear lower position
  • HYPER-FLEX performance polyurethane
  • Chassis lift of .75 in. to 2.5 in., depending on application

Rear suspension checks

Rear coil spring isolators sit under the spring at the lower seat, where they absorb vibration and keep the spring from grinding into its pad. Because the isolators change the rest height of the rear end, they also change the angle of the driveshaft joints. A steeper angle wears the joints faster, so the driveline is worth checking after installation.

Rear shocks may need attention too. A taller ride height can shorten the travel available to the shock, so inspect the shocks for leaks and worn bushings. Check the rear brake hoses for stretch and clearance, and confirm the lower spring seat bolts are tight after the first drives.

  • Measure driveline angles after fitting
  • Inspect rear shock bushings and mounts
  • Check brake hoses for slack and rubbing
  • Re-torque lower seat bolts after a short drive

Specifications

Brand Energy Suspension
Part number 9.6104G
UPC 703639708773
Material HYPER-FLEX performance polyurethane
Color Black
Position Rear lower
Lift .75 in. to 2.5 in., depending on application

Vehicle fitment

The fitment data covers the 1996–2002 Toyota 4Runner (Base, Limited and SR5 trims), the 1995 Toyota Pickup (DLX and SR5 trims) and the 1995–2000 Toyota Tacoma (Base, Limited, Pre Runner and SR5 trims).

It fits the 1996–2002 Toyota 4Runner in Base, Limited and SR5 trims, the 1995 Toyota Pickup in DLX and SR5 trims, and the 1995–2000 Toyota Tacoma in Base, Limited, Pre Runner and SR5 trims. Later 4Runner years and Tacoma years after 2000 fall outside that range. Check your year, model and trim against the fit before buying.

Installation notes

Chassis lift changes rear geometry, so check driveline angles after fitting.

What’s included

A rear set. Compare the parts in the box against the installation steps before starting.

SKU: ENE9.6104G Category:

Specification

Shipping weight 0.50 lbs
Package dimensions 7.00 × 5.90 × 2.60 in
brands

Fitment

VehicleYearsTrims
Toyota 4Runner1996–2002Base, Limited, SR5
Toyota Pickup1995DLX, SR5
Toyota Tacoma1995–2000Base, Limited, Pre Runner, SR5

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Energy Suspension 9.6104G fit a 1995 Toyota Tacoma?

Yes. It fits the 1995–2000 Toyota Tacoma in Base, Limited, Pre Runner and SR5 trims, so a 1995 Tacoma falls within that range. Confirm your trim matches the fit before ordering.

Is this a front or rear isolator set?

It is a rear coil spring isolator set, and the position field reads rear lower. Part number 9.6104G and UPC 703639708773 identify the black version for checking against your existing parts.

What lift height does it provide?

It provides a chassis lift of .75 in. to 2.5 in., depending on the application. Confirm the height for your Toyota before ordering.

How do I know the rear isolators are worn?

Look for cracking, flattening or missing pieces in the polyurethane, and listen for knocking or clunking over bumps. Compare both sides, since uneven wear points to a seat or spring problem. Replace worn isolators in pairs so the rear end sits level.
