Overview

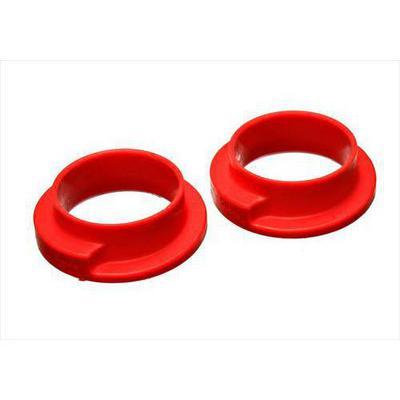

The Energy Suspension Rear Coil Spring Isolator Set (part number 9.6115R) is a set of rear coil isolators made from HYPER-FLEX performance polyurethane. It gives a simple, low-cost chassis lift from three-quarter inch to 2.5 inches, depending on the application.
The isolator sits on the rear coil spring to raise the chassis, so the lift depends on the vehicle and the spring it sits on. Energy Suspension also makes coil lift isolators for other popular trucks and Jeeps.
Key features
- HYPER-FLEX performance polyurethane
- Rear coil spring isolator set
- Lift from three-quarter inch to 2.5 inches, per application
- Simple, low-cost chassis lift
Rear lift and driveline angles
A rear coil isolator raises the spring seat, which changes how the rear axle sits and how the shock works. Because the spring is pushed up, the shock may need to be checked for length and for full extension, and the bump stop may engage sooner than before. Look at the brake lines and the flex of the rear brake hoses after installation, since the axle moves in a different arc.
Driveline angles also change when the rear end rises. Check the pinion angle and the driveshaft for vibration on the first drives, and watch for clunking when the vehicle pulls off the line. Isolators made from firm polyurethane transmit more noise than rubber, so expect a little more road feel. Re-torque the fasteners after the first few miles, and recheck the setup if the vehicle is later loaded or fitted with a heavier bumper.
Specifications
| Brand | Energy Suspension |
|---|---|
| Part number | 9.6115R |
| Position | Rear |
| Material | HYPER-FLEX polyurethane |
| Lift | Three-quarter inch to 2.5 inches, depending on the application |
Vehicle fitment
Lift depends on the application and the spring. Confirm the application and lift amount before buying, and check fit for your truck or Jeep’s year, model and trim.
Confirm the application and the lift amount with Energy Suspension before ordering. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
An isolator changes the height of the coil spring seat, so check the driveline angles and the shock length after installation.
What’s included
The rear coil spring isolator set as titled.
