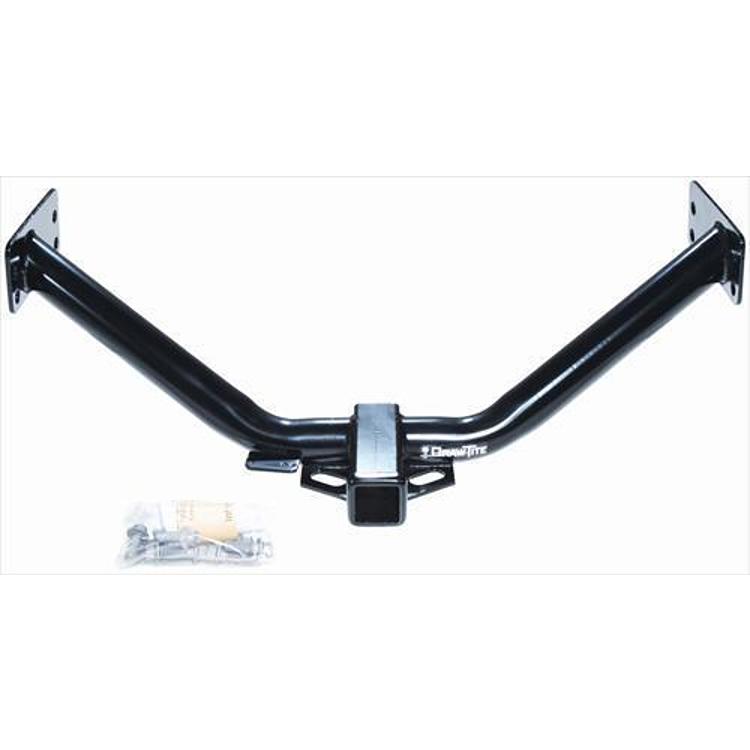

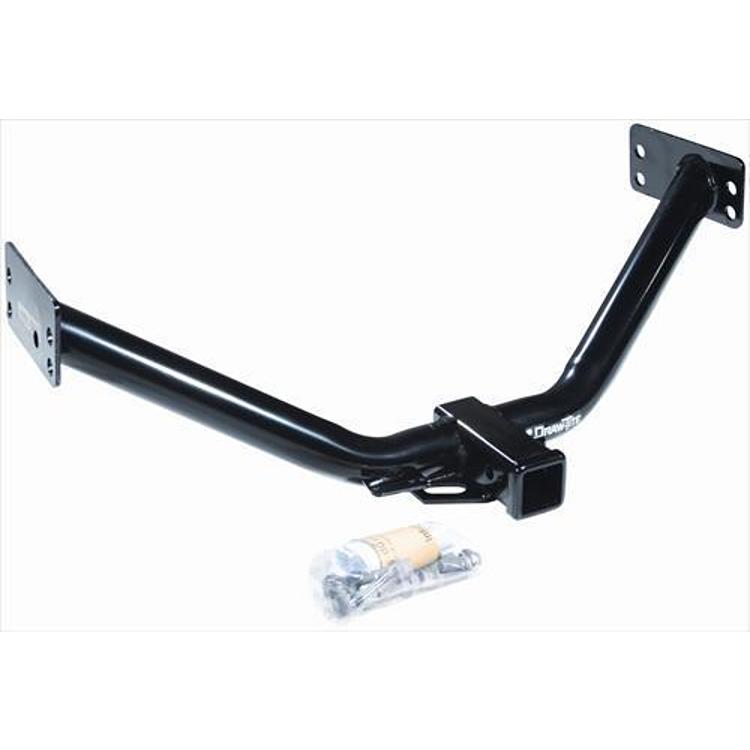

DrawTite Class III/IV Round Tube Max-Frame Trailer Hitch – 75614

DrawTite

Shop Acura MDX Receiver Hitches on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • DrawTite 75614 Class III/IV round tube max-frame rear hitch
  • Fits 2007–2012 Acura MDX Base models
  • 4000 lb GTW and 5000 lb weight distributing rating
  • Exhaust must be temporarily lowered for installation

Description

Overview

The DrawTite 75614 is a round tube max-frame Class III/IV trailer hitch for the 2007–2012 Acura MDX in Base trim. It mounts at the rear and provides a 2 inch by 2 inch receiver with a 4000 lb gross trailer weight rating and 400 lb tongue weight.

With weight distribution, the rating is 5000 lb trailer weight and 500 lb tongue weight. DrawTite’s details note that the exhaust must be temporarily lowered during installation.

Key features

  • Round tube max-frame design
  • 4000 lb GTW and 400 lb tongue weight
  • 5000 lb weight distributing trailer rating and 500 lb tongue weight with distribution
  • 2 inch by 2 inch receiver opening
  • Nationwide lifetime warranty from DrawTite
  • All-welded construction with no adapters

Exhaust clearance and heat

Exhaust work is the step most people underestimate on this type of install. Lowering the pipe means working around hangers, heat shields and clamps, so give the system time to cool and avoid bending the pipe. Note how the exhaust sits before removing any hanger so it returns to the same position when raised.

A round tube max-frame hitch sits low at the rear, so keep the pipe clear of the tube once the hitch is set. Use the same hanger positions when raising the exhaust back into place. Look for soot streaks or leaks at joints after the first drive, since a disturbed joint can seal poorly and should be retightened.

  • Let the exhaust cool fully before touching any clamp
  • Photograph the hanger positions before removing them
  • Replace cracked rubber hangers at the same time
  • Check tailpipe alignment after the first test drive

Specifications

Brand DrawTite
Part number 75614
UPC 742512756142
Hitch class Class III/IV
Tube style Round tube max-frame
Receiver size 2 inch x 2 inch
Position Rear
Gross trailer weight (GTW) 4000 lb
Tongue weight 400 lb
Weight distributing trailer weight 5000 lb
Weight distributing tongue weight 500 lb
Install note Exhaust must be temporarily lowered

Vehicle fitment

It fits the 2007–2012 Acura MDX in Base trim.

Acura MDX years outside 2007–2012 are not on this list, and MDX trims other than Base are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Let the exhaust cool before lowering it, and support the vehicle safely while working underneath.

What’s included

Look over the included parts against the install steps before you begin.

SKU: DRA75614 Category:

Specification

Shipping weight 29.00 lbs
Package dimensions 38.50 × 17.90 × 11.90 in
brands

Fitment

VehicleYearsTrims
Acura MDX2007–2012Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the DrawTite 75614 fit a 2010 Acura MDX?

Yes. It fits the 2007–2012 Acura MDX in Base trim, and a 2010 model falls within that range. Trims other than Base are not covered, so confirm your trim before ordering.

Does the 75614 need the exhaust moved?

Yes. DrawTite's details say the exhaust must be temporarily lowered for installation. Plan for that step before starting the job, and review the specification table for the rated numbers.

What are the towing ratings of the 75614?

DrawTite rates the 75614 at 4000 lb gross trailer weight and 400 lb tongue weight. With weight distribution, the ratings are 5000 lb trailer weight and 500 lb tongue weight. The receiver opening is 2 inches square.

Should the exhaust be re-hung after the hitch goes on?

Yes. Once the hitch is bolted in and the exhaust is raised back into position, check that the pipe clears the hitch tube and the rear bumper. Inspect exhaust hangers for stretching or cracks, and replace worn rubber mounts so the pipe does not rest on the hitch.
