DrawTite Class II Frame Trailer Hitch – 36523

DrawTite

Shop DrawTite Receiver Hitches on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • DrawTite Class II frame trailer hitch, part number 36523
  • Rear 1.25-inch receiver, light duty
  • 3500 lb gross trailer weight and 300 lb tongue weight
  • Drawbar, pin and clip included
  • Drilling required, 30 min install time

Description

Overview

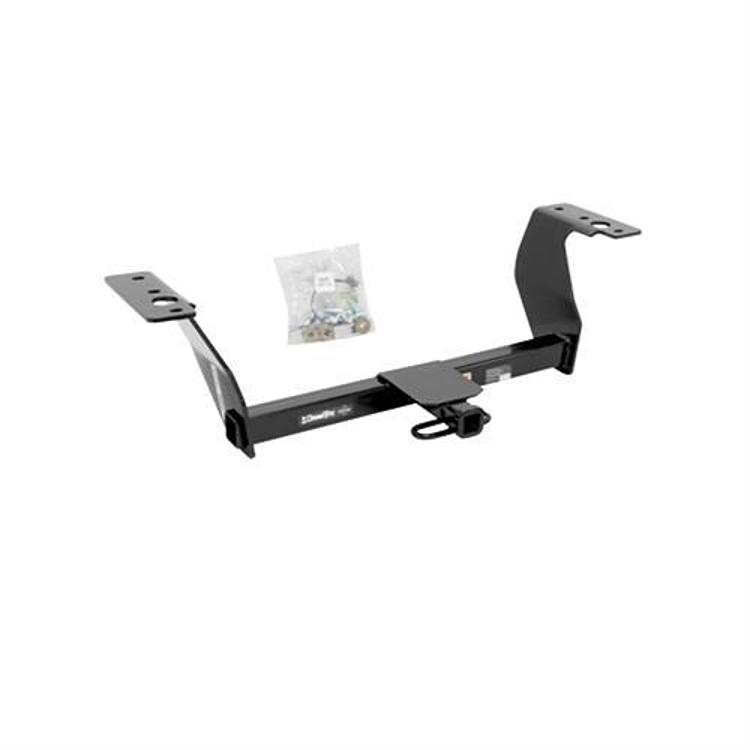

The DrawTite Class II frame trailer hitch, part number 36523, is a light duty rear receiver hitch with a 1.25-inch receiver. It is rated for a 3500 lb. gross trailer weight and a 300 lb. tongue weight, and it mounts to the frame.

The hitch is all welded and comes with a drawbar, pin and clip. Plan on 30 min for installation. It carries a nationwide lifetime warranty.

Key features

  • Class II light duty rating
  • Frame-mounted rear hitch
  • 1.25-inch receiver
  • All welded construction
  • Drawbar, pin and clip included

Light duty towing basics

Class II hitches suit light trailers, small utility loads and bike racks where a 1.25-inch receiver is adequate. Before installation, confirm the trailer’s weight falls within the hitch limits and that the vehicle’s own towing rating allows it. Frame mounting works well on many older trucks and body-on-frame SUVs, but the frame must be sound at the drilled points.

After installation, tighten all hardware to the correct torque for its size and recheck after the first few trips. Inspect welds for cracks and look for rust around drilled holes, which can spread if left untreated. A drawbar that shows bending or a pin with a worn detent should be replaced. Keep the hitch clean and coated to slow corrosion.

  • Confirm the frame is sound before drilling
  • Recheck torque after the first trips
  • Replace bent drawbars and worn pins

Specifications

Brand DrawTite
Part number 36523
UPC 742512365238
Weight class Class II (light duty)
Mounting Frame, rear
Receiver size 1.25 in
Gross trailer weight 3500 lb
Tongue weight 300 lb
Install time 30 min
Drilling Required
Included Drawbar, pin and clip

Vehicle fitment

No vehicle years, makes or models are named for this hitch. Use DrawTite’s vehicle guidance to match a model before selecting it.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation is listed at 30 min and requires drilling. Confirm your frame can take drilled holes before starting, and check the hitch’s Class II limits against your load.

What’s included

The drawbar, pin and clip are included. Check the package contents against your installation before starting. A hitch ball will be needed to tow.

SKU: DRA36523 Category:

Specification

Shipping weight 27.00 lbs
Package dimensions 38.00 × 15.00 × 11.00 in
brands

Questions & Answers

What is DrawTite part 36523?

Part 36523 is a DrawTite Class II frame trailer hitch with a 1.25-inch receiver, rated for a 3500 lb. gross trailer weight and a 300 lb. tongue weight. Its UPC is 742512365238.

Does it include a drawbar?

Yes. The hitch includes a drawbar, a pin and a clip. No other included parts are named for part 36523.

Does installation require drilling?

Yes. Drilling is required for this hitch, and installation takes 30 min. Confirm that your frame can take drilled holes before you start, and check the Class II limits against your load.

Can a Class II hitch be upgraded later?

Upgrading usually means moving to a hitch with a higher class and receiver size, and that often involves a different frame connection and new hardware. Check the vehicle's towing capacity first, because the vehicle may limit the load before the hitch does.
