Dorman Drum Brake Wheel Cylinder – W610166

Dorman

$10.99In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear wheel cylinder with cast iron housing and 3/4 inch bore
  • Bleeder screw included
  • Fits 1991–1994 Cherokee XJ, 1991–1992 Comanche, 2001–2006 Wrangler TJ and 2004–2006 Wrangler LJ

Description

Overview

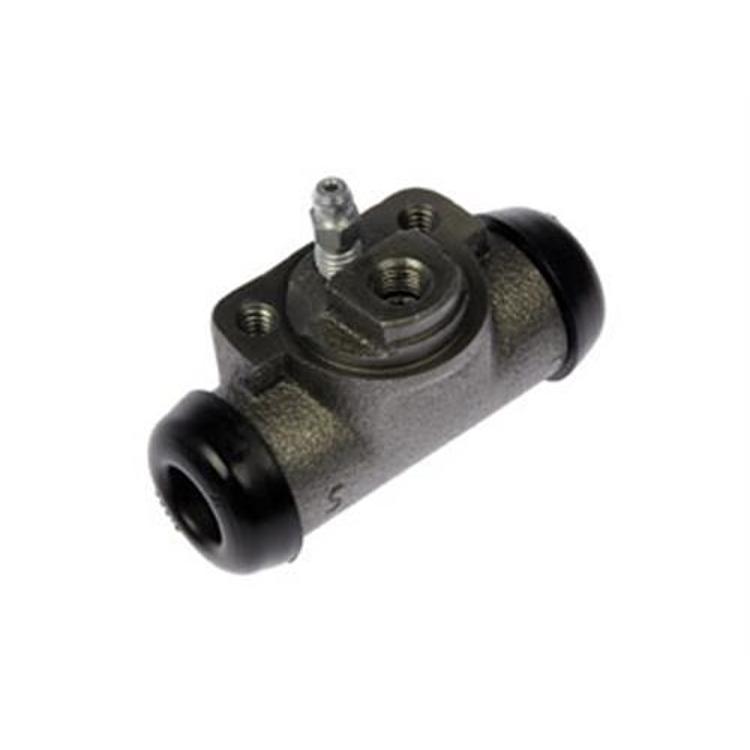

The Dorman W610166 is a rear drum brake wheel cylinder with a cast iron housing and a 3/4 inch bore. It fits the 1991–1994 Jeep Cherokee (XJ), the 1991–1992 Comanche, the 2004–2006 Wrangler (LJ) and the 2001–2006 Wrangler (TJ).

Dorman says normal wear may cause piston seals to leak; the cylinder is built to fit specific applications.

Key features

  • Rear wheel cylinder
  • Cast iron housing
  • 3/4 inch bore
  • Bleeder screw included

Bleeding after wheel cylinder work

A rear drum wheel cylinder pushes the brake shoes outward when the pedal is pressed. Inside the cylinder, piston seals keep fluid from leaking past the piston. When seals wear, fluid can seep onto the shoes and reduce braking.

After replacing the cylinder, bleed the system at the wheel to remove air. Work in the correct order from the farthest wheel, and keep the reservoir topped up so air does not re-enter the lines. Check that the pedal feels firm before driving.

Inspect the drum and shoes at the same time, since any fluid contamination needs cleaning or replacement. Adjust the parking brake after the repair and confirm both rear wheels release together.

  • Check the drum for fluid marks
  • Adjust the shoes after the repair

Specifications

Brand Dorman
Part number W610166
UPC 885484088122
Product type Drum brake wheel cylinder
Position Rear
Housing Cast iron
Bore size 3/4 inch
Bleeder screw Included
Fit type Direct fit

Vehicle fitment

It fits the 1991–1994 Jeep Cherokee (XJ), 1991–1992 Jeep Comanche, 2004–2006 Jeep Wrangler (LJ) and 2001–2006 Jeep Wrangler (TJ).

Earlier TJ models and later XJ models are not on the list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Bleeding the brake system is needed after replacing a wheel cylinder.

What’s included

A bleeder screw.

SKU: DORW610166 Category:

Specification

Shipping weight 0.96 lbs
Package dimensions 3.80 × 2.50 × 2.30 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1991–1994Base, Briarwood, Country, Laredo, Limited, SE, Sport
Jeep Comanche1991–1992Base, Eliminator, Pioneer
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)2001–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is the Dorman W610166 made of?

The housing is cast iron. It is a rear drum brake wheel cylinder with a 3/4 inch bore, so match the bore against your original cylinder before ordering.

What bore size is the W610166?

It has a 3/4 inch bore. Match this size against your original rear wheel cylinder before ordering, since the bore must match for the brake to work correctly.

Which Wranglers does the W610166 fit?

It fits the 2001–2006 Wrangler (TJ) and the 2004–2006 Wrangler (LJ). The YJ and JK are not covered by this cylinder, so confirm your model before ordering.

Does the W610166 include a bleeder screw?

Yes. A bleeder screw comes with the wheel cylinder, so you can use the new one rather than reusing the old screw when bleeding the system after installation.

Should the brake shoes be checked when the wheel cylinder is replaced?

Yes. Inspect the shoes, drums and springs at the same time, since fluid leaking onto the lining can ruin the friction surface. Replace any shoe that is soaked with fluid.
