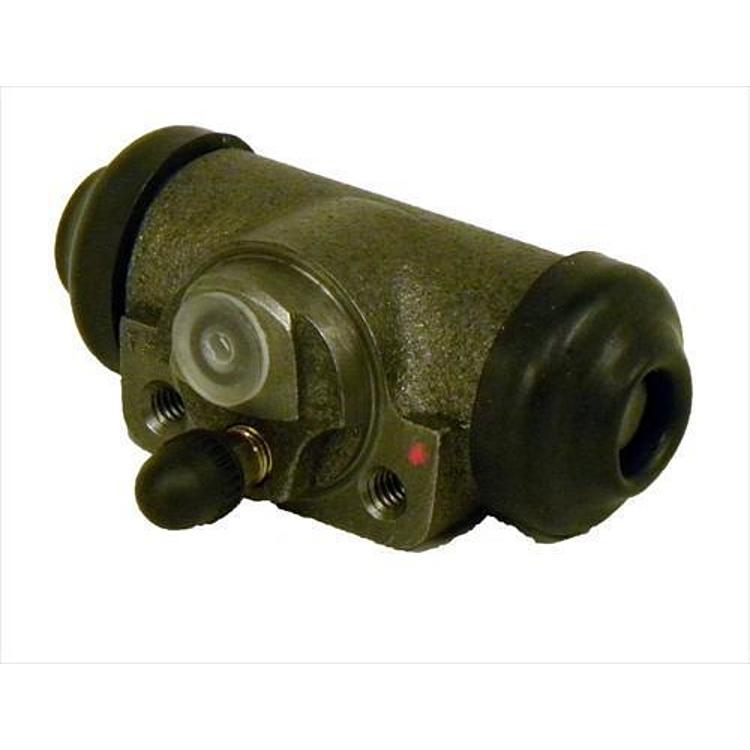

Crown Automotive Wheel Cylinder – 4423601

Crown Automotive

$28.54In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear drum brake wheel cylinder for the Dana 35, driver or passenger side
  • Fits 1990–2001 Cherokee XJ, 1990–1995 Wrangler YJ and 1997–2000 Wrangler TJ
  • Direct-fit Crown Automotive replacement

Description

Overview

The 4423601 is a rear drum brake wheel cylinder for the Dana 35 axle, usable on the driver or passenger side. It fits the 1990–2001 Jeep Cherokee (XJ), the 1990–1995 Wrangler (YJ) and the 1997–2000 Wrangler (TJ).

The wheel cylinder pushes the brake shoes against the drum when the pedal is pressed; leaks mean it is due for replacement.

Key features

  • Rear wheel cylinder for the Dana 35 axle
  • Driver or passenger side
  • Direct-fit replacement

Recognizing a failing cylinder

Rear drum wheel cylinders fail mostly from internal seal wear or leaks at the boot. A leaking cylinder shows up as fluid on the inside of the drum or backing plate, a pedal that sinks slowly, or shoes that do not retract evenly. Because the cylinder pushes both shoes outward, a failure on one side can cause the vehicle to pull during braking.

When replacing the cylinder, check the brake shoes for fluid contamination and inspect the drum surface. Shoes soaked with fluid should be replaced, and the adjuster and springs are often serviced at the same time. Check the hose connections as well. Bleed the system after installation, and top off fluid only with the type marked on the reservoir cap.

Specifications

Brand Crown Automotive
Part number 4423601
UPC 848399003901
Product type Drum brake wheel cylinder
Position Rear
Axle Dana 35
Side Driver or passenger
Fit type Direct fit

Vehicle fitment

It fits the 1990–2001 Jeep Cherokee (XJ), the 1990–1995 Jeep Wrangler (YJ) and the 1997–2000 Jeep Wrangler (TJ).

The 2001–2006 TJ years and the LJ are not on this part’s list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Bleeding the brake system is needed after replacing a wheel cylinder.

SKU: CRO4423601 Category:

Specification

Shipping weight 0.94 lbs
Package dimensions 3.00 × 2.00 × 0.90 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1990–2001Base, Briarwood, Classic, Country, Laredo, Limited, Pioneer, SE, Sport
Jeep Wrangler (TJ)1997–2000SE, Sahara, Sport
Jeep Wrangler (YJ)1990–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Crown 4423601 fit a Jeep TJ?

Only 1997–2000 models are covered. A 2001–2006 TJ is not a fit for this part, so check the model year before ordering.

Which axle is the 4423601 for?

It is a rear wheel cylinder for the Dana 35 axle and works on the driver or passenger side. One part number covers either rear wheel on the vehicles it fits.

Does the 4423601 work on both sides?

Yes. The part is a driver or passenger side unit, so one part number covers both rear wheels on the vehicles it fits. Confirm fit for your vehicle's year, model and trim before ordering.

Which Cherokee years does the 4423601 cover?

It fits the 1990–2001 Jeep Cherokee (XJ), the 1990–1995 Wrangler (YJ) and the 1997–2000 Wrangler (TJ). Confirm fit for your vehicle's year, model and trim before ordering.

How can you tell the wheel cylinder needs replacing?

Fluid on the inside of the drum or backing plate is the clearest sign. A soft pedal, uneven braking, or pulling to one side can also point to a failing cylinder, so inspect it before the brakes are used on the road.
