Overview

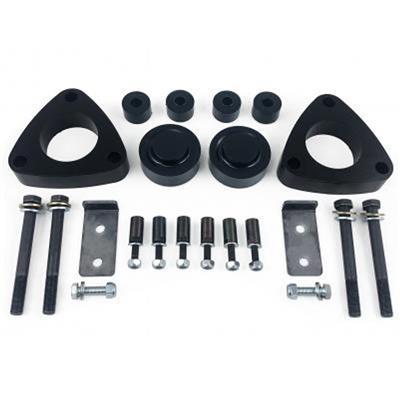

The Daystar KT09136BK is a front lift kit for the 2013–2018 Toyota RAV4, in both 2-wheel and 4-wheel drive. It allows 29.5-inch tires on the stock wheels while keeping the factory ride. The kit uses progressive-rate polyurethane coil spring spacers that install on top of the factory strut.
The kit installs as a bolt-on job with no drilling and no cutting. It is a front-position part for the RAV4 LE, SE, XLE, Limited, Platinum, Adventure, EV and Hybrid trims.
Key features
- Progressive-rate polyurethane coil spring spacers
- Installs on top of the factory strut
- Allows 29.5-inch tires on the stock wheels
- Bolt-on, no drilling, no cutting
- Front position
Spacers and front suspension geometry
Coil spring spacers raise the vehicle by sitting between the body and the top of the spring or strut, so they lift the front end without changing the spring or shock itself. On a RAV4 with larger tires, the added height changes steering and driveline angles slightly, which is why the front end deserves a check after installation. Polyurethane spacers hold their shape well, but they are firmer than rubber and can transmit more road noise on rough pavement.
Before buying, consider how much clearance you need and whether the rest of your setup, such as tires, wheel offset and alignment, will work with the new height. Inspect the factory strut mounts and bump stops for wear when you install, since they carry the added load. A wheel alignment after installation helps keep tire wear even and steering feel consistent. Recheck the torque on all fasteners after the first few drives.
Specifications
| Brand | Daystar |
|---|---|
| Part number | KT09136BK |
| Position | Front |
| Spacer material | Polyurethane, progressive rate |
| Maximum tire size | 29.5 inches on stock wheels |
| Installation | Bolt-on, no drilling, no cutting |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2013–2018 Toyota RAV4 in LE, SE, XLE, Limited, Platinum, Adventure, EV, Hybrid SE, Hybrid XLE and Hybrid Limited trims.
The kit is a set of coil spring spacers, which is a different design from a body lift. Confirm fit for your vehicle’s year, model and trim before ordering. RAV4 models from other years are not covered.
