Overview
The Daystar KJ04503BK is a 1 inch body lift kit for 1976–1979 Jeep CJ5 and CJ7 models. It uses complete replacement body mounts instead of spacer blocks placed over factory mounts, and each mount adds 1 inch of height to raise the body.
Daystar’s body lifts are built for skid plate or belly-up setups, engine conversions, and larger tires and wheels that need more room. The polyurethane mounts have black bushings, resist vehicle fluids and road grime, and keep the body isolated from chassis noise and vibration while holding it aligned with the frame.
Key features
- Complete replacement body mounts that add 1 inch of height
- Polyurethane spacer material resistant to vehicle fluids and road grime
- Black bushings isolate the body from chassis noise and vibration
- Maintains proper body alignment with the frame
- All necessary hardware included
- Some applications include transfer case linkage brackets
- No separate changes required for the fuel filler neck, wiring or steering sector shaft
- Limited lifetime warranty
Living with an older CJ
Older CJ models have been in use for decades, so the frame, body mounts and surrounding hardware often show age. Before a body lift goes on, look over the frame rails and mounting points for rust, cracks or old repairs. Solid mounting surfaces help the new mounts seat correctly and keep the body aligned during trail use.
A body lift changes the position of the body on the frame, so lines and linkages that run between them need a fresh look. Recheck brake lines, throttle and shifter linkage, and fuel lines after the body moves, and add clamps where lines look stretched. Long drives on rough roads are a good time to re-check fasteners.
- Inspect frame rails for rust before lifting
- Check brake and fuel lines for slack
- Re-tighten body bolts after the first drives
- Confirm alignment before regular use
Specifications
| Brand | Daystar |
|---|---|
| Part number | KJ04503BK |
| UPC | 814423011426 |
| Lift height | 1 inch |
| Spacer material | Polyurethane |
| Bushing color | Black |
| Fitment label | Direct Fit |
| Listed vehicles | Jeep CJ5 and CJ7, 1976–1979 (Base, Golden Eagle, Renegade) |
| Included hardware | All necessary hardware |
| Warranty | Limited lifetime warranty |
Vehicle fitment
It fits the 1976–1979 Jeep CJ5 and the 1976–1979 Jeep CJ7 in the Base, Golden Eagle and Renegade trims. Confirm that your trim matches before installing.
Model years after 1979 and other Jeep models are outside this fit, so verify the year and model before ordering.
Installation notes
Plan a check of the transfer case linkage brackets on applications that use them, and inspect the components around the body mounts for wear or cracking, especially on an older CJ. Because the body is raised 1 inch, a qualified installer should check body position and alignment once the lift is complete.
What’s included

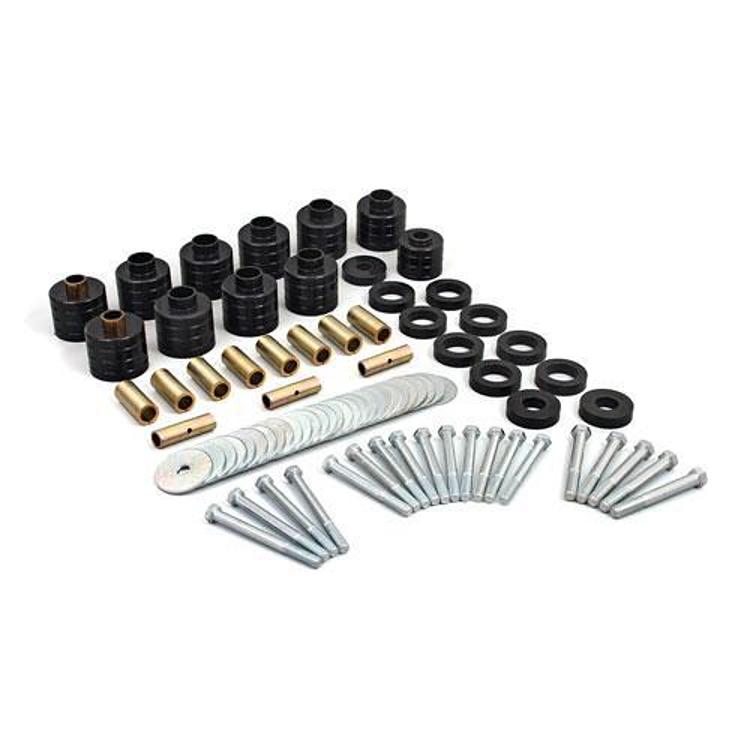

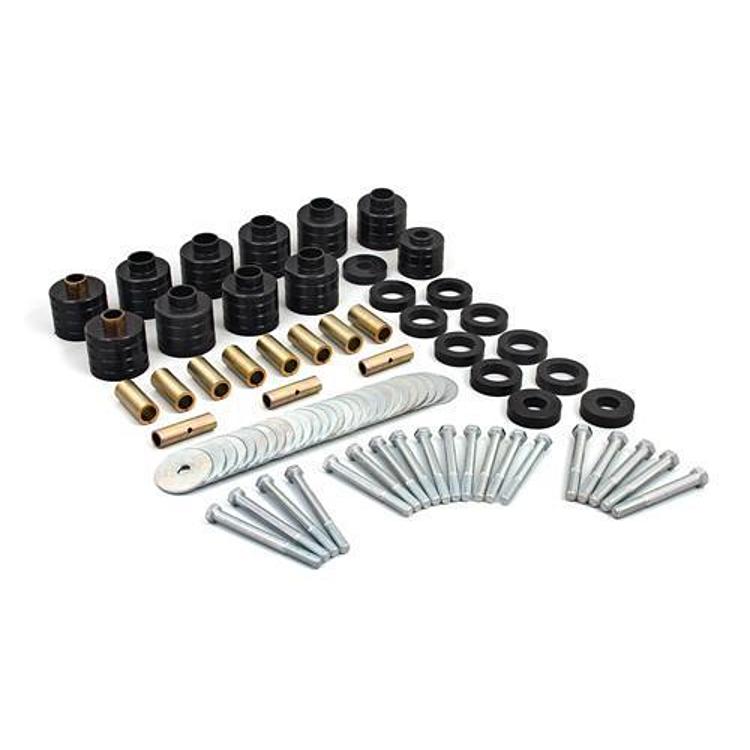

The kit includes complete body mounts with black bushings, all necessary hardware, and transfer case linkage brackets on applications that use them. It carries a limited lifetime warranty.
