Overview

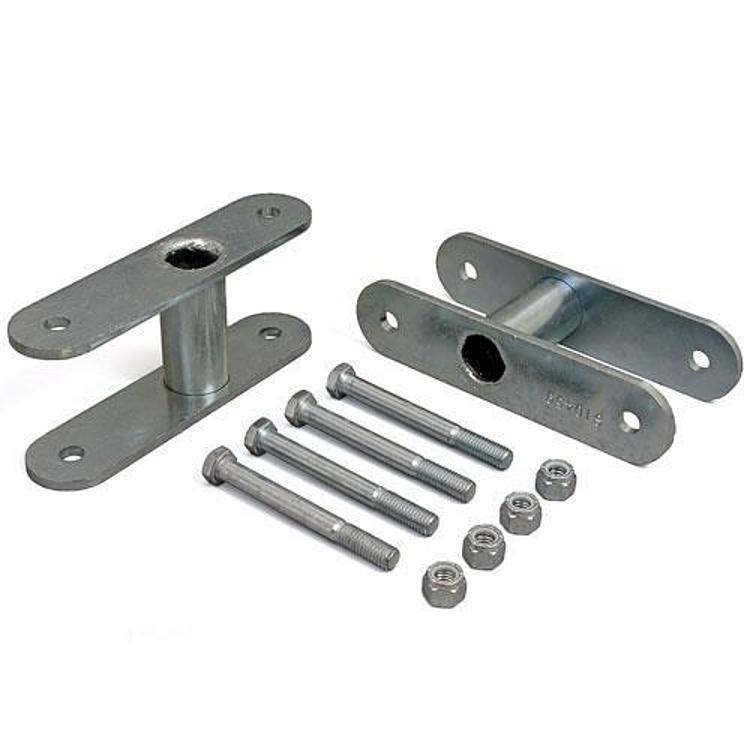

The Daystar KJ60002 is a non-greaseable 1.5 inch lift Super Shackle set for the front and rear of Jeep CJ models. It fits the 1959–1975 CJ5 and CJ6, the 1959–1966 CJ3, and the 1949–1958 Willys CJ-2, CJ-3, CJ-5 and CJ-6.
Shackles are the links that hang each leaf spring from the frame, so a shackle set with added lift changes the suspension’s ride height. This non-greaseable version keeps the factory bushings, has a zinc-plated finish, and is sold in pairs.
Key features
- Non-greaseable design that keeps the factory bushings
- 1.5 inch lift at the front and at the rear
- Zinc-plated finish
- Sold in pairs; hardware is not included
What shackle lift changes
A shackle links the end of a leaf spring to the frame, so changing its length raises or lowers the body relative to the axle. Added lift changes ride height and the angle of the springs, which can affect how the vehicle handles and how the axle is located. Older Jeep frames and bodies may need a closer look at clearance once the height changes.
Because the shackle carries the spring’s load, its pivot and bushings should be in good condition before fitting. Lifting the vehicle also changes driveline and brake line geometry, so check those parts after the work. A careful inspection of the existing hardware is a practical first step before any shackle job.
- Check clearance at full travel
- Inspect factory bushings and bolts
- Re-check driveline and brake line angles
Specifications
| Brand | Daystar |
|---|---|
| Part number | KJ60002 |
| UPC | 814423011518 |
| Lift height | 1.5 inch front and rear |
| Style | Non-greaseable |
| Bushings | Factory bushings retained |
| Finish | Zinc plated |
| Quantity | Pair |
Vehicle fitment
It fits these Jeep CJ models: CJ3 (1959–1966, Base), CJ5 (1959–1975, Base and Renegade), CJ5A (1966–1968, Base), CJ6 (1959–1975, Base), CJ6A (1966–1968, Base), and Willys CJ-2 (1949), CJ-3 (1949–1958), CJ-5 (1955–1958) and CJ-6 (1956–1958).
The list does not cover the CJ7 or later Jeep models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Non-greaseable versions do not include hardware, so inspect the existing bolts and factory bushings for wear before fitting this pair. Support the axle and frame on jack stands before removing any shackle.
What’s included
A pair of non-greaseable Super Shackles with 1.5 inch lift for the front and rear.
Not included: Hardware.
