Daystar 0.5 Inch Lift Greasable Super Shackles – KJ60005

Daystar

Shop Jeep CJ7 Shackle Reversal Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1976–1986 Jeep CJ5, CJ7 and Scrambler models, rear position
  • 0.5 inch lift with a greasable design
  • Heavy-duty plate steel with a fully welded center bar
  • Greasable bolts and bushings not included
  • Part number KJ60005, sold in pairs

Description

Overview

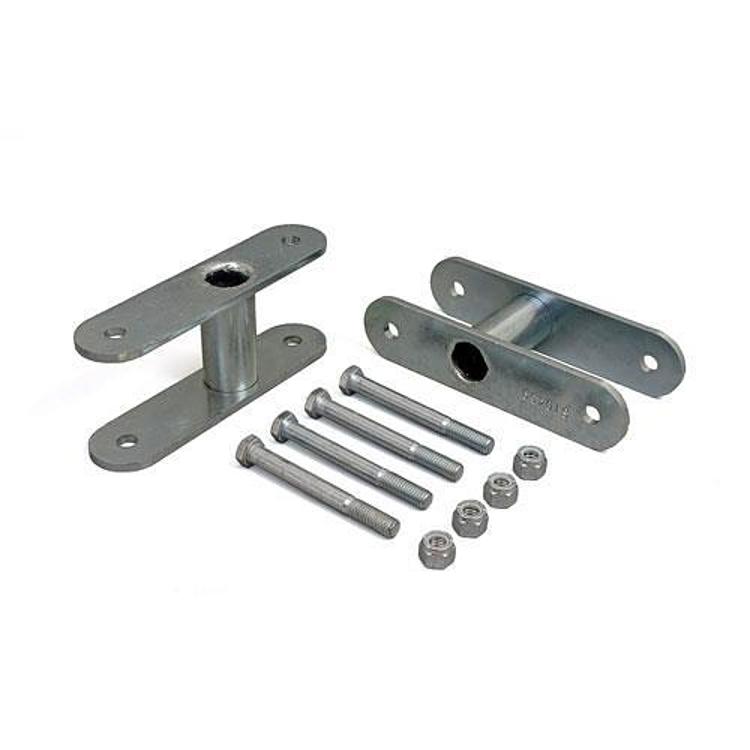

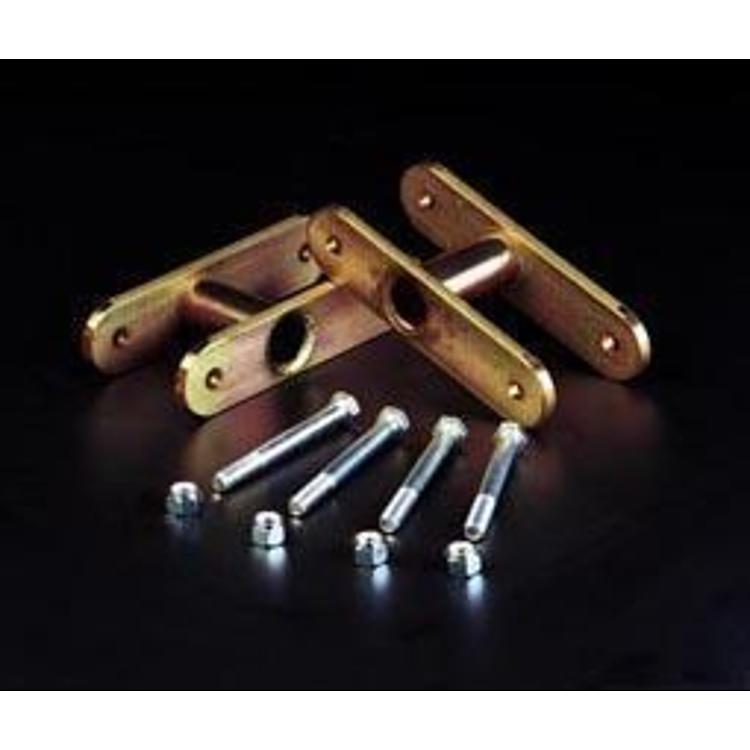

The Daystar KJ60005 is a greasable 0.5 inch lift Super Shackle for the rear of Jeep CJ5 (1976–1983), CJ7 (1976–1986) and Scrambler (1981–1985) models.

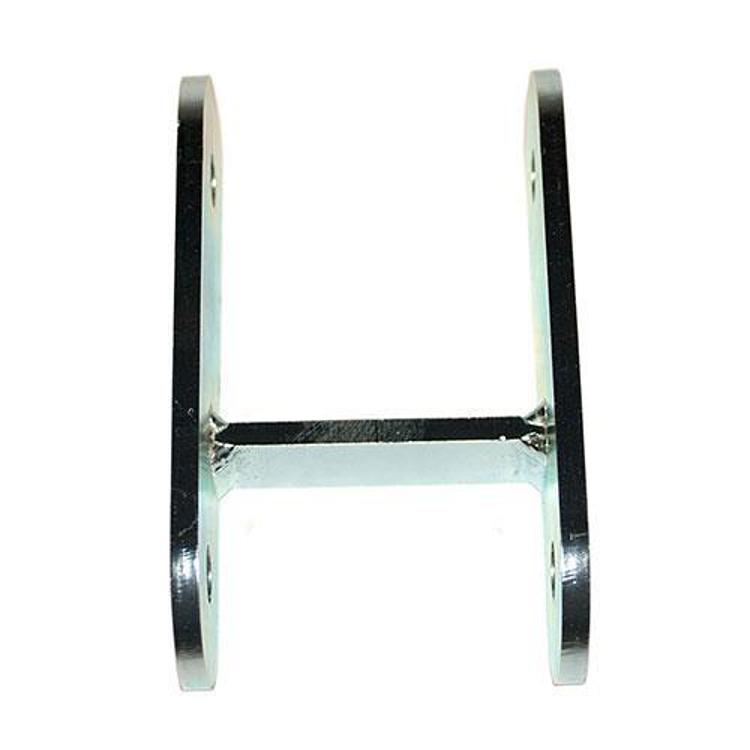

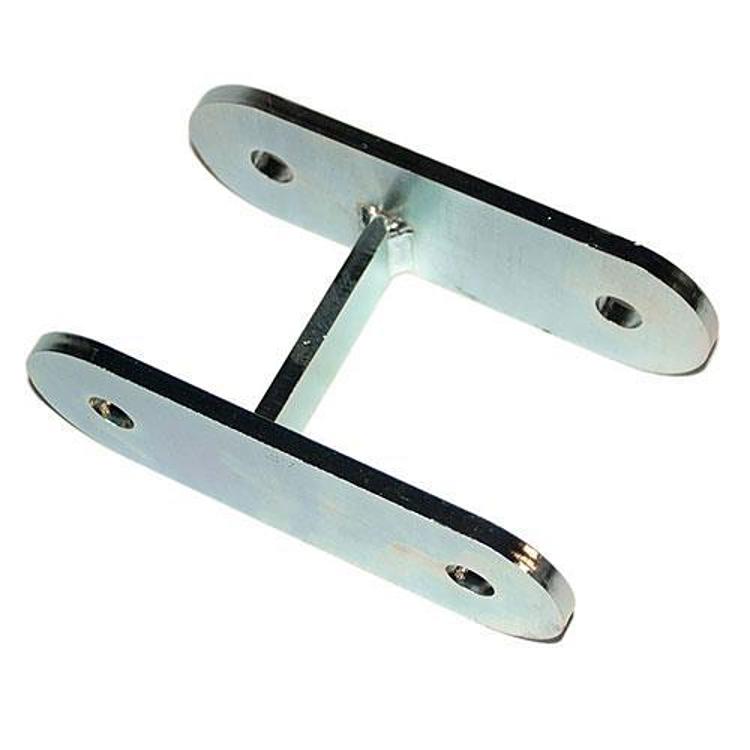

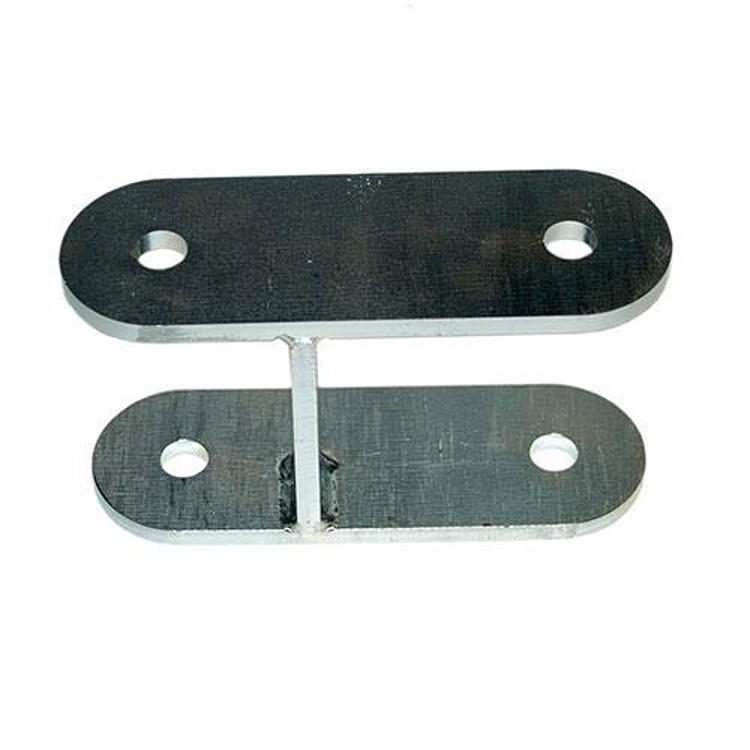

Daystar builds these shackles from heavy-duty plate steel with a fully welded center bar, which Daystar says reduces deflection and axle shift while cornering or when the suspension articulates. This rear-only, zinc-plated version is sold in pairs.

Key features

  • Greasable design, rear position only
  • Heavy-duty plate steel body
  • Fully welded center bar
  • Zinc-plated finish
  • Limited lifetime warranty from Daystar

Keeping greasable shackles working

Greasable shackles use grease fittings at the pivot so the bushing and bolt can be serviced without being replaced. Regular greasing keeps the pivot moving freely and reduces the squeaks and binding that come with dry bushings. Rear shackles see steady load from the leaf springs, so their pivots are worth checking at every service.

When a shackle is removed, inspect the bolt for wear and clean the bore before reinstalling. Heavy plate steel with a welded center bar holds up well when the pivot is maintained, but corrosion and grit can still wear the bushings. Keep the area around the fittings clean so grease reaches the pivot rather than hardened dirt.

  • Grease at each service interval
  • Clean the grease fittings before use
  • Inspect the bolt when the shackle is removed

Specifications

Brand Daystar
Part number KJ60005
UPC 814423011242
Lift height 0.5 inch
Position Rear
Style Greasable
Material Heavy-duty plate steel
Construction Fully welded center bar
Finish Zinc plated
Warranty Limited lifetime
Bolts and bushings Greasable bolts and bushings not included
Quantity Pair

Vehicle fitment

The KJ60005 fits the 1976–1983 Jeep CJ5 in Base, Golden Eagle, Laredo, Limited and Renegade trim, the 1976–1986 CJ7 in Base, Golden Eagle, Golden Hawk, Laredo, Limited and Renegade trim, and the 1981–1985 Scrambler in Base, Laredo, Renegade, SL and SR trim.

The list does not cover Wrangler or Cherokee models, or CJ models outside the years above. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Greasable bolts and bushings are not included, so inspect the existing hardware for wear before fitting the rear pair. Support the rear axle on jack stands before disconnecting any shackle.

What’s included

Rear Super Shackles, greasable version, sold as a pair.

Not included: Greasable bolts and bushings.

SKU: DAYKJ60005 Category:

Specification

Shipping weight 7.00 lbs
Package dimensions 10.00 × 6.00 × 4.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51976–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ71976–1986Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade
Jeep Scrambler1981–1985Base, Laredo, Renegade, SL, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Daystar KJ60005 fit a Jeep CJ7?

Yes, it fits the 1976–1986 Jeep CJ7 in the Base, Golden Eagle, Golden Hawk, Laredo, Limited and Renegade trims. It also fits the 1976–1983 CJ5 and the 1981–1985 Scrambler. Confirm your vehicle's year, model and trim before ordering.

Are greasable bolts and bushings included with the KJ60005?

No. Greasable bolts and bushings are not included with this part number. Check the bolts and bushings already on the vehicle for wear before fitting the pair of rear shackles, since they are not supplied.

What lift height does the KJ60005 provide?

The Daystar KJ60005 is a 0.5 inch lift shackle for the rear only. Its heavy-duty plate steel body has a fully welded center bar, and the product carries a limited lifetime warranty.

How often should greasable shackles be greased?

Grease them at regular service intervals and after water or mud exposure. Keeping the pivot lubricated helps prevent squeaking and binding, and wipe away excess grease to keep dirt out.

Can shackles be combined with other suspension parts?

Yes, but check how the shackle geometry interacts with the springs, bump stops and driveline. Re-check ride height and alignment after combining parts so the setup works as intended.
