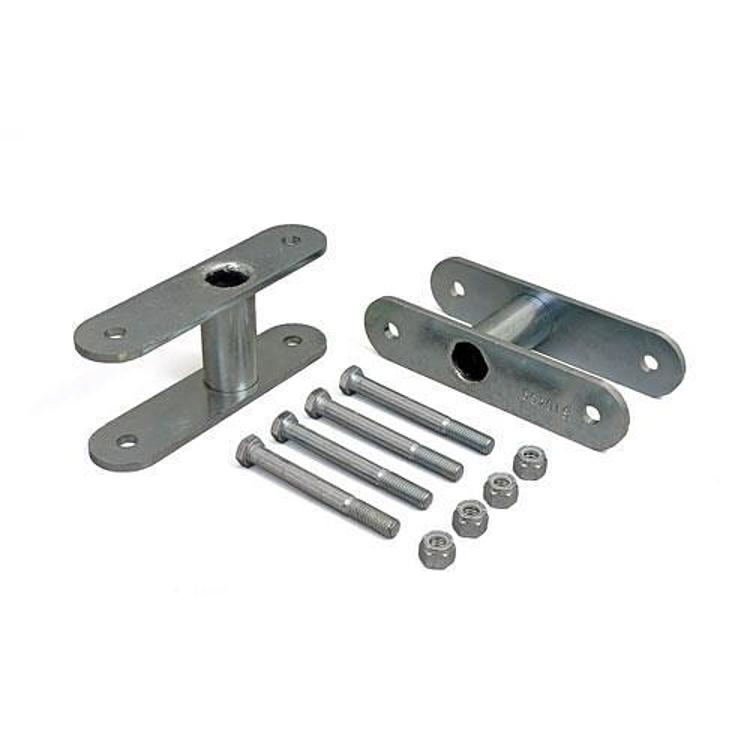

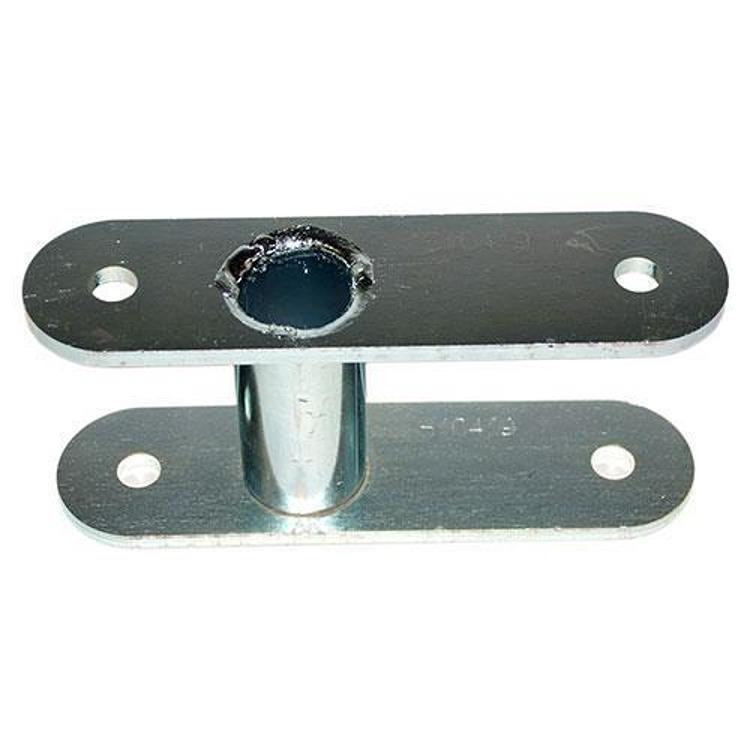

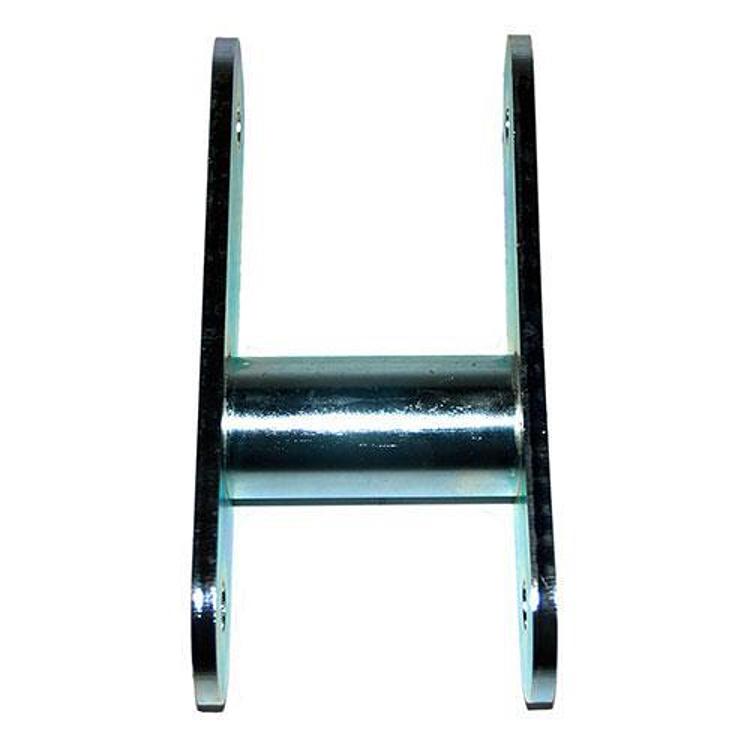

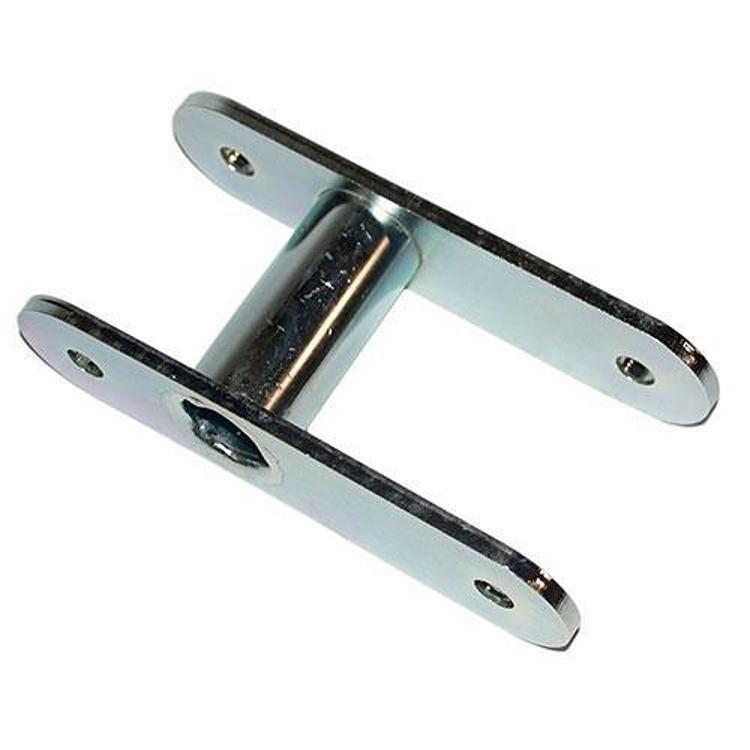

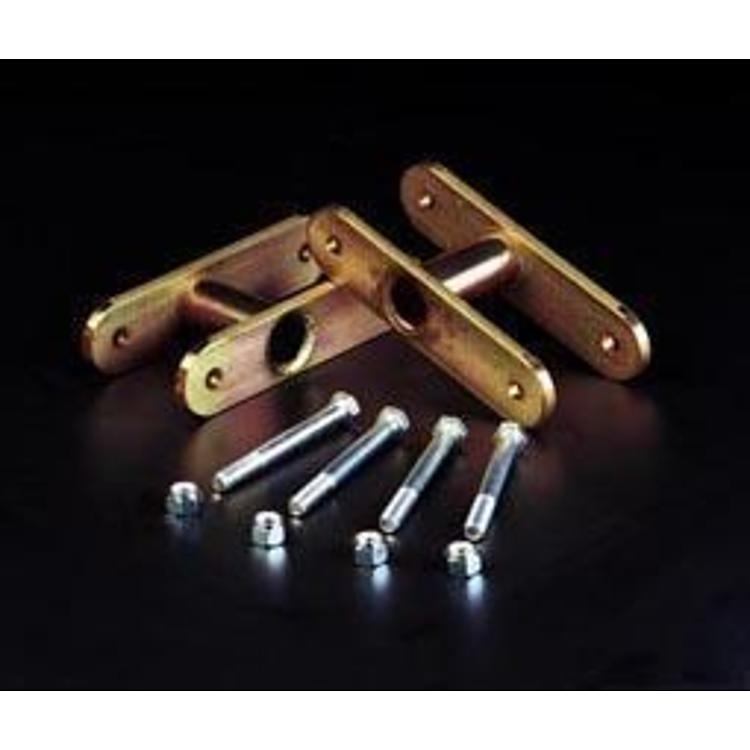

Daystar 0.5 Inch Lift Greasable Super Shackles – KJ60010

Daystar

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1987–1995 Jeep Wrangler (YJ) models
  • 0.5 inch front lift, sold as a pair, part number KJ60010
  • Heavy-duty plate steel with a fully welded center bar, zinc plated
  • Greasable bolts and bushings are not included

Description

Overview

The Daystar KJ60010 is a 0.5 inch lift front Super Shackle set, sold as a pair, for the 1987–1995 Jeep Wrangler (YJ). It raises the front suspension half an inch while replacing the factory shackles with a heavier-duty part.

Daystar builds these Super Shackles from heavy-duty plate steel with a fully welded center bar. That bar helps reduce deflection and axle shift during cornering and articulation, which matters most in off-road driving. Greasable bolts and bushings are not included with this part number.

Other versions of this shackle are offered for stock replacement height or up to 2-1/2 inch of lift. Choose this 0.5 inch set when that lift height is the one you need.

Key features

  • 0.5 inch lift for the front suspension
  • Heavy-duty plate steel construction
  • Fully welded center bar that Daystar says reduces deflection and axle shift
  • Heavier-duty construction than factory stamped shackles
  • Zinc plated finish
  • Sold as a pair
  • Covered by a limited lifetime warranty

Choosing a lift height

A front shackle lift raises the body relative to the axle, which changes spring angles and how the suspension handles bumps. Before buying, decide whether you need a small lift for clearance or a stock replacement for worn factory parts, since the two needs call for different shackles. Lift height also affects steering geometry and the length of brake lines and bump stops, so consider the whole front end.

Related parts often get replaced in the same job. Check the bump stops for contact after the lift, and inspect the front brake lines for stretch. Worn spring bushings and frame mounts are easier to address during the install than afterward, when the springs are already loaded.

  • Check bump stop clearance after installation
  • Inspect brake lines for stretch
  • Recheck the front alignment after the lift

Specifications

Brand Daystar
Part number KJ60010
UPC 814423011310
Lift height 0.5 inch
Position Front
Construction Heavy-duty plate steel with fully welded center bar
Finish Zinc plated
Quantity Sold as a pair
Greasable bolts and bushings Not included
Warranty Limited lifetime

Vehicle fitment

Daystar lists KJ60010 as a direct fit for the 1987–1995 Jeep Wrangler (YJ) in the Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims.

Coverage is limited to first-generation YJ Wranglers. The TJ, LJ, JK and JL Wrangler generations and the Cherokee XJ are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because a shackle lift changes suspension geometry, have driveline angles and front alignment checked after the new shackles are installed. Support the vehicle securely on jack stands before removing the factory shackles.

What’s included

The set is sold as a pair of front shackles.

Not included: greasable bolts and bushings.

SKU: DAYKJ60010 Category:

Specification

Shipping weight 9.00 lbs
Package dimensions 10.00 × 6.00 × 4.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Daystar KJ60010 fit my Jeep Wrangler YJ?

Yes, if your vehicle is a 1987–1995 Jeep Wrangler (YJ). It is a direct fit for that generation in the Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims. Confirm your vehicle's year, model and trim before ordering.

What lift height does the KJ60010 provide?

It provides a 0.5 inch lift for the front suspension. Stock replacement versions and versions with up to 2-1/2 inch of lift are available under other part numbers, so compare lift heights before choosing this set.

Are greasable bolts and bushings included with KJ60010?

No. The product highlights state that greasable bolts and bushings are not included with this part number. The shackles are sold as a pair and carry a limited lifetime warranty from Daystar.

Do shackle lifts need new bump stops or brake line extensions?

Some lifts call for these parts, because the suspension sits at a different height. Check the front brake lines and bump stops for stretch or contact after installation, and add extensions only if the vehicle needs them.

Is a shackle upgrade worth doing with worn bushings?

Worn shackle bushings or cracked factory shackles are a good reason to replace them. Installing new front shackles over worn bushings can leave play in the front end, so inspect the frame and spring eyes first.
