Dana Spicer Differential Bearing Set – 706988X

Dana Spicer

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear Dana 44 axle differential bearing set for the 1999–2004 Jeep Grand Cherokee (WJ)

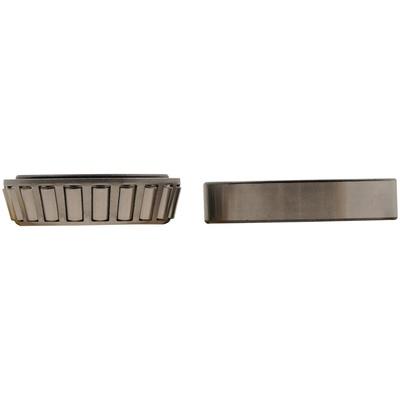

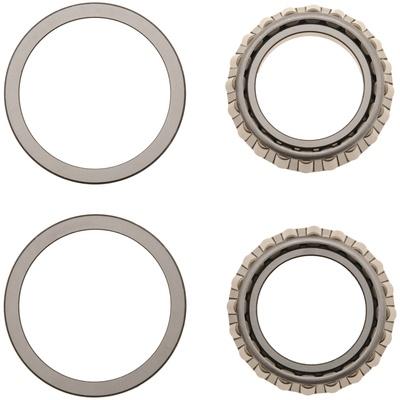

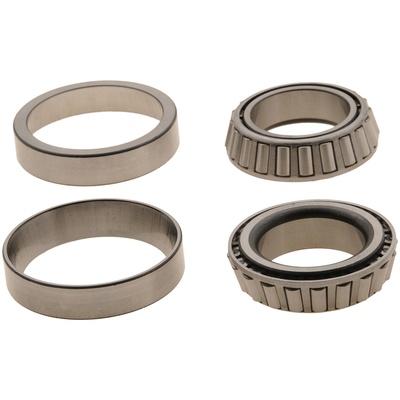

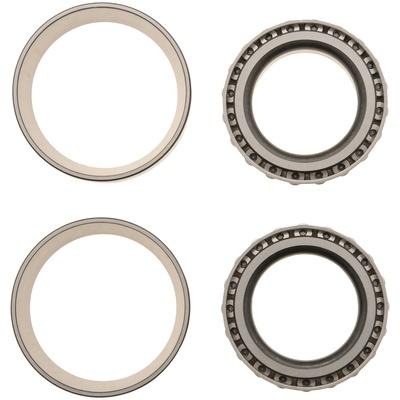

  • Includes 2 tapered roller bearings and 2 races
  • Dana Spicer part number 706988X
  • Steel construction, cone bore 1.781 in, housing bore 3.0625 in

Description

Overview

The Dana Spicer 706988X is a differential bearing set for the rear Dana 44 axle used on the 1999–2004 Jeep Grand Cherokee (WJ). The set includes two tapered roller bearings and two races, made of steel.

Parts from Dana Spicer’s genuine light vehicle axle line are built to original equipment standards. The fit covers Laredo, Limited, Overland, Special Edition and Sport trims of the 1999–2004 Grand Cherokee WJ.

Key features

  • Two tapered roller bearings and two races included
  • Built for the rear Dana 44 axle
  • Steel construction
  • Installs in the rear position.

Setting up a Dana 44 carrier

A bearing set for a differential carrier controls how the pinion and ring gears sit, and small changes in preload or shim position can cause noise or early wear. Before installation, clean the carrier bore, check the bearing seats for scoring, and confirm that the cups fit squarely. Gear lash and pattern should be checked after assembly.

Tapered roller bearings need a light, even preload rather than a tight clamp, so they are usually set with a preload gauge or by experienced technicians. Gear oil should be fresh and the correct type for the axle. Lubricant that smells burnt or carries metal points to damage that should be found before reassembly.

  • Clean carrier bore and bearing seats
  • Check cup seating and shim position
  • Inspect gears for pitting before reuse

Specifications

Brand Dana Spicer
Part number D/S706988X
Position Rear
Axle Dana 44 rear
Design Tapered roller bearing
Included 2 bearings and 2 races
Material Steel
Cone bore 1.781 in
Cone length 0.781 in
Cup length 0.656 in
Cup outside diameter 3.0625 in
Housing bore 3.0625 in
Width 0.843 in

Vehicle fitment

It fits the 1999–2004 Jeep Grand Cherokee WJ in the Laredo, Limited, Overland, Special Edition and Sport trims, with a rear Dana 44 axle.

The list does not include the 2005–2008 Grand Cherokee (WK), the 1996–1998 Grand Cherokee (ZJ) or any Wrangler models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Bearing preload and carrier setup are part of this job, so a technician familiar with Dana 44 rear axles should install the set. Support the vehicle securely on stands while working under it.

What’s included

Two bearings and two races are included.

Not included: the differential carrier, ring and pinion gears, and axle seals are not part of this set.

Fitment

VehicleYearsTrims
Jeep Grand Cherokee (WJ)1999–2004Laredo, Limited, Overland, Special Edition, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Dana Spicer 706988X fit a Dana 44 rear axle?

Yes, for a rear Dana 44 axle on the 1999–2004 Jeep Grand Cherokee WJ. Confirm the year, model and trim match your vehicle before ordering, since fit covers WJ trims only.

What is included with the Dana Spicer 706988X?

The set includes two bearings and two races. Seals, a carrier, ring and pinion gears and other components are not part of this set.

What are the cone and cup dimensions?

Cone bore 1.781 in, cone length 0.781 in, cup length 0.656 in, cup outside diameter 3.0625 in, housing bore 3.0625 in and width 0.843 in.

What should be checked on the old bearings before reuse?

Inspect the cones and cups for pitting, heat discoloration or flaking. Replace any damaged race or roller as a pair. Check the carrier bore and bearing seats for wear as well, since a worn seat can let a new bearing spin or shift.
